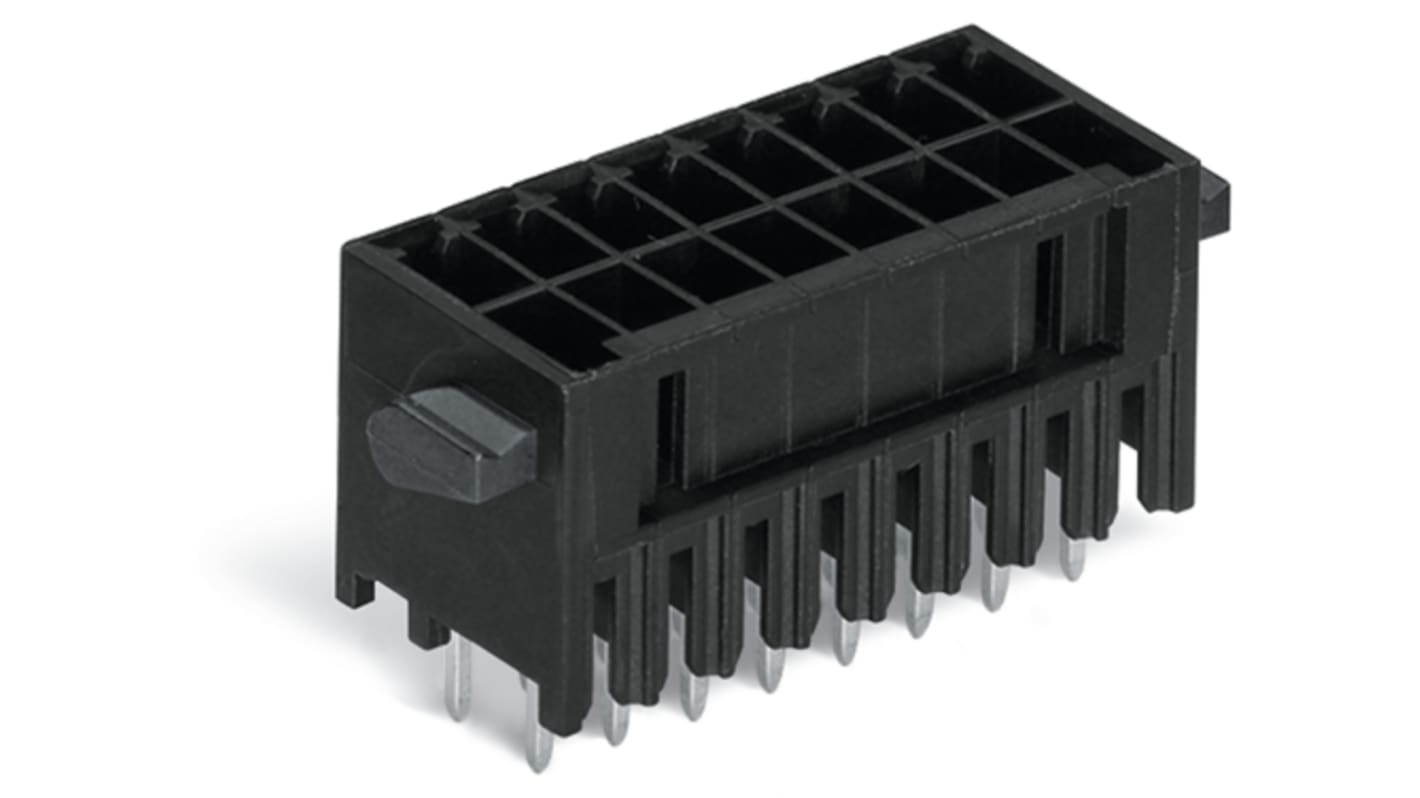

WAGO 713 Series Straight Through Hole Header, 12 Contact(s), 3.5 mm Pitch, 2 Row(s), Shrouded
- RS Stock No.:
- 224-179
- Mfr. Part No.:
- 713-1406/037-000
- Brand:
- WAGO
Subtotal (1 box of 25 units)*
£83.83
(exc. VAT)
£100.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 9 unit(s) shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £83.83 | £3.353 |
*price indicative
- RS Stock No.:
- 224-179
- Mfr. Part No.:
- 713-1406/037-000
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Series | 713 | |
| Product Type | Header | |
| Pitch | 3.5mm | |
| Current | 10A | |
| Housing Material | Polyphthalamide | |
| Number of Contacts | 12 | |
| Number of Rows | 2 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Connector System | MCS | |
| Contact Material | Electrolytic Copper | |
| Contact Plating | Tin | |
| Termination Type | Solder | |
| Row Pitch | 3.5mm | |
| Minimum Operating Temperature | 60°C | |
| Tail Pin Length | 3.8mm | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | RoHS | |
| Voltage | 250 V | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Series 713 | ||
Product Type Header | ||
Pitch 3.5mm | ||
Current 10A | ||
Housing Material Polyphthalamide | ||
Number of Contacts 12 | ||
Number of Rows 2 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Connector System MCS | ||
Contact Material Electrolytic Copper | ||
Contact Plating Tin | ||
Termination Type Solder | ||
Row Pitch 3.5mm | ||
Minimum Operating Temperature 60°C | ||
Tail Pin Length 3.8mm | ||
Contact Gender Male | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals RoHS | ||
Voltage 250 V | ||
- COO (Country of Origin):
- PL
The Wago THT Male Header is expertly designed to enhance connectivity in a variety of electrical applications. This product features a robust two row configuration, ensuring reliable performance with 12 poles at a 3.5 mm pin spacing. Ideal for modern control systems, the header guarantees a secure connection that is 100% safeguarded against mismating. Crafted from high quality, THT compatible insulation material, it supports lead free reflow soldering, making it perfect for environmentally conscious projects.
Designed for horizontal or vertical mounting to suit various setups
Moulded from THT compatible insulation material for easy lead free soldering
Separated pin slots prevent potential damage and ensure touch proof conditions
Compatible with various configurations through available coding options
Constructed to meet stringent compliance standards for electrical components
