WAGO 734 Series Angled PCB Header, 24 Contact(s), 3.5 mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 223-766
- Mfr. Part No.:
- 734-412/001-000
- Brand:
- WAGO
Subtotal (1 box of 50 units)*
£381.78
(exc. VAT)
£458.14
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £381.78 | £7.636 |
*price indicative
- RS Stock No.:
- 223-766
- Mfr. Part No.:
- 734-412/001-000
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Series | 734 | |
| Product Type | Header | |
| Pitch | 3.5mm | |
| Current | 10A | |
| Housing Material | Polyamide 66 | |
| Number of Contacts | 24 | |
| Number of Rows | 2 | |
| Orientation | Angled | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | PCB | |
| Connector System | MCS | |
| Contact Plating | Tin | |
| Contact Material | Electrolytic Copper | |
| Row Pitch | 3.5mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | 60°C | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 3.6mm | |
| Contact Gender | Male | |
| Standards/Approvals | RoHS | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Series 734 | ||
Product Type Header | ||
Pitch 3.5mm | ||
Current 10A | ||
Housing Material Polyamide 66 | ||
Number of Contacts 24 | ||
Number of Rows 2 | ||
Orientation Angled | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type PCB | ||
Connector System MCS | ||
Contact Plating Tin | ||
Contact Material Electrolytic Copper | ||
Row Pitch 3.5mm | ||
Termination Type Solder | ||
Minimum Operating Temperature 60°C | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 3.6mm | ||
Contact Gender Male | ||
Standards/Approvals RoHS | ||
Voltage 160 V | ||
- COO (Country of Origin):
- DE

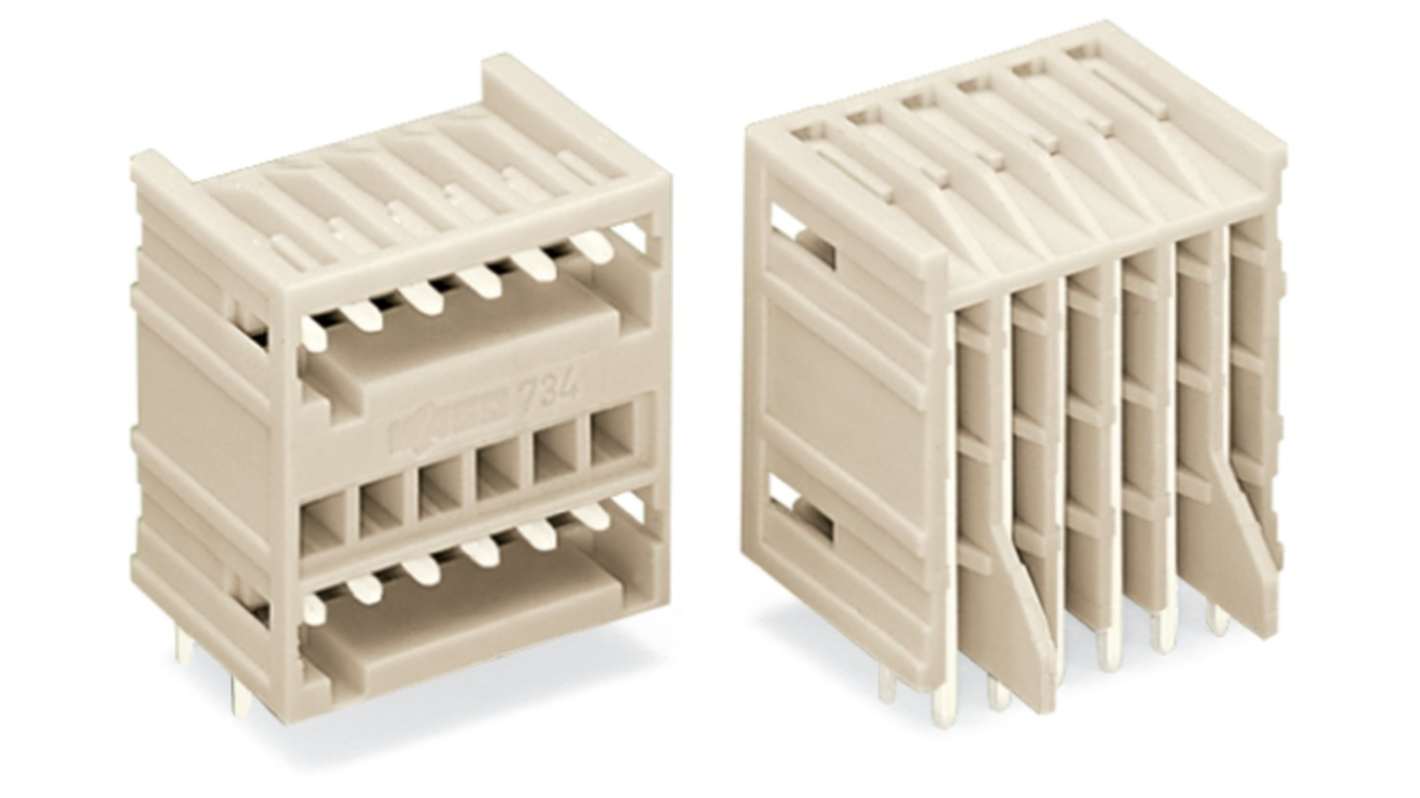

The Wago THT Double Deck Male Header is designed for quality connections in electronic applications. Engineered with a robust design, it incorporates 100% protection against mismating, ensuring reliability in demanding environments. With a versatile pin spacing of 3.5 mm, this connector facilitates easy PCB mounting, whether in a horizontal or vertical orientation. Crafted from high grade materials, the header is available in a subtle light grey colour, making it suitable for various electronic designs. This product caters to discerning engineers looking for dependable performance and compliance with safety standards.
Customizable coding options for tailored functionality
Environmentally compliant materials support sustainable practices
Compact size enables efficient use of PCB real estate
Rated for high voltages ensuring versatility in applications
Light grey colour provides a subtle aesthetic for various designs
