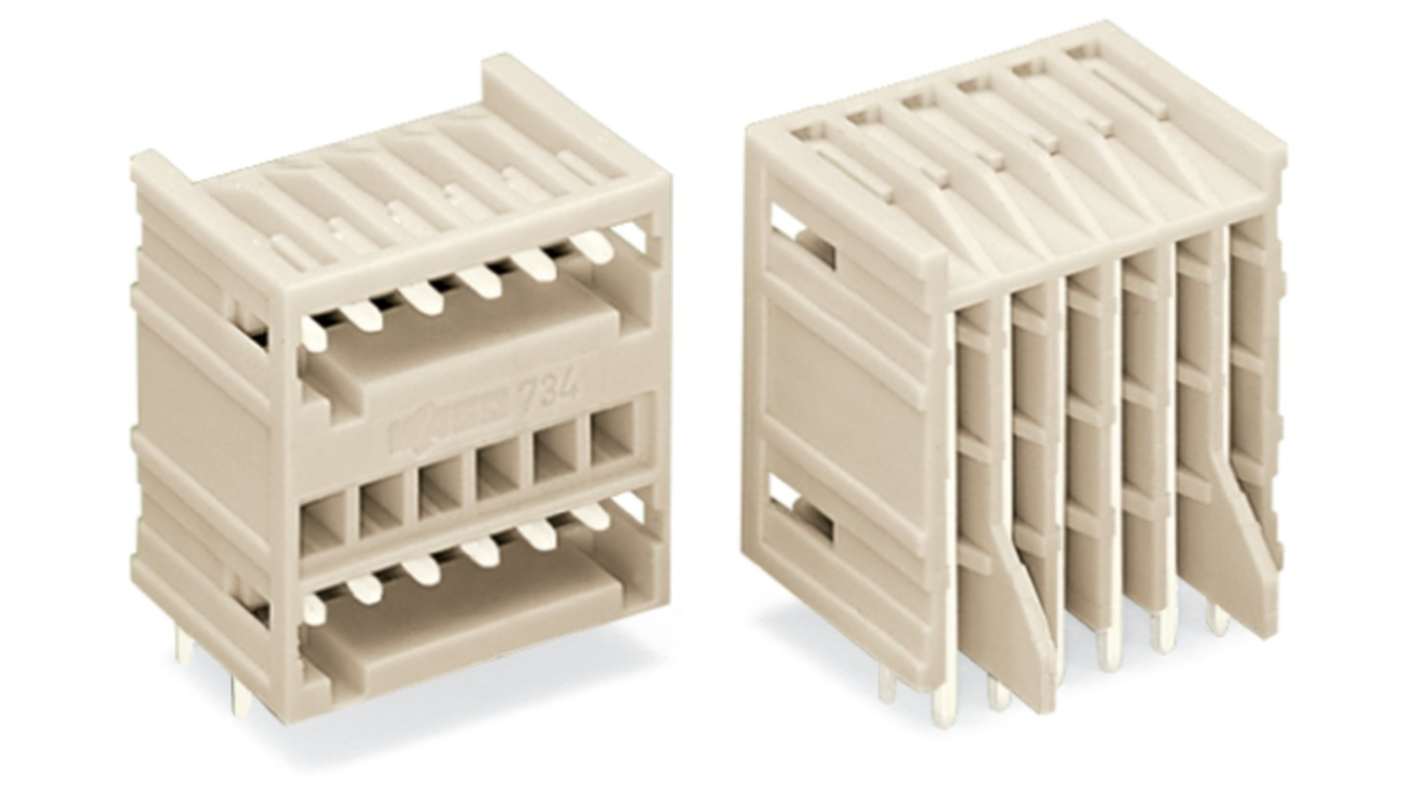

WAGO 734 Series Angled PCB Header, 18 Contact(s), 3.5 mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 223-760
- Mfr. Part No.:
- 734-409/001-000
- Brand:
- WAGO
Subtotal (1 box of 50 units)*
£286.34
(exc. VAT)
£343.61
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £286.34 | £5.727 |
*price indicative
- RS Stock No.:
- 223-760
- Mfr. Part No.:
- 734-409/001-000
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Series | 734 | |
| Product Type | Header | |
| Pitch | 3.5mm | |
| Current | 10A | |
| Housing Material | Polyamide 66 | |
| Number of Contacts | 18 | |
| Number of Rows | 2 | |
| Orientation | Angled | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | PCB | |
| Connector System | MCS | |
| Contact Material | Electrolytic Copper | |
| Contact Plating | Tin | |
| Minimum Operating Temperature | 60°C | |
| Termination Type | Solder | |
| Row Pitch | 3.5mm | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 3.6mm | |
| Mating Pin Length | 3.6mm | |
| Standards/Approvals | RoHS | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Series 734 | ||
Product Type Header | ||
Pitch 3.5mm | ||
Current 10A | ||
Housing Material Polyamide 66 | ||
Number of Contacts 18 | ||
Number of Rows 2 | ||
Orientation Angled | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type PCB | ||
Connector System MCS | ||
Contact Material Electrolytic Copper | ||
Contact Plating Tin | ||
Minimum Operating Temperature 60°C | ||
Termination Type Solder | ||
Row Pitch 3.5mm | ||
Contact Gender Male | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 3.6mm | ||
Mating Pin Length 3.6mm | ||
Standards/Approvals RoHS | ||
Voltage 160 V | ||
- COO (Country of Origin):
- DE
The Wago THT Double Deck Male Header is engineered for excellence, ensuring a robust and reliable connection for your electronic applications. This connector features an angled design, making it ideal for versatile PCB mounting, whether straight or angled. With a pin spacing of just 3.5 mm and comprehensive protection against mismating, this solution guarantees a secure fit every time. Its lightweight yet durable structure, complemented by a tasteful light grey finish, adds a touch of modern aesthetics to your projects.
Constructed with high quality materials that meet stringent safety standards
Supports a wide temperature range ensuring reliability in extreme conditions
Solder pin arrangement allows for efficient PCB integration
Compatible with a range of accessories for added functionality
