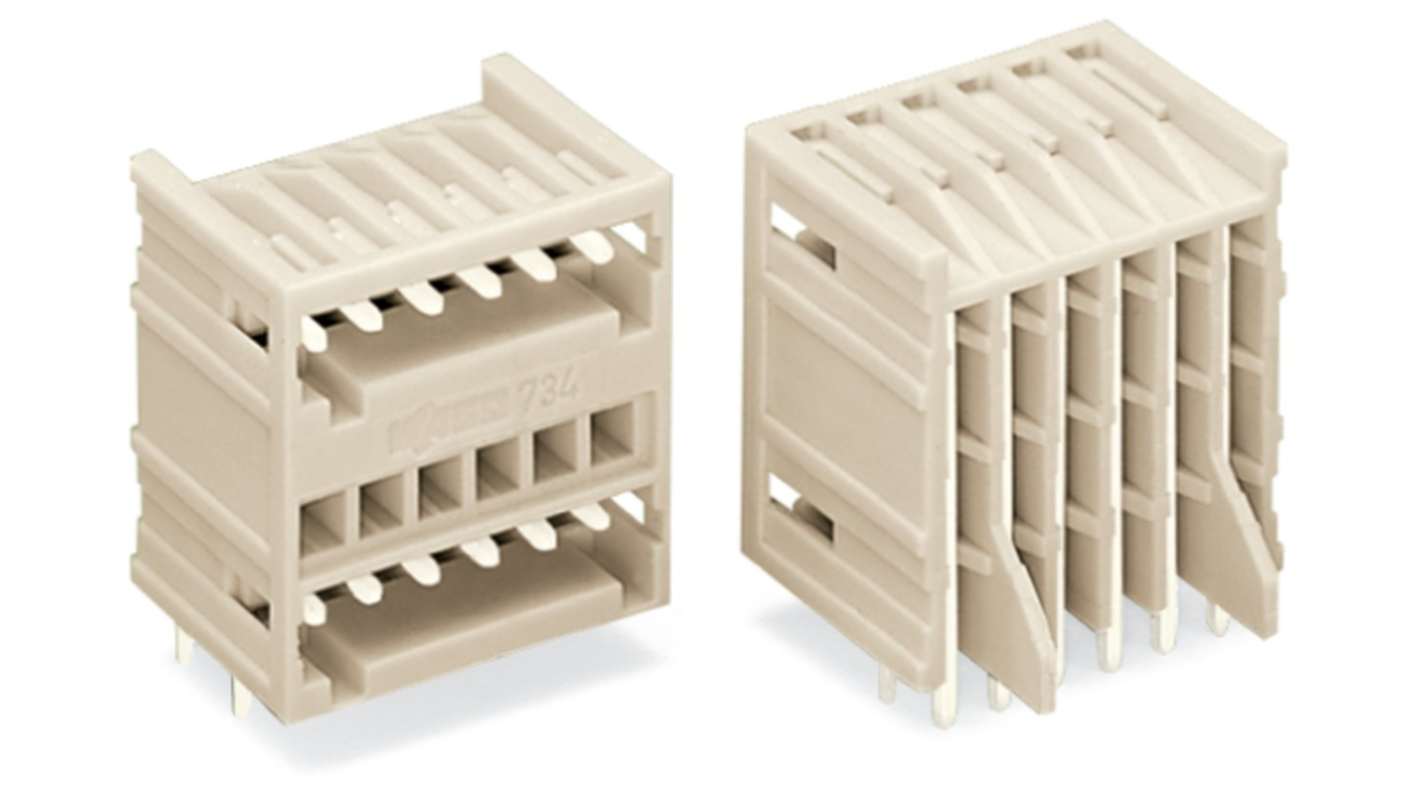

WAGO 734 Series Angled PCB Header, 6 Contact(s), 3.5 mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 223-743
- Mfr. Part No.:
- 734-403/001-000
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£200.99
(exc. VAT)
£241.19
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £200.99 | £2.01 |
*price indicative
- RS Stock No.:
- 223-743
- Mfr. Part No.:
- 734-403/001-000
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Series | 734 | |
| Product Type | Header | |
| Current | 10A | |
| Pitch | 3.5mm | |
| Housing Material | Polyamide 66 | |
| Number of Contacts | 6 | |
| Number of Rows | 2 | |
| Orientation | Angled | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | PCB | |
| Connector System | MCS | |
| Contact Plating | Tin | |
| Contact Material | Electrolytic Copper | |
| Row Pitch | 3.5mm | |
| Termination Type | Through-Hole Reflow (THR) Soldering | |
| Minimum Operating Temperature | 60°C | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 3.6mm | |
| Contact Gender | Male | |
| Standards/Approvals | RoHS | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Series 734 | ||
Product Type Header | ||
Current 10A | ||
Pitch 3.5mm | ||
Housing Material Polyamide 66 | ||
Number of Contacts 6 | ||
Number of Rows 2 | ||
Orientation Angled | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type PCB | ||
Connector System MCS | ||
Contact Plating Tin | ||
Contact Material Electrolytic Copper | ||
Row Pitch 3.5mm | ||
Termination Type Through-Hole Reflow (THR) Soldering | ||
Minimum Operating Temperature 60°C | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 3.6mm | ||
Contact Gender Male | ||
Standards/Approvals RoHS | ||
Voltage 160 V | ||
- COO (Country of Origin):
- DE
The Wago THT Double Deck Male Header offers an innovative connection solution designed for enhanced functionality in electronic applications. With its robust construction and angled solder pins, it facilitates seamless PCB mounting while ensuring complete protection against mismating. This versatile product features a compact design and is engineered to reliably handle multiple connections, making it an ideal choice for complex assembly requirements.
Designed with anti rotation protection for stable installations
Includes coding options to prevent mismating
Provides variable PCB mounting options for tailored configurations
Manufactured using flame resistant materials for added safety
Meets stringent environmental compliance regulations
