WAGO 734 Series Angled PCB Header, 24 Contact(s), 3.81 mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 223-318
- Mfr. Part No.:
- 734-442/001-000
- Brand:
- WAGO
Subtotal (1 box of 50 units)*
£381.78
(exc. VAT)
£458.14
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £381.78 | £7.636 |
*price indicative
- RS Stock No.:
- 223-318
- Mfr. Part No.:
- 734-442/001-000
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Series | 734 | |
| Product Type | Header | |
| Pitch | 3.81mm | |
| Current | 10A | |
| Housing Material | Polyamide 66 | |
| Number of Contacts | 24 | |
| Number of Rows | 2 | |
| Orientation | Angled | |
| Shrouded/Unshrouded | Unshrouded | |
| Connector System | MCS | |
| Mount Type | PCB | |
| Contact Plating | Tin | |
| Contact Material | Electrolytic Copper | |
| Minimum Operating Temperature | 60°C | |
| Row Pitch | 3.81mm | |
| Termination Type | Through-Hole Reflow (THR) Soldering | |
| Maximum Operating Temperature | 100°C | |
| Contact Gender | Male | |
| Tail Pin Length | 3.6mm | |
| Standards/Approvals | RoHS | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Series 734 | ||
Product Type Header | ||
Pitch 3.81mm | ||
Current 10A | ||
Housing Material Polyamide 66 | ||
Number of Contacts 24 | ||
Number of Rows 2 | ||
Orientation Angled | ||
Shrouded/Unshrouded Unshrouded | ||
Connector System MCS | ||
Mount Type PCB | ||
Contact Plating Tin | ||
Contact Material Electrolytic Copper | ||
Minimum Operating Temperature 60°C | ||
Row Pitch 3.81mm | ||
Termination Type Through-Hole Reflow (THR) Soldering | ||
Maximum Operating Temperature 100°C | ||
Contact Gender Male | ||
Tail Pin Length 3.6mm | ||
Standards/Approvals RoHS | ||
Voltage 160 V | ||
- COO (Country of Origin):
- DE

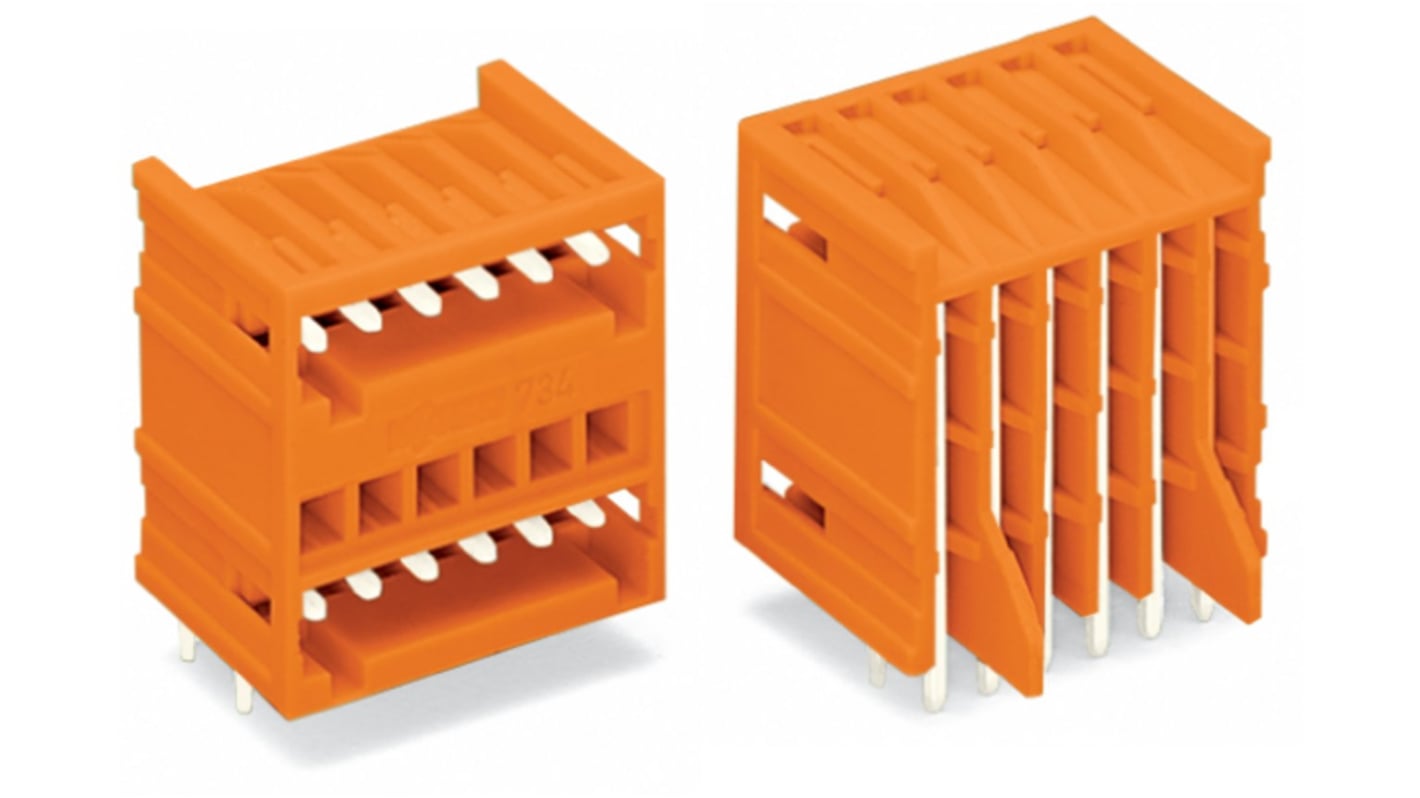

The Wago THT Double Deck Male Header is designed for versatile PCB mounting, ensuring secure and reliable connections. Ideal for applications requiring a compact solution, the product features a pin spacing of 3.81 mm, accommodating 24 poles. The male connector not only offers a robust design with full protection against mismating but also presents options for variable coding, making it adaptable to various connection needs. Whether for horizontal or vertical installations, its performance is uncompromised, proudly showcasing a colour coded orange finish that enhances visibility.
Built from high quality polyamide for enhanced durability
Complements a range of accessories for custom configurations
Supported by extensive approvals for marine applications ensuring reliability
