WAGO 734 Series Angled PCB Header, 24 Contact(s), 3.81 mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 223-316
- Mfr. Part No.:
- 734-442
- Brand:
- WAGO
Subtotal (1 box of 50 units)*
£381.78
(exc. VAT)
£458.14
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £381.78 | £7.636 |
*price indicative
- RS Stock No.:
- 223-316
- Mfr. Part No.:
- 734-442
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Series | 734 | |
| Product Type | Header | |
| Pitch | 3.81mm | |
| Current | 10A | |
| Number of Contacts | 24 | |
| Housing Material | Polyamide 66 | |
| Number of Rows | 2 | |
| Orientation | Angled | |
| Shrouded/Unshrouded | Unshrouded | |
| Connector System | MCS | |
| Mount Type | PCB | |
| Contact Plating | Tin | |
| Contact Material | Electrolytic Copper | |
| Row Pitch | 3.81mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | 60°C | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 3.6mm | |
| Contact Gender | Male | |
| Standards/Approvals | RoHS | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Series 734 | ||
Product Type Header | ||
Pitch 3.81mm | ||
Current 10A | ||
Number of Contacts 24 | ||
Housing Material Polyamide 66 | ||
Number of Rows 2 | ||
Orientation Angled | ||
Shrouded/Unshrouded Unshrouded | ||
Connector System MCS | ||
Mount Type PCB | ||
Contact Plating Tin | ||
Contact Material Electrolytic Copper | ||
Row Pitch 3.81mm | ||
Termination Type Solder | ||
Minimum Operating Temperature 60°C | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 3.6mm | ||
Contact Gender Male | ||
Standards/Approvals RoHS | ||
Voltage 160 V | ||
- COO (Country of Origin):
- DE

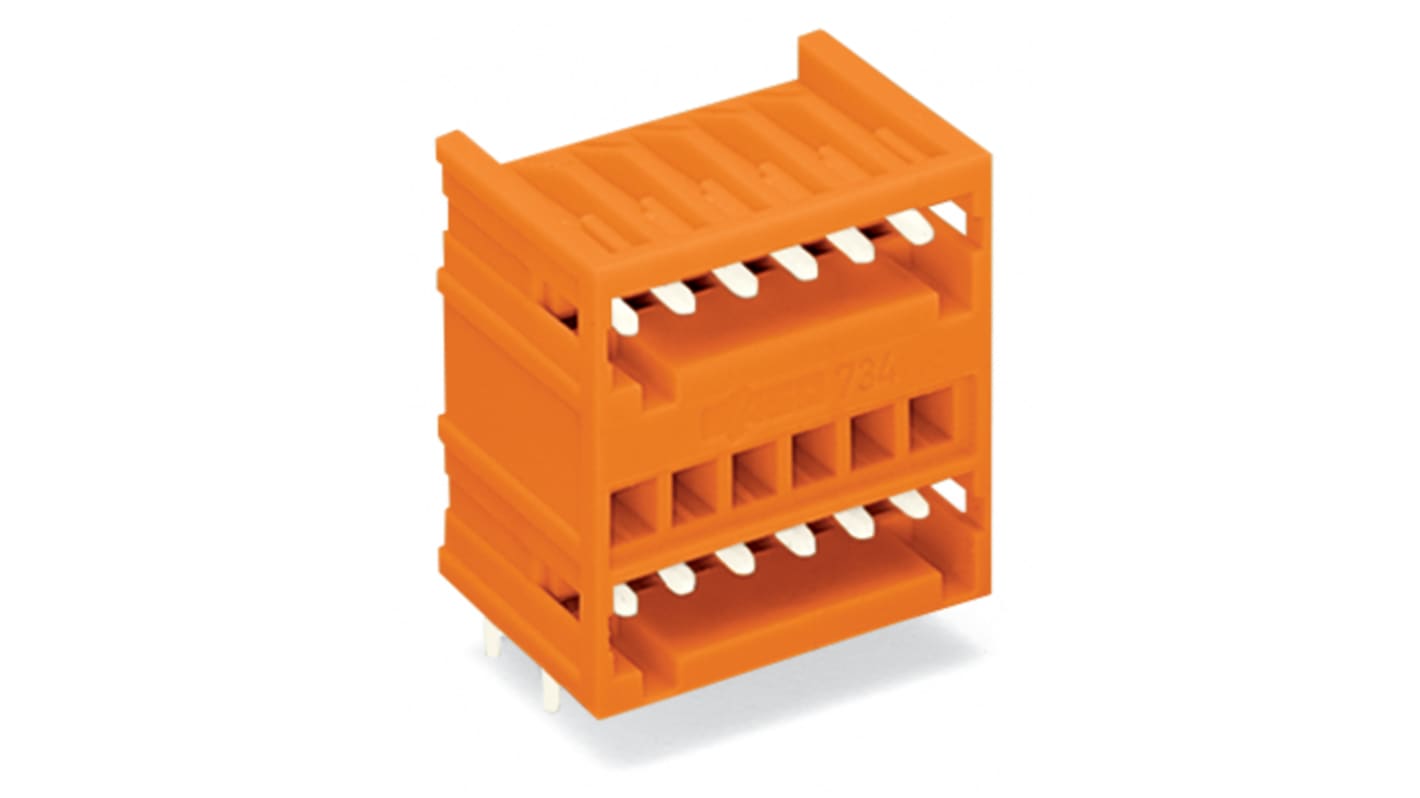

The Wago THT Double Deck Male Header epitomises precision and reliability in connection technology. Designed for seamless integration, it boasts a robust construction ideal for both horizontal and vertical PCB mounting. This component is meticulously engineered with a spacing of 3.81 mm between pins, ensuring compatibility with a variety of applications. The ingenious design protects against mismating, allowing only connectors with matching pole numbers to couple, thereby providing peace of mind in critical environments.
Flammability class V0 ensures safety in hazardous applications
Compact dimensions allow easy integration into space restricted designs
Compliant with RoHS regulations demonstrating environmental responsibility
Available in multiple pole numbers to suit diverse electrical needs
Lightweight design facilitates straightforward handling and assembly
