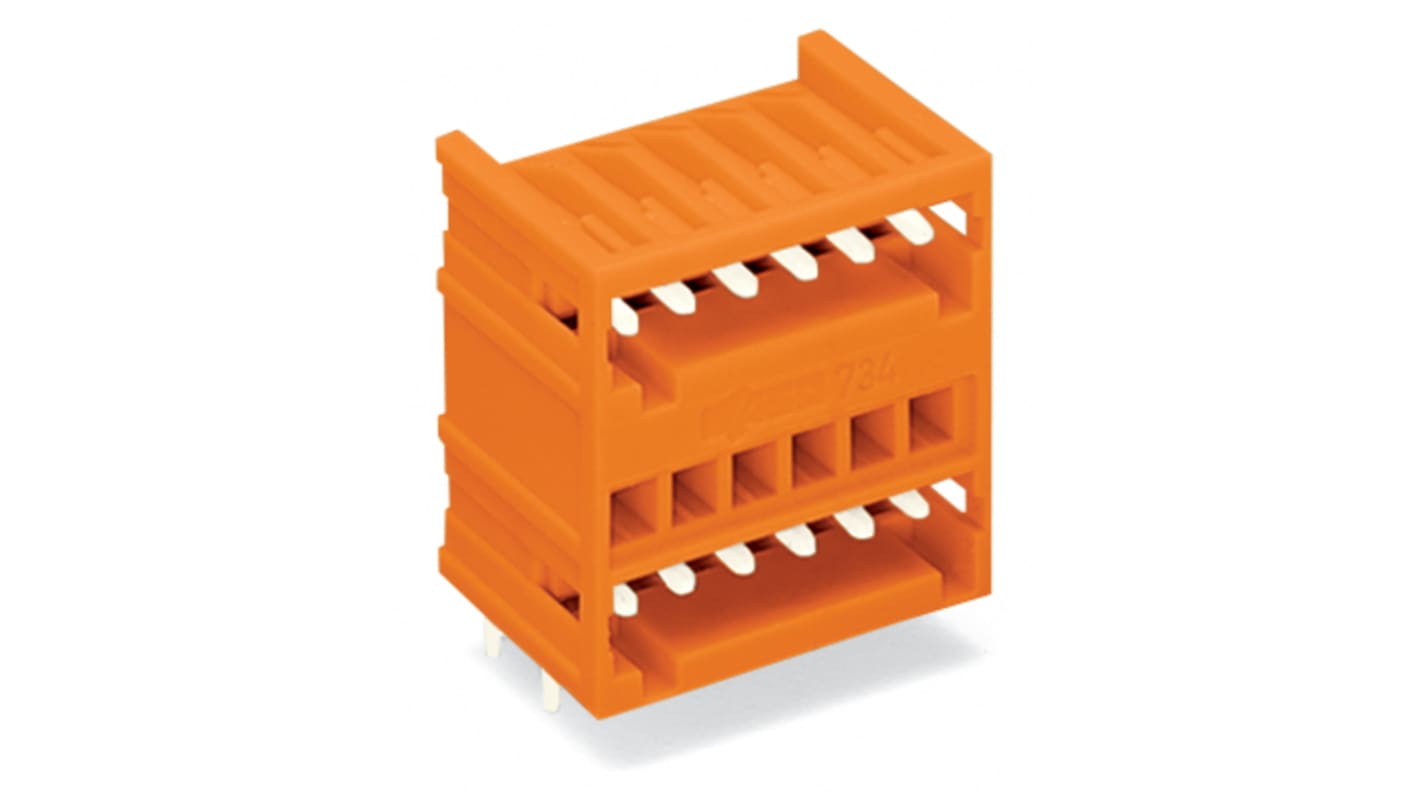

WAGO 734 Series Angled PCB Header, 18 Contact(s), 3.81 mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 223-311
- Mfr. Part No.:
- 734-439
- Brand:
- WAGO
Subtotal (1 box of 50 units)*
£286.34
(exc. VAT)
£343.61
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £286.34 | £5.727 |
*price indicative
- RS Stock No.:
- 223-311
- Mfr. Part No.:
- 734-439
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Series | 734 | |
| Product Type | Header | |
| Pitch | 3.81mm | |
| Current | 10A | |
| Housing Material | Polyamide 66 | |
| Number of Contacts | 18 | |
| Number of Rows | 2 | |
| Orientation | Angled | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | PCB | |
| Connector System | MCS | |
| Contact Plating | Tin | |
| Contact Material | Electrolytic Copper | |
| Row Pitch | 3.81mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | 60°C | |
| Contact Gender | Male | |
| Tail Pin Length | 3.6mm | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | RoHS | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Series 734 | ||
Product Type Header | ||
Pitch 3.81mm | ||
Current 10A | ||
Housing Material Polyamide 66 | ||
Number of Contacts 18 | ||
Number of Rows 2 | ||
Orientation Angled | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type PCB | ||
Connector System MCS | ||
Contact Plating Tin | ||
Contact Material Electrolytic Copper | ||
Row Pitch 3.81mm | ||
Termination Type Solder | ||
Minimum Operating Temperature 60°C | ||
Contact Gender Male | ||
Tail Pin Length 3.6mm | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals RoHS | ||
Voltage 160 V | ||
- COO (Country of Origin):
- DE
The Wago THT Double Deck Male Header offers a versatile and reliable connection solution, expertly designed for smooth integration into various applications. Its angled structure ensures easy access while safeguarding against mismating, making it the ideal choice for both horizontal and vertical PCB mounting. Capable of accommodating 18 poles, this connector boasts a pin spacing of 3.81 mm for enhanced compatibility with existing setups. Crafted for durability, it features a robust construction that maintains high performance across a wide temperature range, ensuring dependable functionality in challenging conditions.
Mismating protection guarantees connection reliability
Variable coding technology adds versatility for customised applications
Robust materials ensure long lasting durability and performance
Flammability class V0 for enhanced safety compliance
Lightweight design facilitates effortless installations
