WAGO 734 Series Angled PCB Header, 8 Contact(s), 3.81 mm Pitch, 2 Row(s), Unshrouded
- RS Stock No.:
- 223-299
- Mfr. Part No.:
- 734-434
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£257.55
(exc. VAT)
£309.06
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £257.55 | £2.576 |
*price indicative
- RS Stock No.:
- 223-299
- Mfr. Part No.:
- 734-434
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | Header | |
| Series | 734 | |
| Pitch | 3.81mm | |
| Current | 10A | |
| Number of Contacts | 8 | |
| Housing Material | Polyamide 66 | |
| Number of Rows | 2 | |
| Orientation | Angled | |
| Shrouded/Unshrouded | Unshrouded | |
| Mount Type | PCB | |
| Connector System | MCS | |
| Contact Material | Electrolytic Copper | |
| Contact Plating | Tin | |
| Termination Type | Solder | |
| Minimum Operating Temperature | 60°C | |
| Row Pitch | 3.81mm | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 3.6mm | |
| Contact Gender | Male | |
| Standards/Approvals | RoHS | |
| Voltage | 160 V | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type Header | ||
Series 734 | ||
Pitch 3.81mm | ||
Current 10A | ||
Number of Contacts 8 | ||
Housing Material Polyamide 66 | ||
Number of Rows 2 | ||
Orientation Angled | ||
Shrouded/Unshrouded Unshrouded | ||
Mount Type PCB | ||
Connector System MCS | ||
Contact Material Electrolytic Copper | ||
Contact Plating Tin | ||
Termination Type Solder | ||
Minimum Operating Temperature 60°C | ||
Row Pitch 3.81mm | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 3.6mm | ||
Contact Gender Male | ||
Standards/Approvals RoHS | ||
Voltage 160 V | ||
- COO (Country of Origin):
- DE

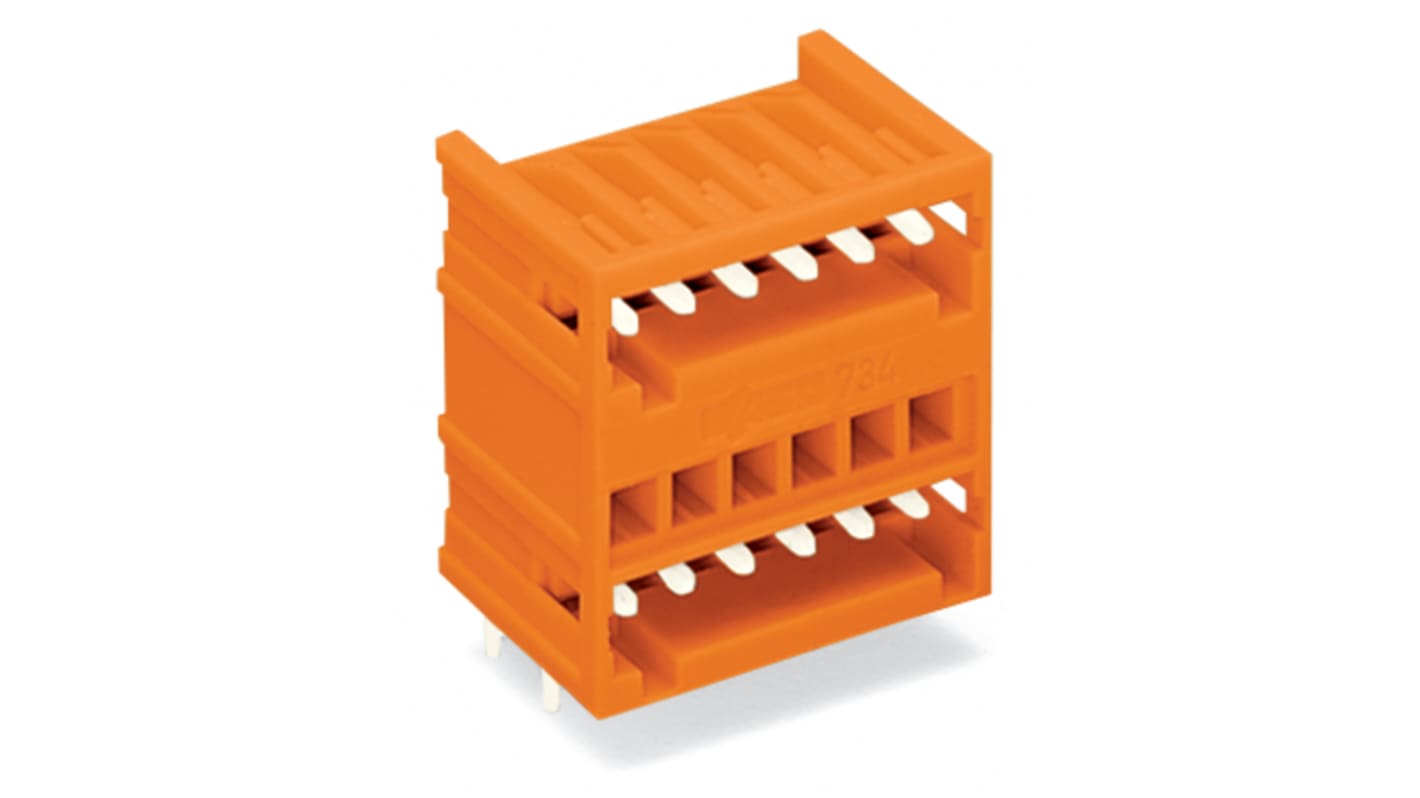

The Wago THT Double Deck Male Header is designed for versatility in PCB mounting, offering both horizontal and vertical installation options. This innovative connector features a robust construction that ensures 100% protection against mismating, enhancing reliability in electrical connections. Its compact dimensions and effective pin spacing facilitate seamless integration into densely packed assemblies, making it a preferred choice among engineers and designers for efficient design layouts.
Includes options for variable coding to prevent mismating
Designed to withstand harsh environmental conditions
Manufactured with high quality materials for enhanced durability
Offers a lightweight body without compromising strength
Suitable for use in multiple application environments
