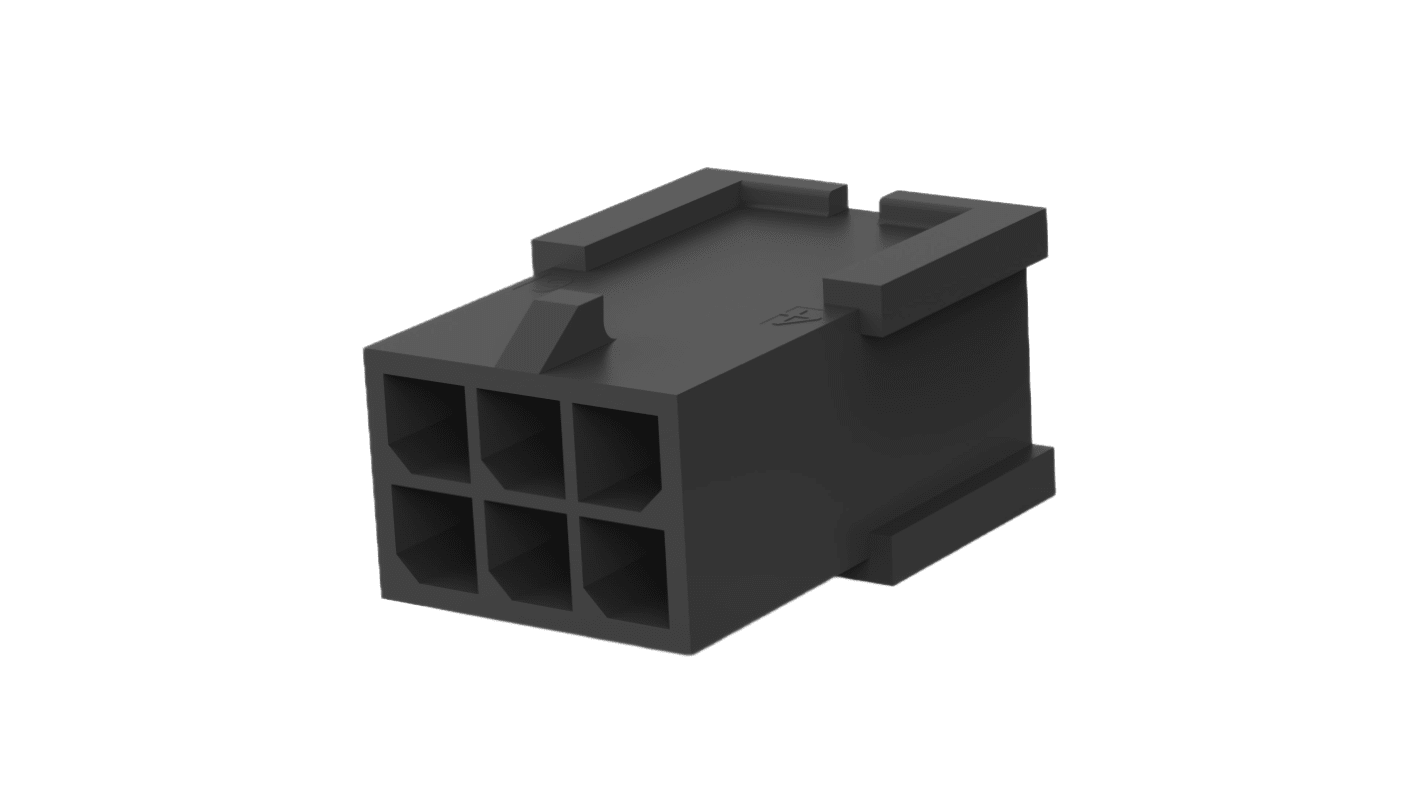

TE Connectivity Receptacle for use with PCB Connector
- RS Stock No.:
- 509-894
- Distrelec Article No.:
- 304-63-523
- Mfr. Part No.:
- 3-794616-6
- Brand:
- TE Connectivity
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 509-894
- Distrelec Article No.:
- 304-63-523
- Mfr. Part No.:
- 3-794616-6
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Connector | |
| Accessory Type | Receptacle | |
| For Use With | PCB Connector | |
| Colour | Black | |
| Material | Polyamide 66 | |
| Standards/Approvals | No | |
| Series | Micro MATE-N-LOK | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Connector | ||
Accessory Type Receptacle | ||
For Use With PCB Connector | ||
Colour Black | ||
Material Polyamide 66 | ||
Standards/Approvals No | ||
Series Micro MATE-N-LOK | ||
- COO (Country of Origin):
- CN
The TE Connectivity Robust housing connector is designed for intricate wire-to-wire applications, offering a reliable solution for connecting multiple circuits. With a compact design that accommodates six positions and a 3 mm centreline, this plug facilitates efficient wiring in space-constrained environments. Constructed from durable nylon 66/6, it ensures longevity and withstands a wide operating temperature range. This product adheres to stringent UL 94V-0 flammability standards, making it suitable for demanding applications. The Micro MATE-N-LOK series is renowned for its versatility and ease of use, making it an ideal choice for various electronic devices and systems in both consumer and industrial sectors.
Housing made from high-quality nylon for enhanced durability
Designed for crimp termination, ensuring secure electrical connections
No panel mount feature allows for flexible installation options
Withstands operating temperatures from -40 to 105 °C, suitable for diverse environments
Features a 180° cable exit angle to optimise space and routing
Compatible with multiple agency standards, ensuring reliable performance
Contact retention is designed without constraints, simplifying assembly
Designed with a glow wire rating to ensure safety in extreme conditions
Ensures easy identification with circuit marking features
Packaged in bulk quantities for cost-efficient assembly in large projects
