TE Connectivity Terminal Block for use with Connector
- RS Stock No.:
- 503-280
- Distrelec Article No.:
- 304-59-104
- Mfr. Part No.:
- 1546074-9
- Brand:
- TE Connectivity
Subtotal (1 box of 35 units)*
£164.03
(exc. VAT)
£196.84
(inc. VAT)
Stock information currently inaccessible - Please check back later
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £164.03 | £4.687 |
*price indicative
- RS Stock No.:
- 503-280
- Distrelec Article No.:
- 304-59-104
- Mfr. Part No.:
- 1546074-9
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Terminal Block | |
| Accessory Type | Terminal Block | |
| For Use With | Connector | |
| Colour | Black | |
| Material | Polyamide 66 | |
| Standards/Approvals | No | |
| Series | Buchanan | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Terminal Block | ||
Accessory Type Terminal Block | ||
For Use With Connector | ||
Colour Black | ||
Material Polyamide 66 | ||
Standards/Approvals No | ||
Series Buchanan | ||

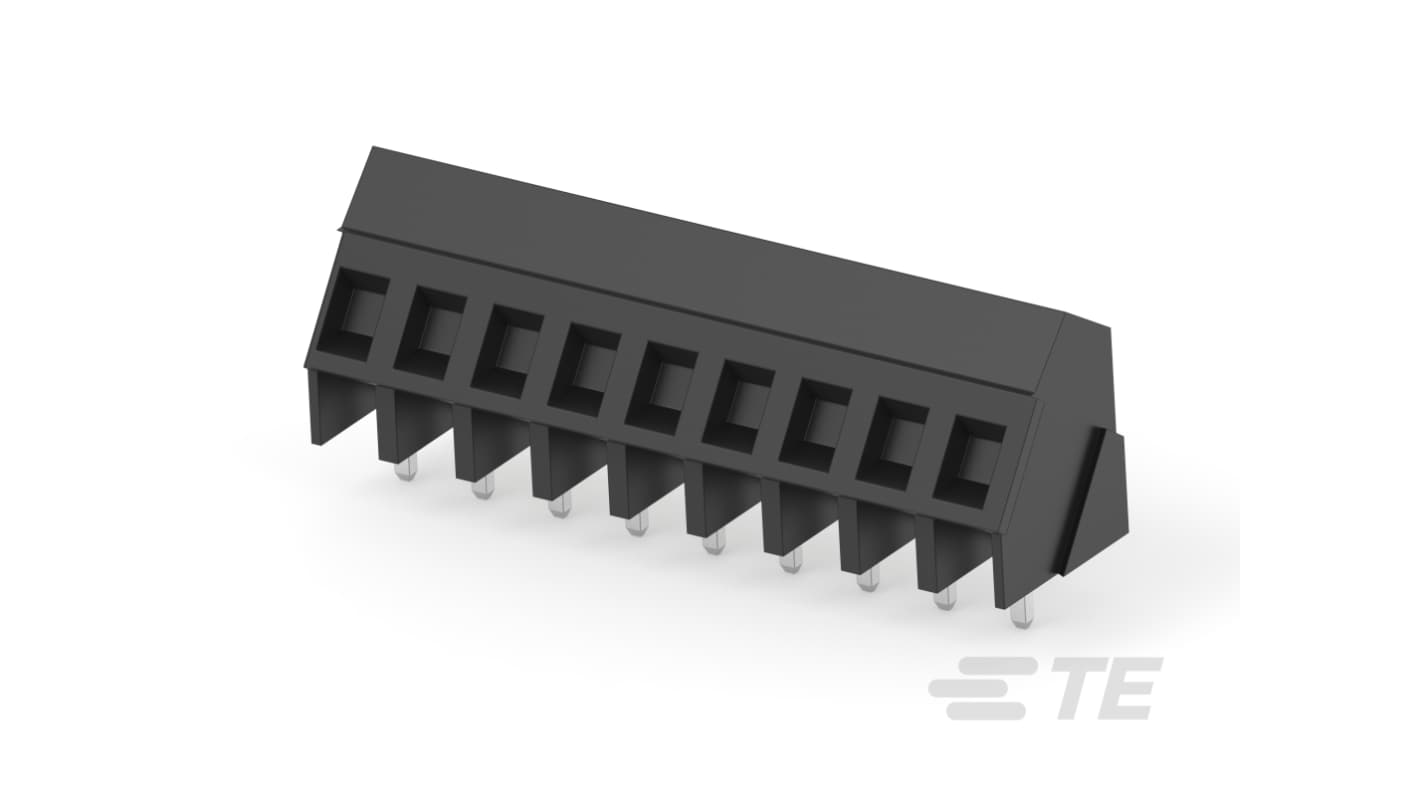

The TE Connectivity 9 Position PCB Terminal Block is a highly efficient connector designed for seamless wire-to-board applications. Featuring a compact 5.08 mm centreline, this terminal block delivers robust performance in varied electrical environments, supporting a wire size range from 30 to 12 AWG. Its innovative design incorporates a 35° wire entry angle, allowing for easier cable management and improved accessibility in tight spaces. Engineered with a vertical orientation and made from high-quality materials, this component ensures durability and reliability under demanding conditions. Its suitability for operating voltages up to 300 VAC makes it an essential choice for power and signal applications within the electronics industry. Easy to install, this terminal block inspires confidence for both professional and DIY projects alike.
Optimised for quick and easy installation
Vertical orientation enhances spatial efficiency
Constructed from high-grade materials for longevity
35° wire entry angle facilitates effective cable routing
Designed for use in both power and signal applications
Low halogen content ensures environmental compliance
Compatible with wave soldering processes up to 265°C
Available in bulk packaging for larger projects
Meets stringent EU compliance regulations for safety
