Molex PCB Receptacle for use with Board-to-Board, Power, Signal

View all PCB Connector Accessories
Bulk discount available

Subtotal (1 unit)*

£28.50

(exc. VAT)

£34.20

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£28.50
10 +£26.22

*price indicative

RS Stock No.:
429-563
Mfr. Part No.:
2195630022
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Accessory Type

PCB Receptacle

For Use With

Board-to-Board, Power, Signal

COO (Country of Origin):
MY

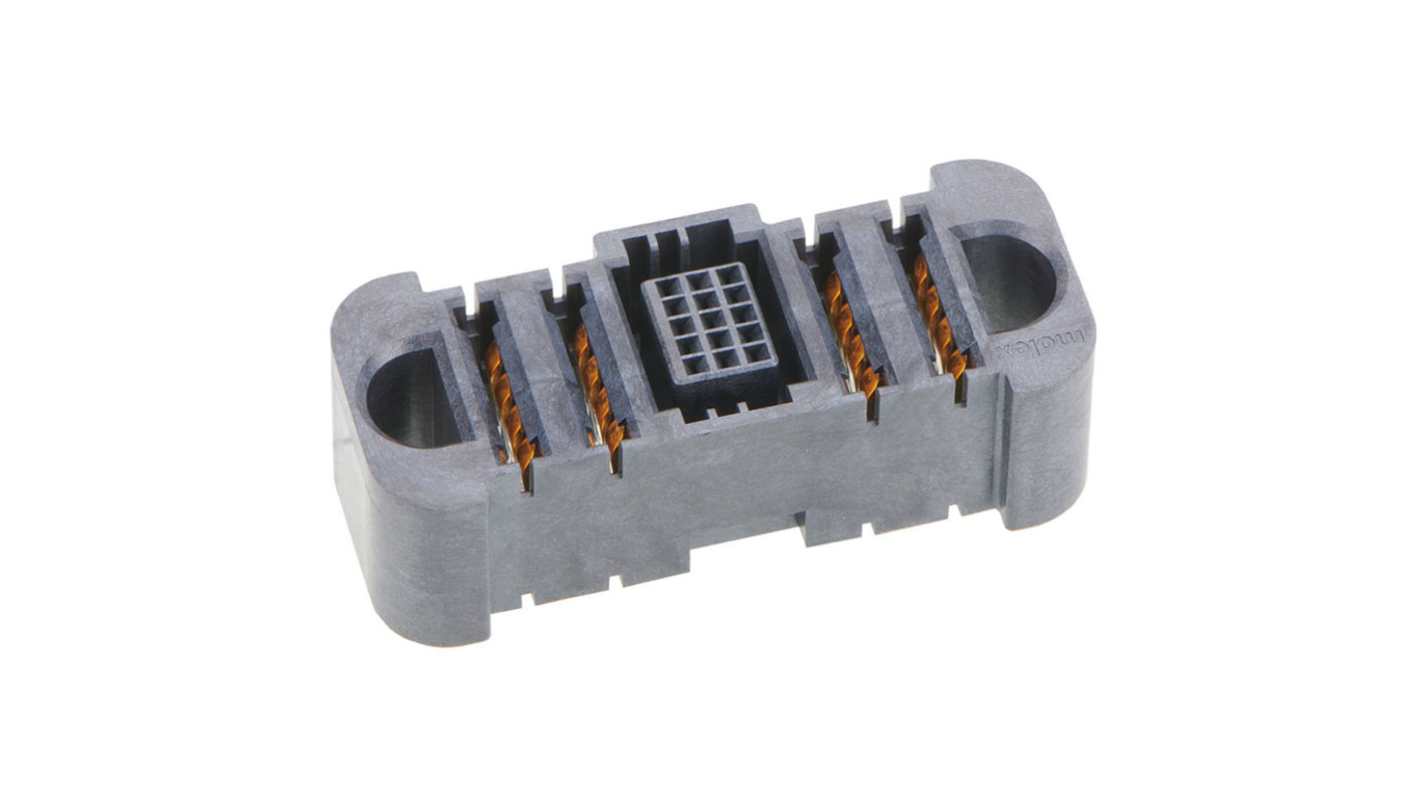

The Molex EXTreme Guardian HD Right Angle Receptacle Assembly is designed to meet the rigorous demands of board to board applications. With its innovative structure featuring a guide assembly for secure connections, this product is tailored for both power and signal transfer. Its robust design supports up to 16 circuits, merging durability with superior performance to deliver reliable connectivity across a range of environments. Ideal for applications where space is at a premium, the right angle orientation facilitates efficient integration into compact PCB layouts. Ensuring long lasting functionality, this receptacle is engineered to endure up to 200 mating cycles, making it a dependable choice for any system in need of resilience and efficacy.

Features a compact design for seamless integration into tight spaces
Constructed with high conductivity copper for optimal electrical performance
Utilises a liquid crystal polymer for high resistance against harsh conditions
Encapsulated in a black resin that adds to its durability during use
Includes PCB retention features to ensure secure placement
Designed for a wide operational temperature range to suit various environments
Mates seamlessly with a specific plug assembly for enhanced versatility
Incorporates low halogen materials in compliance with environmental standards
