Fluke 6200-2 PAT Testing Kit, Class I, Class II Test Type

Subtotal (1 unit)*

£1,278.66

(exc. VAT)

£1,534.39

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£1,278.66

*price indicative

Calibration Options:

Each

£1,360.66

(exc. VAT)

£1,632.79

(inc. VAT)

Each

£1,397.16

(exc. VAT)

£1,676.59

(inc. VAT)

RS Stock No.:
797-6024
Mfr. Part No.:
6200-2 UK KIT
Brand:
Fluke
Find similar products by selecting one or more attributes.
Select all

Brand

Fluke

Tester Type

Pass/Fail PAT

Test Type

Class I, Class II

Testing Method

Manual

Download

Yes

Power Source

Mains

Model Number p

6200-2

Plug Type

Type G - British 3-pin

Dimensions

200 x 275 x 114mm

Weight

3.1kg

Height

114mm

Length

200mm

Maximum Operating Temperature

+40°C

Maximum Supply Voltage

240V

Minimum Operating Temperature

0°C

Width

275mm

RoHS Status: Exempt

COO (Country of Origin):
RO

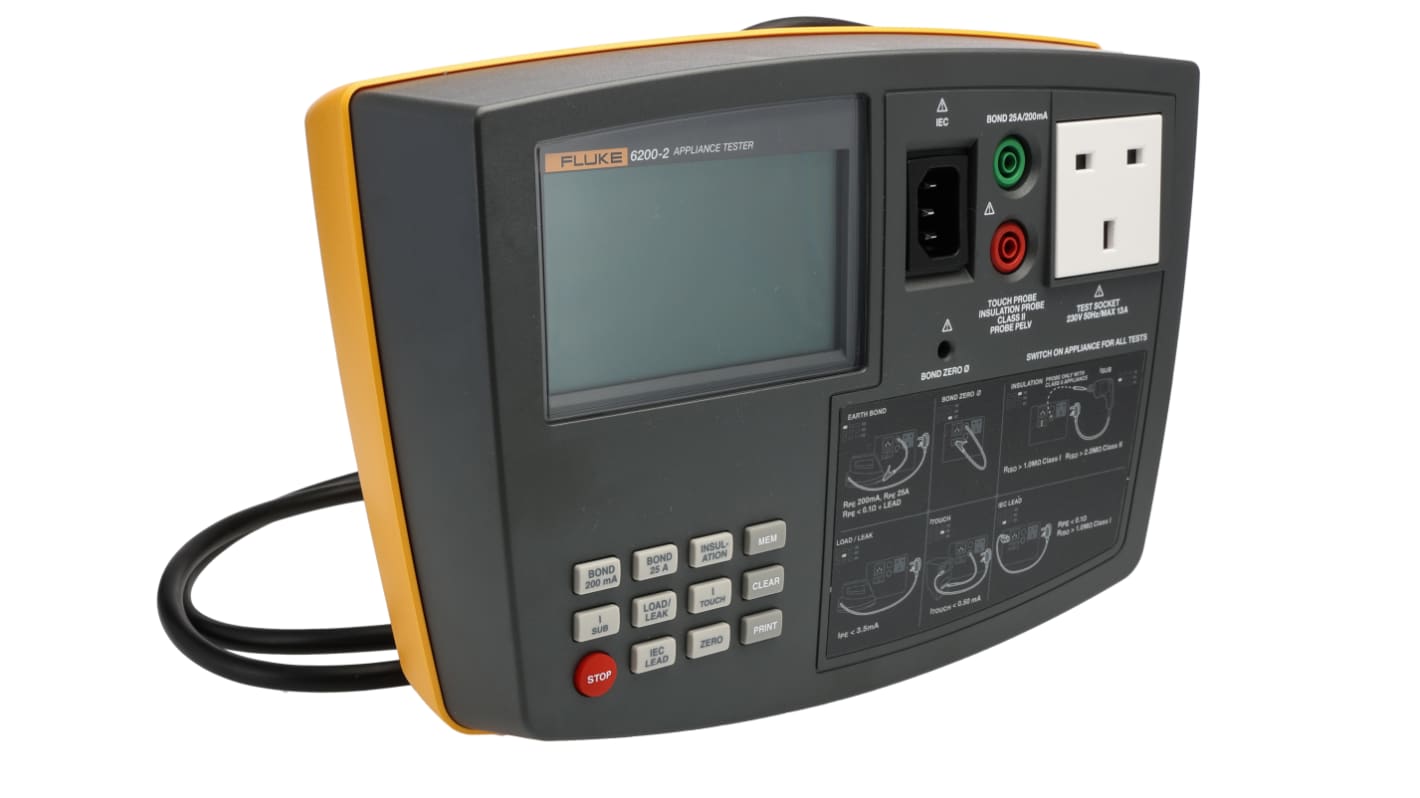

Fluke 6200-2 PAT Testing Kit UK Version


The Fluke 6200-2 PAT tester is a low weight, small size, one-touch solution with redesigned auto-test capabilities to help you increase the number of portable appliance tests completed each day. The 6200-2 is designed to enable you to work faster without compromising safety. Pre-set test routines are initiated from a single button. This not only simplifies testing but also facilitates a faster, more efficient way of working.

With powerful auto test capabilities and simplified controls, including ’one touch’ test routines, the Fluke 6200-2 PAT Tester increases the number of tests you can perform per day without compromising results
Packed with all the features you need for testing portable appliances on-site, the Fluke 6200-2 PAT tester provides a complete all-in-one solution
Dedicated key for each test for ’one-touch’ testing
Pre-set pass/fail levels to save time
Large display for easy reading
Single mains socket for appliance connection
Separate IEC socket for easy mains/extension lead testing
Detachable test leads for quick field replacement
Integral carrying handle
Dimensions: 200 x 275 x 114 mm
Weight: 3.13 kg

Test specifications


Power-on test
Earth bond test (Rpe)
Insulation test (RISO)
Touch current test
Substitute leakage current
Load/Leakage test: load current
Load/Leakage test: load power display range 230 V mains
Load/Leakage test: Leakage current
PELV test

Standards

Complies with EN61010-1 3rd edition CAT II, 300 V, pol 2

Supplied with

Fluke 6200-2 PAT, EXTL 100, Extension Lead Test Adaptor, Pass 560R, Appliance Pass Labels, Fail 100s, Appliance Fail Labels, IRP1, Register for PAT (Log Book), Hard Carry Case.

FLUKE PAT Testing Kit, 500V DC Insulation, USB Port for Printing - 6000-2 Series - 6200-2 UK KIT


For PAT testing at your fingertips, choose this kit from FLUKE. It includes the testing device itself plus a hard case and test leads, giving you everything you need to put portable electricals through their paces. The unit is fitted with both mains and IEC sockets, letting you connect appliances and extension leads when it's their turn to perform. Preset pass and fail levels take the hassle out of routine tests. Start the ball rolling with a simple press of a button, keeping your work streamlined and speedy. This means you can get through high volumes of earth-bond, leakage and insulation tests.

Features & Benefits


• Weight of 3kg and integral handle make it easy to carry around
• Backlit display means your results are clear, whatever the conditions
• USB port makes it a cinch to connect a printer

Applications


• Schools
• Construction industry
• Offices
• Facilities management

Is this PAT testing kit easy to use?


Absolutely. A handy pictorial key on the device gives you a guide to each test type and all the sockets are clearly labelled. For added safety, beeps inform you of the test status and the tester displays caution symbols to warn you of potential hazards from faulty appliances.
