Fluke 6200 PAT Tester, Class I, Class II Test Type
- RS Stock No.:
- 797-6008
- Mfr. Part No.:
- FLUKE-6200-2 UK
- Brand:
- Fluke
Subtotal (1 unit)*
£1,295.83
(exc. VAT)
£1,555.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,295.83 |
*price indicative
- RS Stock No.:
- 797-6008
- Mfr. Part No.:
- FLUKE-6200-2 UK
- Brand:
- Fluke
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluke | |
| Tester Type | Pass/Fail PAT | |
| Test Type | Class I, Class II | |
| Testing Method | Manual | |
| Power Source | Mains | |
| Model Number p | 6200 | |
| Plug Type | Type G - British 3-pin | |
| Weight | 3kg | |
| Height | 100mm | |
| Length | 200mm | |
| Maximum Operating Temperature | +40°C | |
| Maximum Supply Voltage | 230V | |
| Width | 275mm | |
| Minimum Supply Voltage | 110V | |
| Minimum Operating Temperature | 0°C | |
Select all | ||
|---|---|---|
Brand Fluke | ||
Tester Type Pass/Fail PAT | ||
Test Type Class I, Class II | ||
Testing Method Manual | ||
Power Source Mains | ||
Model Number p 6200 | ||
Plug Type Type G - British 3-pin | ||
Weight 3kg | ||
Height 100mm | ||
Length 200mm | ||
Maximum Operating Temperature +40°C | ||
Maximum Supply Voltage 230V | ||
Width 275mm | ||
Minimum Supply Voltage 110V | ||
Minimum Operating Temperature 0°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RO

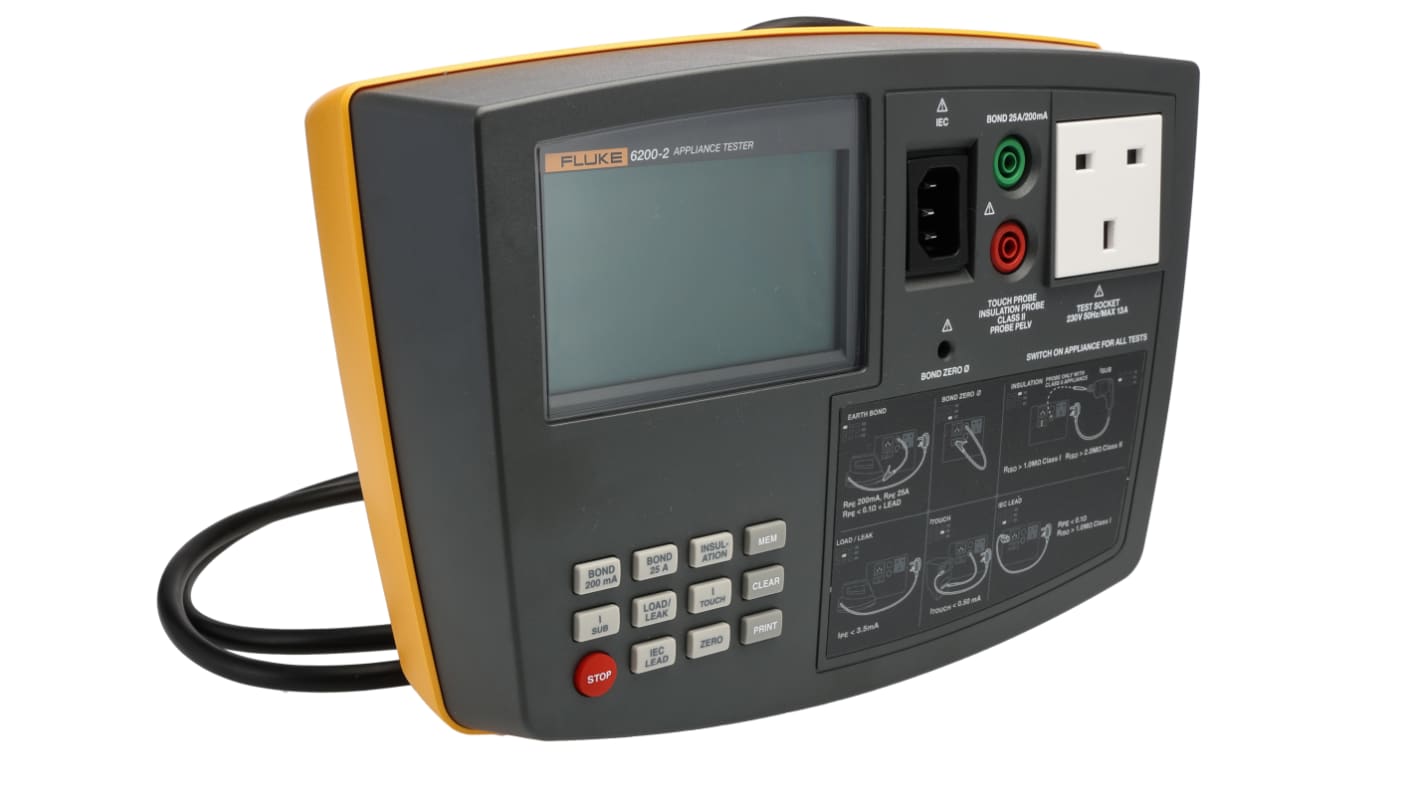

Fluke 6200-2 PAT Tester UK Version
The Fluke 6200-2 Portable appliance tester verifies the electrical safety and operation of portable appliances in accordance with relevant guidelines and regulations.
Dedicated key for each test for ’one-touch’ testing
Pre-set pass/fail levels to save time
Large backlit display for easy reading
Single mains socket for appliance connection
Separate IEC socket for easy mains/extension lead testing
Detachable test leads for quick field replacement
Integral carrying handle
Pre-set pass/fail levels to save time
Large backlit display for easy reading
Single mains socket for appliance connection
Separate IEC socket for easy mains/extension lead testing
Detachable test leads for quick field replacement
Integral carrying handle
Test specifications
Power-on test
Earth bond test (Rpe)
Insulation test (RISO)
Touch current test
Substitute leakage current
Load/Leakage test: load current
Load/Leakage test: load power display range 230 V mains
Load/Leakage test: Leakage current
PELV test
Earth bond test (Rpe)
Insulation test (RISO)
Touch current test
Substitute leakage current
Load/Leakage test: load current
Load/Leakage test: load power display range 230 V mains
Load/Leakage test: Leakage current
PELV test
Standards
Complies with EN61010-1 3rd edition CAT II, 300 V, pol 2
Supplied with
Test Lead, test probe, crocodile clip, mains cord, storage case, quick reference guide, User’s manual on CD.
