MPN

Megger PAT250SX-EU Portable Appliance Tester Pat, Portable RCD test, Patch, Touch Current, Fibreglass, SELV device test,

RS Stock No.:: 619-057
Mfr. Part No.:: 1016-045
Brand:: Megger

Megger PAT250SX-EU Portable Appliance Tester Pat, Portable RCD test, Patch, Touch Current, Fibreglass, SELV device test,

Subtotal (1 unit)*

£1,317.96

(exc. VAT)

£1,581.55

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

2 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£1,317.96

*price indicative

Calibration Options:

Megger PAT250SX-EU Portable Appliance Tester Pat, Portable RCD test, Patch, Touch Current, Fibreglass, SELV device test,

Calibration Type:: RSCAL

RS Stock No.: 619-059

Each

£1,399.96

(exc. VAT)

£1,679.95

(inc. VAT)

Megger PAT250SX-EU Portable Appliance Tester Pat, Portable RCD test, Patch, Touch Current, Fibreglass, SELV device test,

Calibration Type:: UKAS

RS Stock No.: 619-060

Each

£1,436.46

(exc. VAT)

£1,723.75

(inc. VAT)

RS Stock No.:: 619-057
Mfr. Part No.:: 1016-045
Brand:: Megger

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Megger
	Tester Type	PAT Tester Kit
	Product Type	Portable Appliance Tester Pat
	Test Type	Portable RCD test, Patch, Touch Current, Fibreglass, SELV device test, Fly Back Converter, Ultra High PSRR, Continuity, Low-Dropout (LDO) Linear Regulator
	Download	Yes
	Model Number	PAT250SX-EU
	Power Source	Mains, Battery
	Plug Type	CEE 7/5, CEE 7/4, AS, BS1363, NZ 3112 (15A)
	Battery Type	AA Alkaline, Nickel-Metal Hydride
	Minimum Supply Voltage	9.6V
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	40°C
	Length	456mm
	Height	89mm
	Width	178 mm
	Standards/Approvals	IEC 6132622: 2005, BS EN 50699:2020, ISO 9001, IEC 613261: 2012, IEC 610101: 2010, BS EN 50678:2020, IEC 61010031: 2008
	Maximum Supply Voltage	300V ac

	Select all
	Brand Megger
	Tester Type PAT Tester Kit
	Product Type Portable Appliance Tester Pat
	Test Type Portable RCD test, Patch, Touch Current, Fibreglass, SELV device test, Fly Back Converter, Ultra High PSRR, Continuity, Low-Dropout (LDO) Linear Regulator
	Download Yes
	Model Number PAT250SX-EU
	Power Source Mains, Battery
	Plug Type CEE 7/5, CEE 7/4, AS, BS1363, NZ 3112 (15A)
	Battery Type AA Alkaline, Nickel-Metal Hydride
	Minimum Supply Voltage 9.6V
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature 40°C
	Length 456mm
	Height 89mm
	Width 178 mm
	Standards/Approvals IEC 6132622: 2005, BS EN 50699:2020, ISO 9001, IEC 613261: 2012, IEC 610101: 2010, BS EN 50678:2020, IEC 61010031: 2008
	Maximum Supply Voltage 300V ac

Datasheet - 1016-045

RoHS Status: Exempt

COO (Country of Origin):: GB

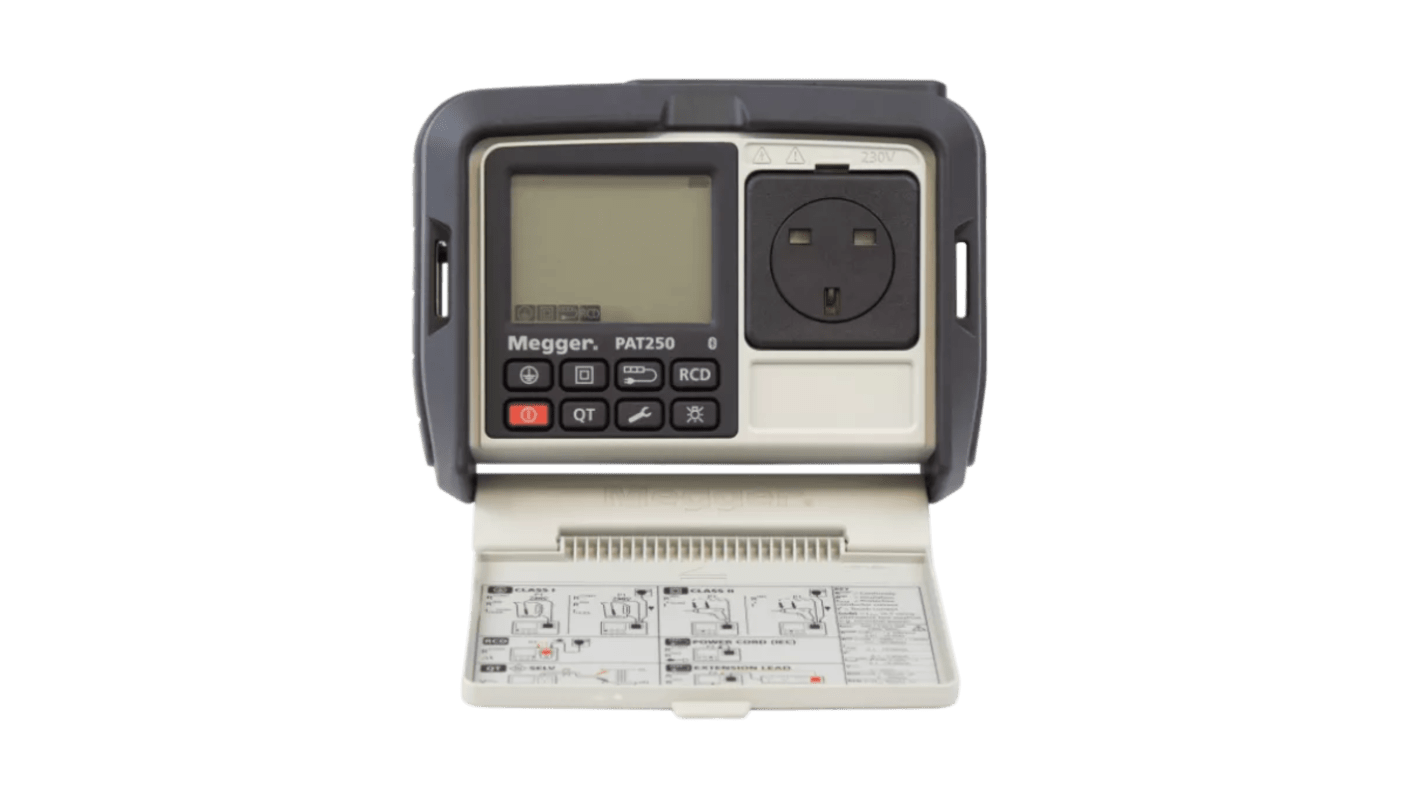

The Megger hand-held portable appliance testers with Bluetooth enables simple, fast safety testing in all environments including offices, shops and business units. Its tough, reliable functionality is ideally suited for training organizations with high turnover, intensive courses. With rubber armoured cases and hardened, scratch-proof glass, the PAT250s are exceptionally tough instruments. Battery powered operation makes the PAT250s perfect for those locations where an electrical supply is not available, inconvenient or unsafe, especially building sites and warehouses. The PAT250 series conforms European requirements for electrical safety testing.

Simple tick or cross for pass or fail indication

Battery powered with rechargeable options

Continuity test 200 mA

Substitute leakage testing
