Pico Technology 3405D PicoScope 3000 Series, 100MHz PC Based Oscilloscope, 4 Analogue Channels - RS Calibrated
- RS Stock No.:
- 280-6652
- Mfr. Part No.:
- PicoScope 3405D
- Brand:
- Pico Technology
Subtotal (1 unit)*
£1,637.76
(exc. VAT)
£1,965.31
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,637.76 |
*price indicative
- RS Stock No.:
- 280-6652
- Mfr. Part No.:
- PicoScope 3405D
- Brand:
- Pico Technology
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Pico Technology | |
Bandwidth | 100MHz | |
Number of Analogue Channels | 4 | |
Calibrated | RSCAL | |
Oscilloscope Type | PC Based | |
Interface | CAN, IIC, LIN, RS232, SPI, UART, USB | |
Sample Rate Random | 5 Gsps | |
Series | PicoScope 3000 | |
Rise Time | 3.5ns | |
Power Source | Mains | |
Minimum Time Base | 1ns/div | |
Vertical Resolution | 8 bit | |
Dimensions | 190 x 170 x 40mm | |
Weight | 500g | |
Minimum Vertical Sensitivity | 4mV/div | |
Digital/Analogue | Analogue | |
Maximum Vertical Sensitivity | 4V/div | |
Maximum Time Base | 5000s/div | |
Select all | ||
---|---|---|
Brand Pico Technology | ||
Bandwidth 100MHz | ||
Number of Analogue Channels 4 | ||
Calibrated RSCAL | ||
Oscilloscope Type PC Based | ||
Interface CAN, IIC, LIN, RS232, SPI, UART, USB | ||
Sample Rate Random 5 Gsps | ||
Series PicoScope 3000 | ||
Rise Time 3.5ns | ||
Power Source Mains | ||
Minimum Time Base 1ns/div | ||
Vertical Resolution 8 bit | ||
Dimensions 190 x 170 x 40mm | ||
Weight 500g | ||
Minimum Vertical Sensitivity 4mV/div | ||
Digital/Analogue Analogue | ||
Maximum Vertical Sensitivity 4V/div | ||
Maximum Time Base 5000s/div | ||
- COO (Country of Origin):
- GB
Pico Technology Oscilloscopes

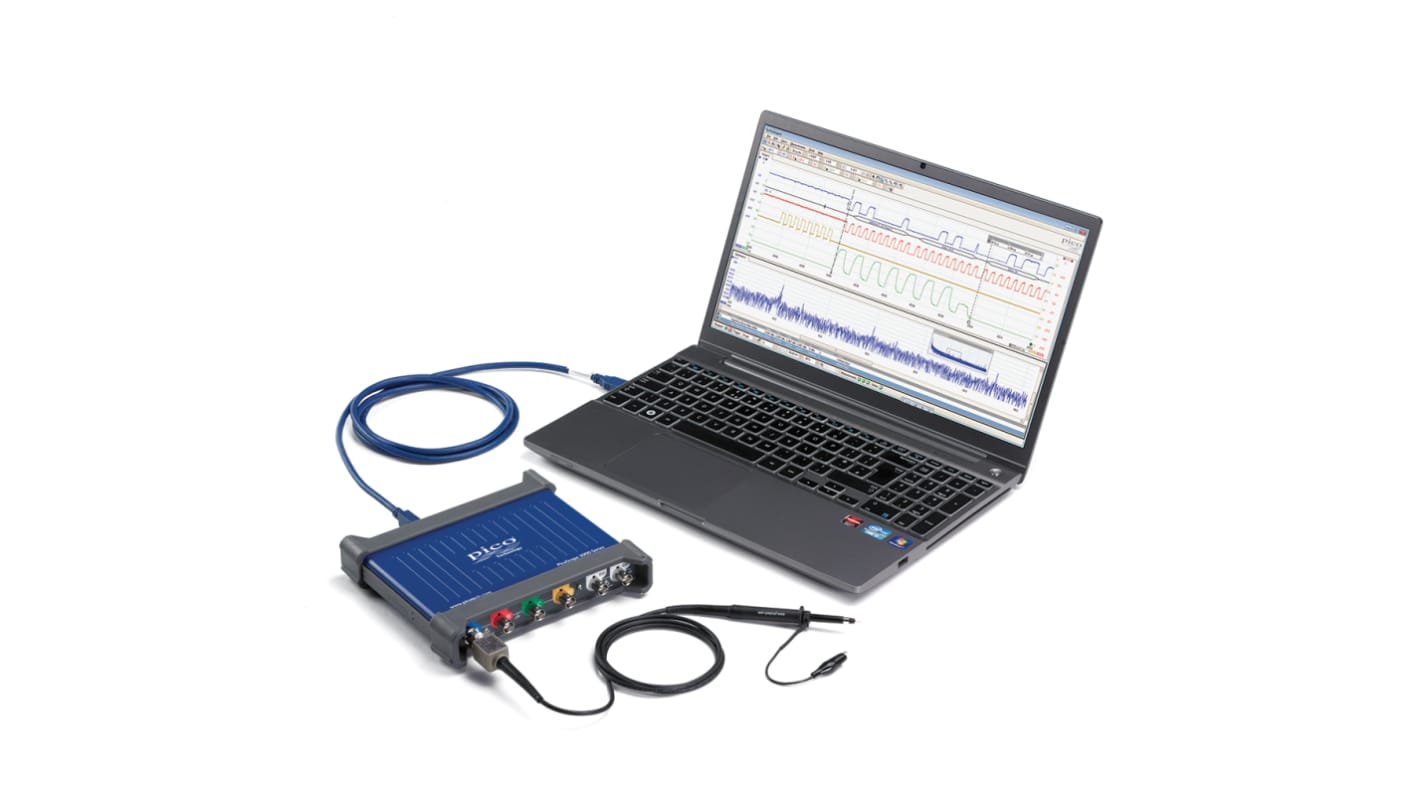

The Pico Technology 3000 series oscilloscope has a bandwidth of 100MHz. It is a 4-channel, PC based, compact, USB-connected complete portable test system, which plugs into a laptop. It is compatible with PicoScope6 software to offer advanced and cost-effective solutions. This oscilloscope displays waveforms in a resizable window on the user's PC screen, creating an uncluttered space for multiple high-resolution analogues and digital traces. Saving, sharing and analysing waveforms is quick and simple using PC networking, storage and processing facilities. It also includes math channels, automatic measurements with statistics, spectrum analysis and colour persistence display mode and has built-in advanced digital triggering with pulse width, window, dropout, channel logic, digital pattern and other qualifiers, masks limit testing and alarms. Serial decoding supports SPI, I2C, I2S, RS-232/UART, CAN, LIN and FlexRay protocols on up to 20 analogue and digital channels, even with a mixture of protocols at the same time.
Supplied with:
Switchable x1/x10 probes (1 per analogue channel) in carrying case, Quick Start guide, software and reference CD, USB cables, power adaptor (with 4 analogue channel models only)
.
Supplied with:
Switchable x1/x10 probes (1 per analogue channel) in carrying case, Quick Start guide, software and reference CD, USB cables, power adaptor (with 4 analogue channel models only)
.
Features and Benefits
1GS/s real-time sampling
256MS buffer memory
100,000 waveforms per second
Arbitrary waveform generator
USB 3.0 connected and powered
Serial decoding and mask testing as standard
Hardware-accelerated update rates
256MS buffer memory
100,000 waveforms per second
Arbitrary waveform generator
USB 3.0 connected and powered
Serial decoding and mask testing as standard
Hardware-accelerated update rates
Applications
Design
Test
Education
Servicing
Monitoring
Fault finding
Repairs
Test
Education
Servicing
Monitoring
Fault finding
Repairs
Certifications
EN 61010-1:2010
WEEE certified
EN61326-1:2006
FCC Part 15 Subpart B
WEEE certified
EN61326-1:2006
FCC Part 15 Subpart B
