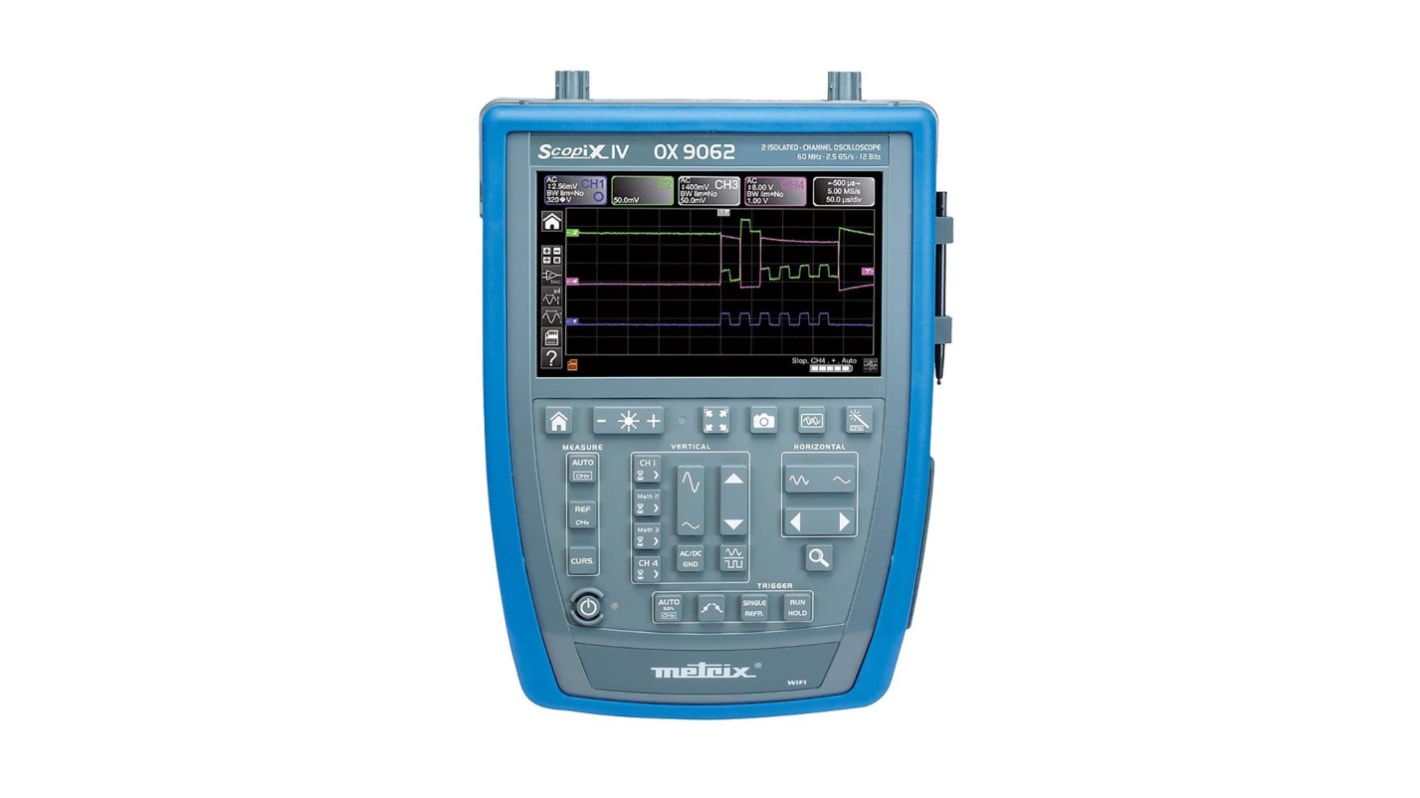

Metrix OX9062 SCOPIX IV Series, 60MHz Handheld Oscilloscope, 2 Analogue Channels - UKAS Calibrated

RS Stock No.:: 280-6459
Mfr. Part No.:: OX9062
Brand:: Metrix

Metrix OX9062 SCOPIX IV Series, 60MHz Handheld Oscilloscope, 2 Analogue Channels - UKAS Calibrated

Subtotal (1 unit)*

£2,301.41

(exc. VAT)

£2,761.69

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1 unit(s) ready to ship
Plus 6 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£2,301.41

*price indicative

Don't forget your Probe

Whatever Oscilloscope you're in the market for, we have the probe to match.

Shop our full range of Probes here

RS Stock No.:: 280-6459
Mfr. Part No.:: OX9062
Brand:: Metrix

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Metrix
	Bandwidth	60MHz
	Number of Analogue Channels	2
	Calibrated	UKAS
	Oscilloscope Type	Handheld
	Interface	Ethernet, USB, Wifi, μSD
	Oscilloscope Form	Digital Storage
	Memory Depth	100kpts
	Sample Rate Random	100 Gsps
	Screen Size	7in
	Series	SCOPIX IV
	Record Length	8000points/ch
	Rise Time	5.85ns
	Display Type	TFT LCD
	Maximum Vertical Sensitivity	200V/div
	Battery Life	8 h
	Minimum Vertical Sensitivity	2.5mV/div
	Weight	2.1kg
	Waveform Refresh Rate	100
	Battery Type	Li-ion
	Dimensions	292.5 x 210.6 x 66.2mm
	Vertical Resolution	12 bit
	Maximum Time Base	200s/div
	Digital/Analogue	Digital
	Safety Category	CAT III 600V
	Minimum Time Base	1ns/div
	Power Source	Battery, Mains

	Select all
	Brand Metrix
	Bandwidth 60MHz
	Number of Analogue Channels 2
	Calibrated UKAS
	Oscilloscope Type Handheld
	Interface Ethernet, USB, Wifi, μSD
	Oscilloscope Form Digital Storage
	Memory Depth 100kpts
	Sample Rate Random 100 Gsps
	Screen Size 7in
	Series SCOPIX IV
	Record Length 8000points/ch
	Rise Time 5.85ns
	Display Type TFT LCD
	Maximum Vertical Sensitivity 200V/div
	Battery Life 8 h
	Minimum Vertical Sensitivity 2.5mV/div
	Weight 2.1kg
	Waveform Refresh Rate 100
	Battery Type Li-ion
	Dimensions 292.5 x 210.6 x 66.2mm
	Vertical Resolution 12 bit
	Maximum Time Base 200s/div
	Digital/Analogue Digital
	Safety Category CAT III 600V
	Minimum Time Base 1ns/div
	Power Source Battery, Mains

SCOPIX IV oscilloscopes are ideal for work in the field or in the lab. Pratical for all measurements in total safety, the OX 9062 is equipped with 2 totally-isolated channels with 60 MHz bandwith and a memory depth of 100 kpoints per channel, considerably increasing the available duration for recording.
The OX 9062 oscilloscope is multifunction and has available all the analytical modes : Oscilloscope, multimeter, analyser, recorder and viewing of files recorded.
The OX 9062 oscilloscope offers a genuine high performance thanks to its 12-bit converter with a vertical resolution of 0,0025%.
In addition to its advanced trigger functions (pulse width, counting, delay), OX 9062 proposes 20 automatic measurements per channel linked to cursors for comprehensive analysis.
OX 9062 benefits from standard and advanced "MATH" functions allowing users to define a mathematical function for each of the traces, along with vertical scaling and definition of the actual physical unit.
Thanks to the real-time FFT function provided simultaneously with the waveform plus qualitative analysis of the harmonics, the distortion of a signals, the pulse response, it ensures effective, accurate diagnostics when searching for a source of noise in the logic circuits.

The multi-channel, 8,000-count, 200 kHz TRMS digital multimeter measures the amplitudes, resistance, continuity, capacitance, frequency and temperatures, as well as performing component tests without changing the connections thanks to PROBIX.
The multimeter mode is linked to the logger mode, allowing time/date-stamped recordings to be made automatically (N files of 100,000 measurements each with a 0.2 s interval between 2 acquisitions.).
Power measurements are possible in this mode: single and three-phase power

active reactive and apparent power plus the power factor.
The multi-channel harmonic analyser mode is capable of displaying the first 63 orders for signals whose fundamental frequency is between 40 and 450 Hz.

A .png screenshot is available in each of the modes and the reminder of all your recordings provides an unprecedented level of comfort for your diagnostics.

All the means of communication are available to optimize your analyses: wired Ethernet and WIFI, USB and μSD.
PROBIX plug-and-play accessories offer a quick implementation of the instrument with no risk of errors. The coefficients, scales and units of the sensors and the channel configuration are managed automatically and the probes and adapters are recognized as soon as they are connected.

Specifications:

Bandwith of 60 MHz, Bandwidth limit with filters 15MHz, 1,5 MHz and 5KHz

2 isolated channels 600v cat III not only between them, but also by earth by PROBIX connection

Input dynamics of 156μV to 200 V /div

Sampling rate 2.5Géch/s in single mode - 100Géch/s in repetitive ETS

Time base from 1 ns to 200s/div

Memory depth 100Kpts/channel (1Go internal memory)

Automatic, trigged,single and ROLL if time base less than 100ms/div

XY, FFT and Zoom with waveform

25 direct command keys on front panel

Quick charging in 2 hrs

battery life up to 8 hrs

Ethernet/Wifi/USB/μSD communication: the SCOPENET PC or tablet software can be used to take control of the instrument remotely and transfer curves or screenshots using your favourite browser

Large storage capacity: SD, SDHC, SDXC in addition to the 2 GB internal memory, μSD above 32 GB

State at delivery:

1 SCOPIX IV oscilloscope delivered with a carrying bag, a PA40W-2 mains power pack/charger and 1 2P EURO mains power cable, 1 Li-Ion battery pack, 1 stylus, 1 Ethernet cable, 1 USB cable, 2 safety leads (red, black), 2 x Ø 4 mm test probes (red, black), 2 or 4 voltage probes depending on models, 1 μSD card (8 GB), 1 USB/ μSD adapter, 1 hand strap, 1 PROBIX BANANA, USB installation procedure for use of ScopeNet data export software on CD-ROM, 1 PDF user’s manual ( more than 5 languages), 1 start-up guide on paper and 1 safety datasheet in 20 languages.

Replacement accessories:

231-3615 HX0030C : 600V 1/10 TEST PROBE BW 250MHZ

485-0657 HX0031 : Probix / BNC Adapter

485-0663 HX0032 : Probix Adapt.50 Ohms

485-0679 HX0033 : Probix / Banana Adapter

231-3616 HX0034B : 80A 500KHZ AC/DC PROBIX CURRENT CLAMP

231-1454 HX0072 : 0.5-3KA 200KHZ PROBIX FLEXIBLE CURRENT CLAMP

231-1455 HX0073 : 0.5-300A 3MHZ PROBIX FLEXIBLE CURRENT CLAMP

227-4852 HX0093 : 300HZ PROBIX FILTER

227-4853 HX0094 : 4-20MA PROBIX

227-4854 HX0095 : 1000V BANANA PROBIX

227-4850 HX0035B : Probix/K TC Connector

231-3616 HX0034B: Probix clamp with round cable, 80A AC/DC 500 kHz

231-1457 HX0179: μSD card (8 GB)

229-6091 HX0080: 1 USB/μSD adapter + USB adapter

229-6098 HX0120: METRIX bag for SCOPIX IV

231-1456 HX0122: transport strap for SCOPIX IV
