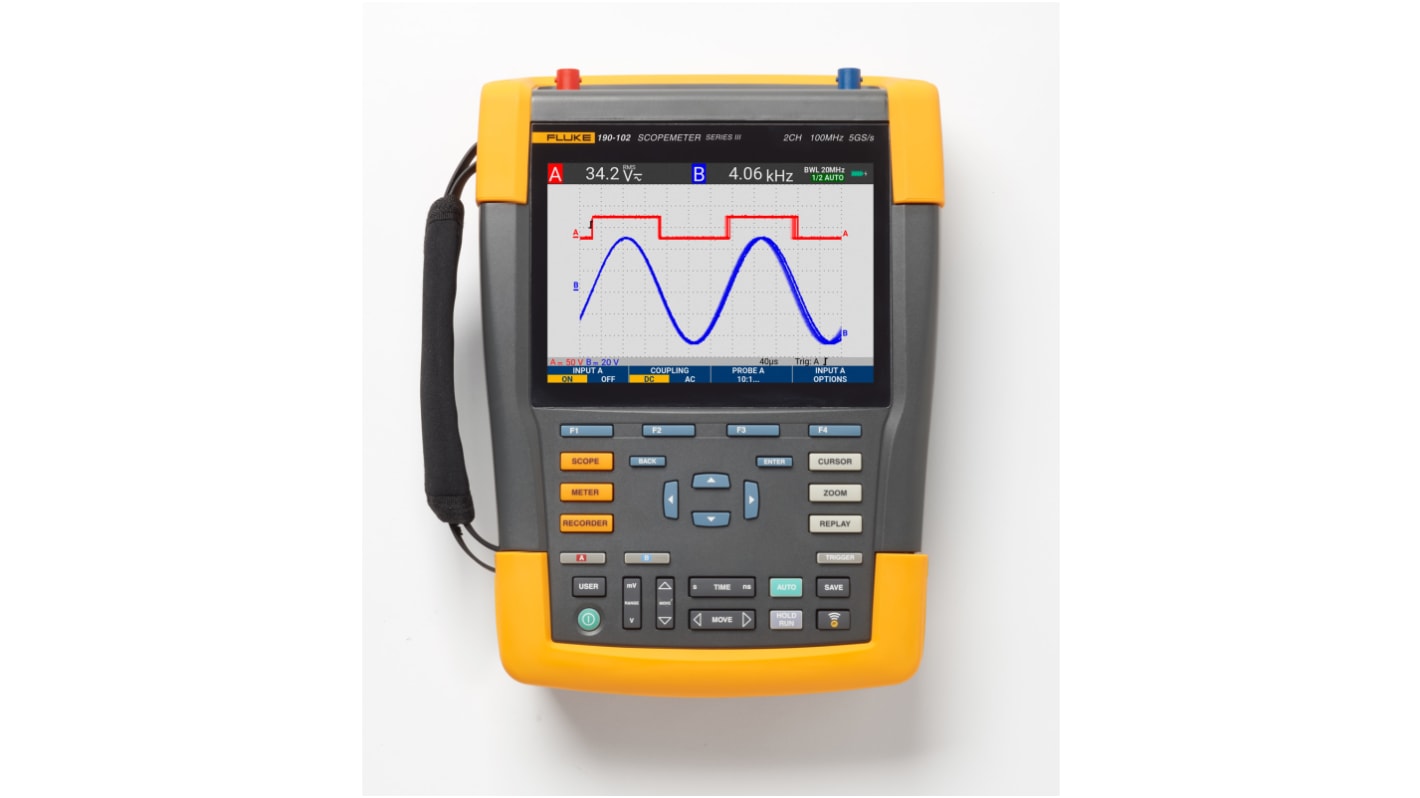

Fluke 190-102-III-S ScopeMeter III Series, 100MHz Portable Oscilloscope, 2 Analogue Channels, 2 Digital Channels
- RS Stock No.:
- 230-5648
- Mfr. Part No.:
- FLUKE-190-102-III-S
- Brand:
- Fluke
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 230-5648
- Mfr. Part No.:
- FLUKE-190-102-III-S
- Brand:
- Fluke
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluke | |
| Bandwidth | 100MHz | |
| Number of Analogue Channels | 2 | |
| Number of Digital Channels | 2 | |
| Oscilloscope Type | Portable | |
| Oscilloscope Form | Digital Storage | |
| Interface | USB | |
| Memory Depth | 30kpts | |
| Sample Rate Random | 2.5 Gsps | |
| Screen Size | 133 x 90mm | |
| Series | ScopeMeter III | |
| Record Length | 10000points | |
| Power Source | Battery | |
| Maximum Time Base | 4s/div | |
| Vertical Resolution | 8 bit | |
| Battery Type | Li-ion | |
| Safety Category Voltage | 600 V, 1000 V | |
| Digital/Analogue | Digital | |
| Length | 265mm | |
| Height | 192mm | |
| Dimensions | 265 x 192 x 70mm | |
| Minimum Time Base | 4ms/div | |
| Safety Category | CAT III 1000 V/CAT IV 600 V | |
| Rise Time | 3.5ns | |
| Display Type | LCD | |
| Safety Category Level | CAT III, CAT IV | |
| Weight | 2.1kg | |
| Input Impedance | 1 mO | |
| Select all | ||
|---|---|---|
Brand Fluke | ||
Bandwidth 100MHz | ||
Number of Analogue Channels 2 | ||
Number of Digital Channels 2 | ||
Oscilloscope Type Portable | ||
Oscilloscope Form Digital Storage | ||
Interface USB | ||
Memory Depth 30kpts | ||
Sample Rate Random 2.5 Gsps | ||
Screen Size 133 x 90mm | ||
Series ScopeMeter III | ||
Record Length 10000points | ||
Power Source Battery | ||
Maximum Time Base 4s/div | ||
Vertical Resolution 8 bit | ||
Battery Type Li-ion | ||
Safety Category Voltage 600 V, 1000 V | ||
Digital/Analogue Digital | ||
Length 265mm | ||
Height 192mm | ||
Dimensions 265 x 192 x 70mm | ||
Minimum Time Base 4ms/div | ||
Safety Category CAT III 1000 V/CAT IV 600 V | ||
Rise Time 3.5ns | ||
Display Type LCD | ||
Safety Category Level CAT III, CAT IV | ||
Weight 2.1kg | ||
Input Impedance 1 mO | ||
- COO (Country of Origin):
- RO
FLUKE Oscilloscope, Colour Display, 3.5ns Rise Time - ScopeMeter III Series - FLUKE-190-102-III-S
Keep a close eye on electrical waveforms with this oscilloscope from FLUKE. When it receives a signal, it plots it out in a graphical interface for easy reading. The unit's colour display is bright and easy to read, so lets you monitor any changes at a glance. Its memory bank of 10,000 data points offers sufficient storage room to save large volumes of readings for later analysis. As the robust housing is resistant to shock and vibrations, this device will hold its own in challenging operations.
Features & Benefits
• Rapid rise time of 3.5ns ensures quick performance
• 2-channel operation for monitoring a pair of inputs at the same time
• Auto power-down with adjustable timing to conserve battery life
• Built-in digital multimeter lets you switch from waveforms to numerical values for flexibility
• 2-channel operation for monitoring a pair of inputs at the same time
• Auto power-down with adjustable timing to conserve battery life
• Built-in digital multimeter lets you switch from waveforms to numerical values for flexibility
Applications
• Assembly plants
• Robotics and automation systems
• Communications equipment
• Aerospace engineering
• Robotics and automation systems
• Communications equipment
• Aerospace engineering
How do I transmit data from this oscilloscope?
It comes with built-in USB and WiFi connectivity for convenient data transmissions to external systems.
What's the sampling rate of this oscilloscope?
Thanks to the real-time sampling rate of 1.25GS/s per channel, this device interprets your data with precision.
