Teledyne LeCroy T3DSO31004 T3DSO3000 Series, 1GHz Bench Oscilloscope, 4 Analogue Channels, 16 Digital Channels - RS

View all Oscilloscopes
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Shop Probes
Don't forget your Probe
Whatever Oscilloscope you're in the market for, we have the probe to match.
Shop our full range of Probes here
RS Stock No.:
224-1759
Mfr. Part No.:
T3DSO31004-PROMO-1
Brand:
Teledyne LeCroy
Find similar products by selecting one or more attributes.
Select all

Brand

Teledyne LeCroy

Bandwidth

1GHz

Number of Analogue Channels

4

Number of Digital Channels

16

Calibrated

RSCAL

Oscilloscope Type

Bench

Interface

USB

Oscilloscope Form

Mixed Signal

Memory Depth

250Mpts

Sample Rate Random

5 Gsps

Screen Size

10.1in

Series

T3DSO3000

Rise Time

0.4ns

Minimum Time Base

0.2ns/div

Vertical Resolution

8 bit, 11 bit

Waveform Refresh Rate

120000 (Normal Mode) per sec, 500000 (Sequence Mode) per sec

Power Source

Mains

Digital/Analogue

Digital

COO (Country of Origin):
CN

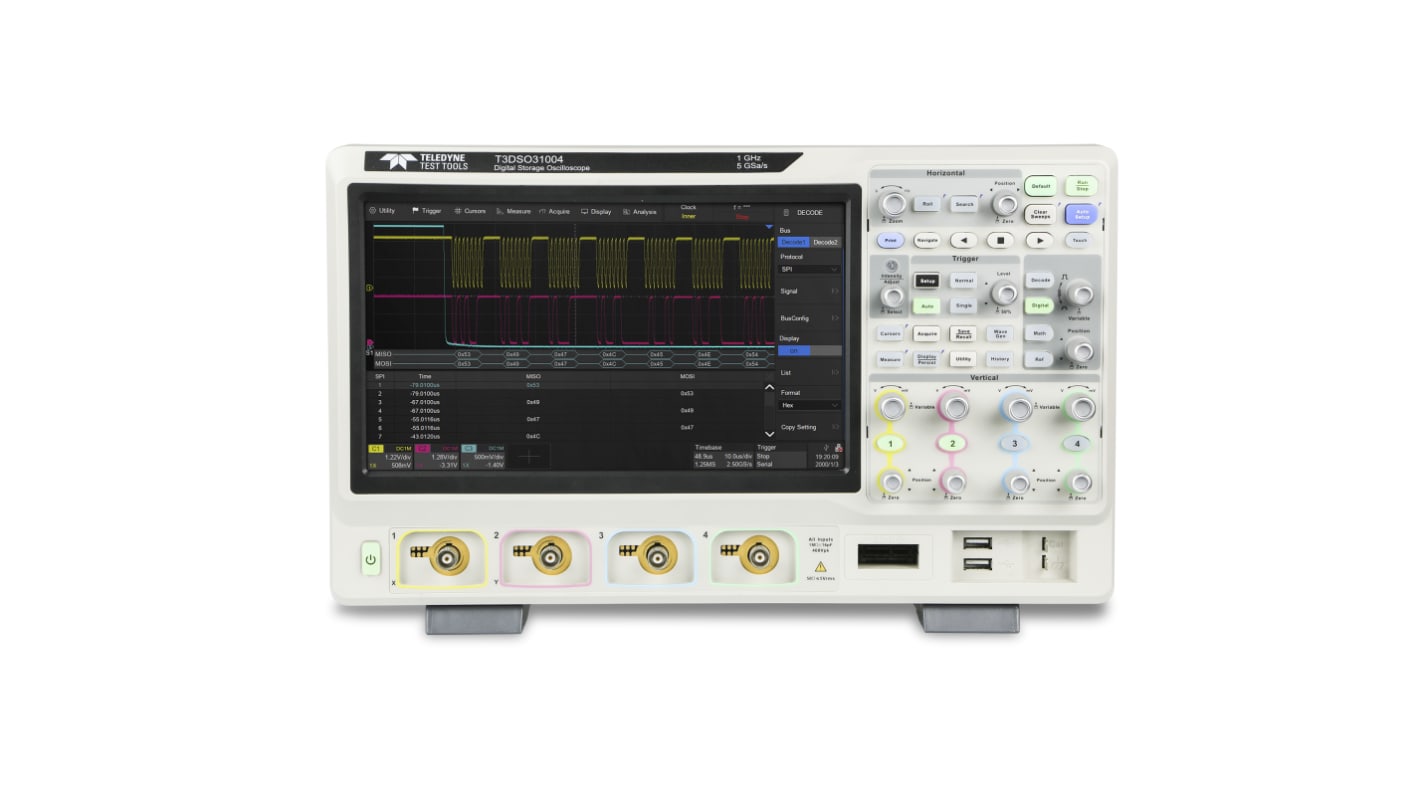

Teledyne LeCroy, T3DSO31004, FULLY LOADED, 16 Channel Mixed Signal Oscilloscope, 1 GHz, 4 Channels


Teledyne LeCroy's new T3DSO31004 Oscilloscope is a four channel model with analog bandwidth of 1 GHz. The model also comes with 16 channel Mixed Signal capability as standard. The T3DSO31004 offers a maximum sample rate of 5 GSa/s, and a maximum memory depth of 250 Mpts in half channel mode. The T3DSO31004 model incorporate two 5 GSa/s ADCs and two 250 Mpts memory modules. When all channels are enabled, each channel has sample rate of 2.5 GSa/s and a standard record length of 125 Mpts. When only a single channel per ADC is active, the maximum sample rate is 5 GSa/s and the maximum record length is 250 Mpts. For ease-of-use, the most commonly used funcons can be accessed with its user-friendly front panel capacitive touch screen design. The T3DSO31004 model comes fully loaded with all Trigger/Decode options as standard alongside Power Analysis and Bode Plot capability.

Features & Benefits


4 analogue plus 16 digtal channels as standard
1 GHz bandwidth
Serial Bus Trigger and Decode options as standard – I2C, SPI, UART, CAN, LIN, CAN FD, I2S, MIL-1553B, FlexRay
SENT & MANCHESTER decode as standard
Power Analysis software as standard
Long Capture – 125 Mpts/Ch or 250 Mpts interleaved
Bode Plot as standard
Zone Triggering capability. Up to 2 zones with user defined ’intersect’ / ’not intersect’ events
Waveform capture rate up to 120,000 wfm/s (normal mode), and 500,000 wfm/s (sequence mode)
Up to 5 GS/s Sample Rate
Large 10.1”Colour TFT LCD Display
25 MHz function / arbitrary waveform generator software as standard. Requires T3DSO1000-FGMOD-A Module (215-1101)

Applications


Educational laboratories
Electronics troubleshooting and measurement
Embedded electronics
Mixed-signal and video designing
Automotive electronics
Data analysis

The T3DSO31004 digital, Mixed Signal oscilloscope is used in a wide array of applications in a multitude of different industries. The oscilloscope is a vital piece of equipment for any professional who is designing, testing or repairing electronic equipment. Some of the most common are

Need Additional Accessories?


T3DSO1000-FGMOD-A AWG Module (215-1101)
