Teledyne LeCroy T3DSO31004 T3DSO3000 Series, 1GHz Bench Oscilloscope, 4 Analogue Channels, 16 Digital Channels

RS Stock No.:: 224-0968
Distrelec Article No.:: 302-25-479
Mfr. Part No.:: T3DSO31004-PROMO-1
Brand:: Teledyne LeCroy

Teledyne LeCroy T3DSO31004 T3DSO3000 Series, 1GHz Bench Oscilloscope, 4 Analogue Channels, 16 Digital Channels

Unavailable

RS will no longer stock this product.

Alternative

This product is not currently available. Here is our alternative recommendation.

Teledyne LeCroy T3DSO3000HD Series, 1GHz Bench Digital Oscilloscope, 4 Analogue Channels, 16 Digital Channels

RS Stock No.: 217-291

Each

£8,246.65

(exc. VAT)

£9,895.98

(inc. VAT)

RS Stock No.:: 224-0968
Distrelec Article No.:: 302-25-479
Mfr. Part No.:: T3DSO31004-PROMO-1
Brand:: Teledyne LeCroy

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Teledyne LeCroy
	Bandwidth	1GHz
	Number of Analogue Channels	4
	Number of Digital Channels	16
	Oscilloscope Type	Bench
	Interface	USB
	Oscilloscope Form	Mixed Signal
	Memory Depth	250Mpts
	Sample Rate Random	5 Gsps
	Screen Size	10.1in
	Series	T3DSO3000
	Waveform Refresh Rate	120000 (Normal Mode) per sec, 500000 (Sequence Mode) per sec
	Minimum Time Base	0.2ns/div
	Vertical Resolution	8 bit, 11 bit
	Rise Time	0.4ns
	Digital/Analogue	Digital
	Power Source	Mains

	Select all
	Brand Teledyne LeCroy
	Bandwidth 1GHz
	Number of Analogue Channels 4
	Number of Digital Channels 16
	Oscilloscope Type Bench
	Interface USB
	Oscilloscope Form Mixed Signal
	Memory Depth 250Mpts
	Sample Rate Random 5 Gsps
	Screen Size 10.1in
	Series T3DSO3000
	Waveform Refresh Rate 120000 (Normal Mode) per sec, 500000 (Sequence Mode) per sec
	Minimum Time Base 0.2ns/div
	Vertical Resolution 8 bit, 11 bit
	Rise Time 0.4ns
	Digital/Analogue Digital
	Power Source Mains

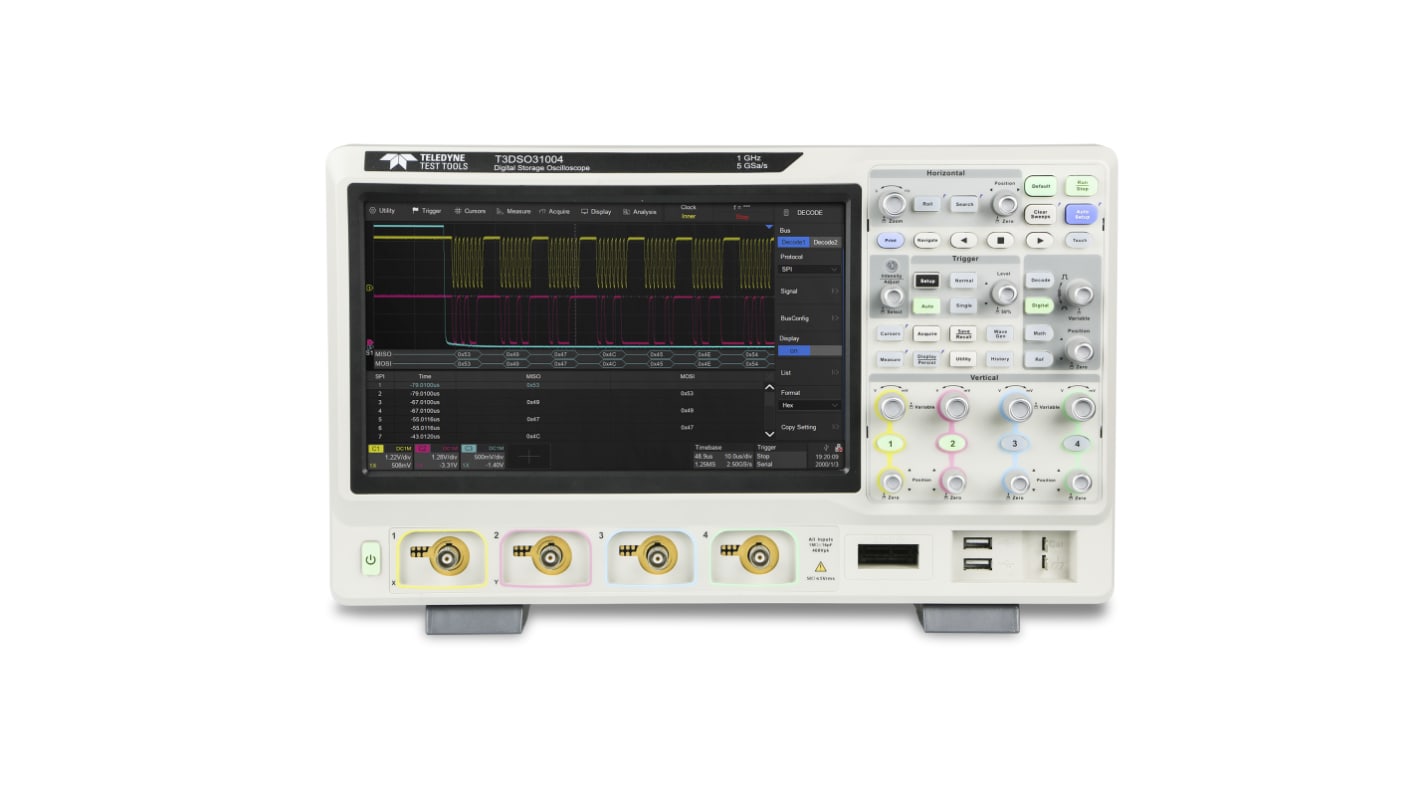

Teledyne LeCroy, T3DSO31004, FULLY LOADED, 16 Channel Mixed Signal Oscilloscope, 1 GHz, 4 Channels

Teledyne LeCroy's new T3DSO31004 Oscilloscope is a four channel model with analog bandwidth of 1 GHz. The model also comes with 16 channel Mixed Signal capability as standard. The T3DSO31004 offers a maximum sample rate of 5 GSa/s, and a maximum memory depth of 250 Mpts in half channel mode. The T3DSO31004 model incorporate two 5 GSa/s ADCs and two 250 Mpts memory modules. When all channels are enabled, each channel has sample rate of 2.5 GSa/s and a standard record length of 125 Mpts. When only a single channel per ADC is active, the maximum sample rate is 5 GSa/s and the maximum record length is 250 Mpts. For ease-of-use, the most commonly used funcons can be accessed with its user-friendly front panel capacitive touch screen design. The T3DSO31004 model comes fully loaded with all Trigger/Decode options as standard alongside Power Analysis and Bode Plot capability.

Features & Benefits

4 analogue plus 16 digtal channels as standard
1 GHz bandwidth
Serial Bus Trigger and Decode options as standard – I2C, SPI, UART, CAN, LIN, CAN FD, I2S, MIL-1553B, FlexRay
SENT & MANCHESTER decode as standard
Power Analysis software as standard
Long Capture – 125 Mpts/Ch or 250 Mpts interleaved
Bode Plot as standard
Zone Triggering capability. Up to 2 zones with user defined ’intersect’ / ’not intersect’ events
Waveform capture rate up to 120,000 wfm/s (normal mode), and 500,000 wfm/s (sequence mode)
Up to 5 GS/s Sample Rate
Large 10.1”Colour TFT LCD Display
25 MHz function / arbitrary waveform generator software as standard. Requires T3DSO1000-FGMOD-A Module (215-1101)

Applications

Educational laboratories
Electronics troubleshooting and measurement
Embedded electronics
Mixed-signal and video designing
Automotive electronics
Data analysis

The T3DSO31004 digital, Mixed Signal oscilloscope is used in a wide array of applications in a multitude of different industries. The oscilloscope is a vital piece of equipment for any professional who is designing, testing or repairing electronic equipment. Some of the most common are
