RS PRO Oscilloscope Probe, Differential Type, 25MHz, 1:20, 1:50, 1:200, BNC Connector
- RS Stock No.:
- 253-9783
- Brand:
- RS PRO
Subtotal (1 unit)*
£315.83
(exc. VAT)
£379.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
- Plus 19 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £315.83 |
*price indicative
- RS Stock No.:
- 253-9783
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Probe Type | Differential | |
Attenuation | 1:20, 1:50, 1:200 | |
Bandwidth | 25MHz | |
Maximum Common Mode Input Voltage | ±35V @ x20, ±87V @ x50, ±350V @ x200 | |
Connector Type | BNC | |
Number of Probes | 1 | |
Safety Category Level | CAT III | |
Safety Category | CAT III | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Probe Type Differential | ||
Attenuation 1:20, 1:50, 1:200 | ||
Bandwidth 25MHz | ||
Maximum Common Mode Input Voltage ±35V @ x20, ±87V @ x50, ±350V @ x200 | ||
Connector Type BNC | ||
Number of Probes 1 | ||
Safety Category Level CAT III | ||
Safety Category CAT III | ||
- COO (Country of Origin):
- TW

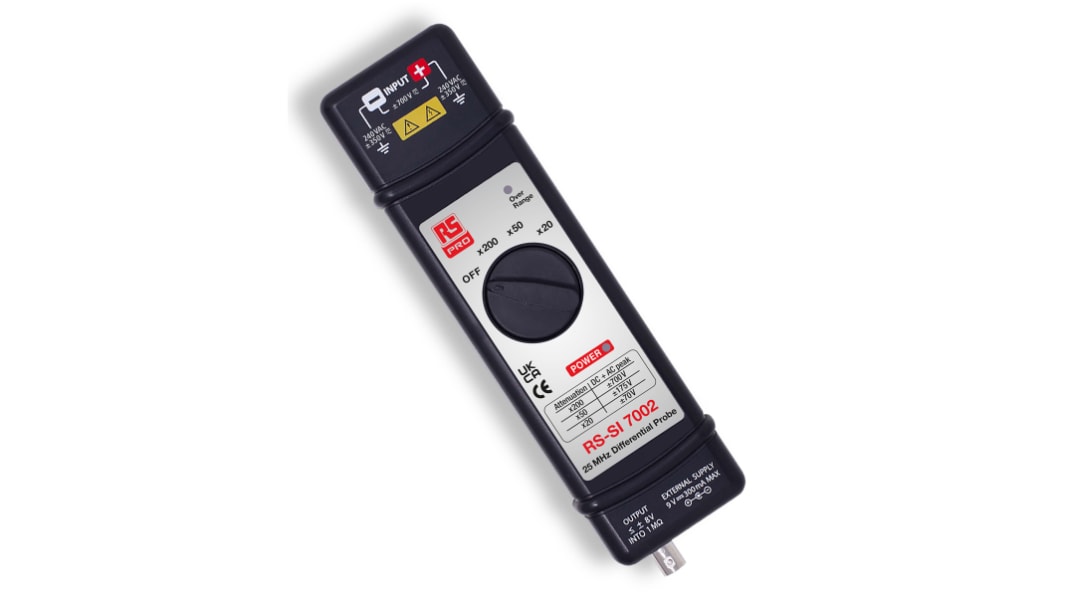

RS PRO Active Differential Oscilloscope Probe
Introducing the range of RS PRO Active Differential Oscilloscope Probes, ideal for safe and accurate measurements between two voltage points where neither are referenced to ground for earthing. The high-performance probe offers a wide bandwidth range of 25 MHz for 50 x and 200 x attenuation settings and allow for a wide variety of measurements along with the compatibility for all major brands and manufacturers of oscilloscopes. The user-friendly interface and the versatility of this range of oscilloscopes make it an ideal choice for applications that may require more functionality around measurement parameters.
Features and Benefits:
- This range of RS PRO active differential oscilloscopes ensures a safe and accurate measurement between two voltage points that are ungrounded and is the perfect plug and play solution to applications where all in one functionality is required for a wide range of measurement parameters
- It has a sleek and professional design that looks the part, while ensure ultimate reliability and performance, so the accuracy and quality of the measurement is never compromised
- This probe offers of a wide range of automatic measurement functions, as well as a variety of trigger functions for ultimate versatility
- Supplied with a power cable, insulated BNC cable, 2 x test leads with insulated banana plugs, 2 x grabbers and user manual for the oscilloscope probe
Applications:
Digital oscilloscopes are complex and multi-functional electronic laboratory instruments used to capture, process, display and analyse the waveform and bandwidth of electronic signals. DSO versions have a memory to store waveforms and display them over a period of time. Oscilloscopes are used in a wide range of industries and can be used for:
- Circuit measurement
- Wind power, PV power and other new energy equipment test
- Automotive electron, electric automobile test
- Electric power system, strong electricity test
- Industry scenes electric debug testing and measuring
- Education and science research
- Quality control
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
