Testec 8000 Series TT-SI 8052 Oscilloscope Probe, Differential Type, 200MHz, 1:50 / 1:500dB, BNC Connector

View all Oscilloscope Probes

Subtotal (1 unit)*

£1,245.07

(exc. VAT)

£1,494.08

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£1,245.07

*price indicative

RS Stock No.:
238-7386
Distrelec Article No.:
302-52-708
Mfr. Part No.:
TT-SI 8052
Brand:
Testec
Find similar products by selecting one or more attributes.
Select all

Brand

Testec

Probe Type

Differential

Attenuation

1:50 / 1:500dB

Bandwidth

200MHz

Maximum Common Mode Input Voltage

±1500 (DC+AC Peak)V

Connector Type

BNC

Model Number p

TT-SI 8052

Number of Probes

1

Safety Category Level

CAT III

Safety Category Voltage

600V

Series

8000

Safety Category

IEC61010-031:2015

Rise Time

75 ns, =1 ns

COO (Country of Origin):
CN

TT-SI 8052
active differential probe


The Testec active differential probe TT-SI 8052 allows safe and accurate high voltage measurements between two voltage points, none being connected to ground. This probe is designed for a variety of measurements with up to 200MHz / ±1500V and compatible with grounded oscilloscopes (1MOhm input) of all common manufacturers. The probe can be powered with the supplied USB cable and the AC adapter.
The probe is supplied in a hardcase with extensive accessories and factory calibration certificate.

Bandwidth: 200MHz
Rise time: 1,75ns
Attenuation ratio: x50 / x500
DC accuracy: ±2%
Maximum input voltage:
Differential mode: ±150V (DC + AC Peak) @ x50
±1500V (DC + AC Peak) @ x500
Common mode: ±1500V (DC + Peak AC)
Each side to ground: 600Vrms CAT III / 1000Vrms CAT II
Safety standard: IEC61010-031: 2015

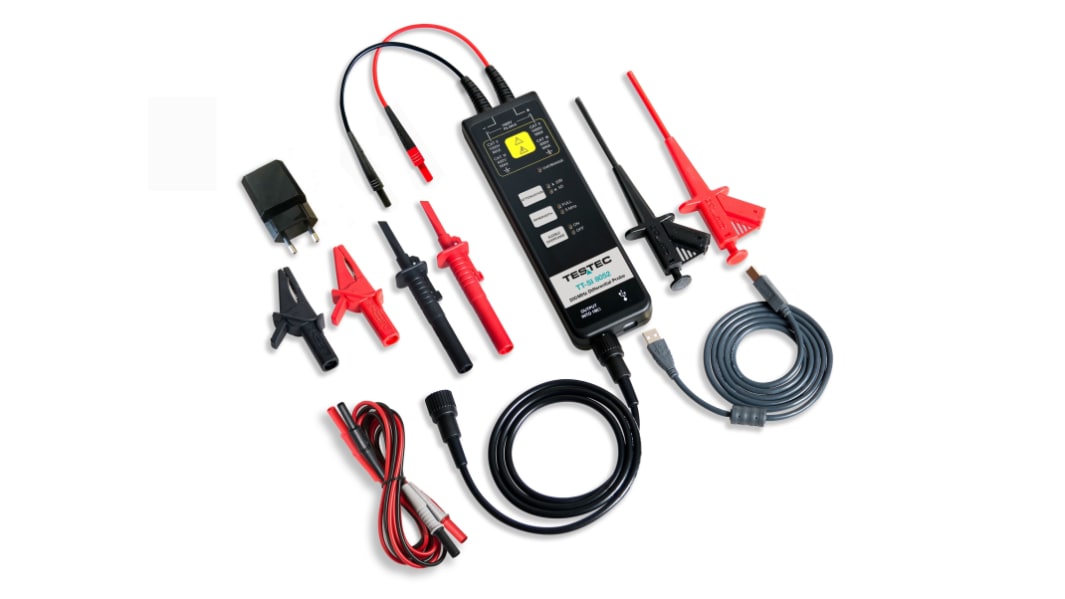

Scope of delivery:


1 x probe series 8000
1 x hardcase
2 x test leads with insulated banana plug 4mm (red & black)
2 x hook clips (red & black)
2 x pincer hook clip (red & black)
2 x crocodile clips (red & black)
1 x insulated BNC test lead 100cm
1 x USB power cord
1 x power adapter EU version
1 x factory calibration certificate
1 x user manual
