Testec 8000 Series TT-SI 8071 Oscilloscope Probe, Active, Differential Type, 70MHz, 1:10 / 1:100dB, BNC Connector
- RS Stock No.:
- 238-7383
- Mfr. Part No.:
- TT-SI 8071
- Brand:
- Testec
3 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£702.77
(exc. VAT)
£843.32
(inc. VAT)
Units | Per unit |
1 + | £702.77 |
- RS Stock No.:
- 238-7383
- Mfr. Part No.:
- TT-SI 8071
- Brand:
- Testec
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
TT-SI 8071
active differential probe
The Testec active differential probe TT-SI 8071 allows safe and accurate high voltage measurements between two voltage points, none being connected to ground. This probe is designed for a variety of measurements with up to 70MHz / ±700V and compatible with grounded oscilloscopes (1MOhm input) of all common manufacturers. The probe can be powered with the supplied USB cable and the AC adapter.
The probe is supplied in a hardcase with extensive accessories and factory calibration certificate.
The probe is supplied in a hardcase with extensive accessories and factory calibration certificate.
Bandwidth: 70MHz
Rise time: 5ns
Attenuation ratio: x10 / x100
DC accuracy: ± 2%
Maximum input voltage:
Differential mode: ±70V (DC + AC Peak) @ x10
±700V (DC + AC Peak) @ x100
Common mode: ±700V (DC + Peak AC)
Each side to ground: 600Vrms CAT III / 1000Vrms CAT II
Safety standard: IEC61010-031: 2015
Rise time: 5ns
Attenuation ratio: x10 / x100
DC accuracy: ± 2%
Maximum input voltage:
Differential mode: ±70V (DC + AC Peak) @ x10
±700V (DC + AC Peak) @ x100
Common mode: ±700V (DC + Peak AC)
Each side to ground: 600Vrms CAT III / 1000Vrms CAT II
Safety standard: IEC61010-031: 2015

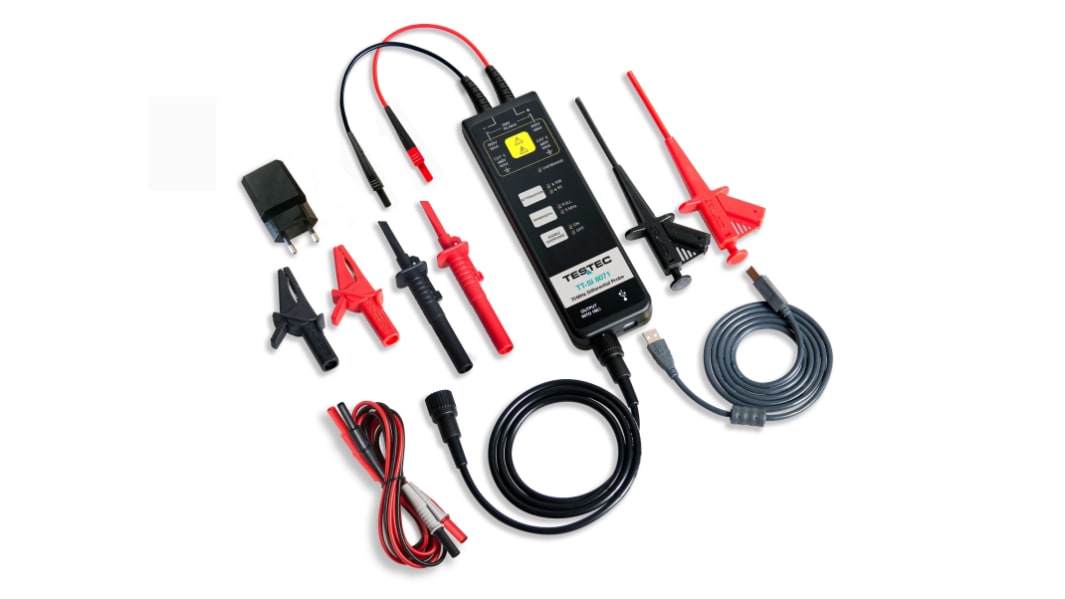

Scope of delivery:
1 x probe series 8000
1 x hardcase
2 x test leads with insulated banana plug 4mm (red & black)
2 x hook clips (red & black)
2 x pincer hook clip (red & black)
2 x crocodile clips (red & black)
1 x insulated BNC test lead 100cm
1 x USB power cord
1 x power adapter EU version
1 x factory calibration certificate
1 x user manual
1 x hardcase
2 x test leads with insulated banana plug 4mm (red & black)
2 x hook clips (red & black)
2 x pincer hook clip (red & black)
2 x crocodile clips (red & black)
1 x insulated BNC test lead 100cm
1 x USB power cord
1 x power adapter EU version
1 x factory calibration certificate
1 x user manual
Specifications
Attribute | Value |
---|---|
Probe Type | Active, Differential |
Attenuation | 1:10 / 1:100dB |
Bandwidth | 70MHz |
Maximum Common Mode Input Voltage | ±700 (DC+AC Peak)V |
Connector Type | BNC |
Model Number p | TT-SI 8071 |
Number of Probes | 1 |
Safety Category Level | CAT III |
Safety Category Voltage | 600V |
Series | 8000 |
Safety Category | IEC61010-031:2015 |
Rise Time | =5ns |
