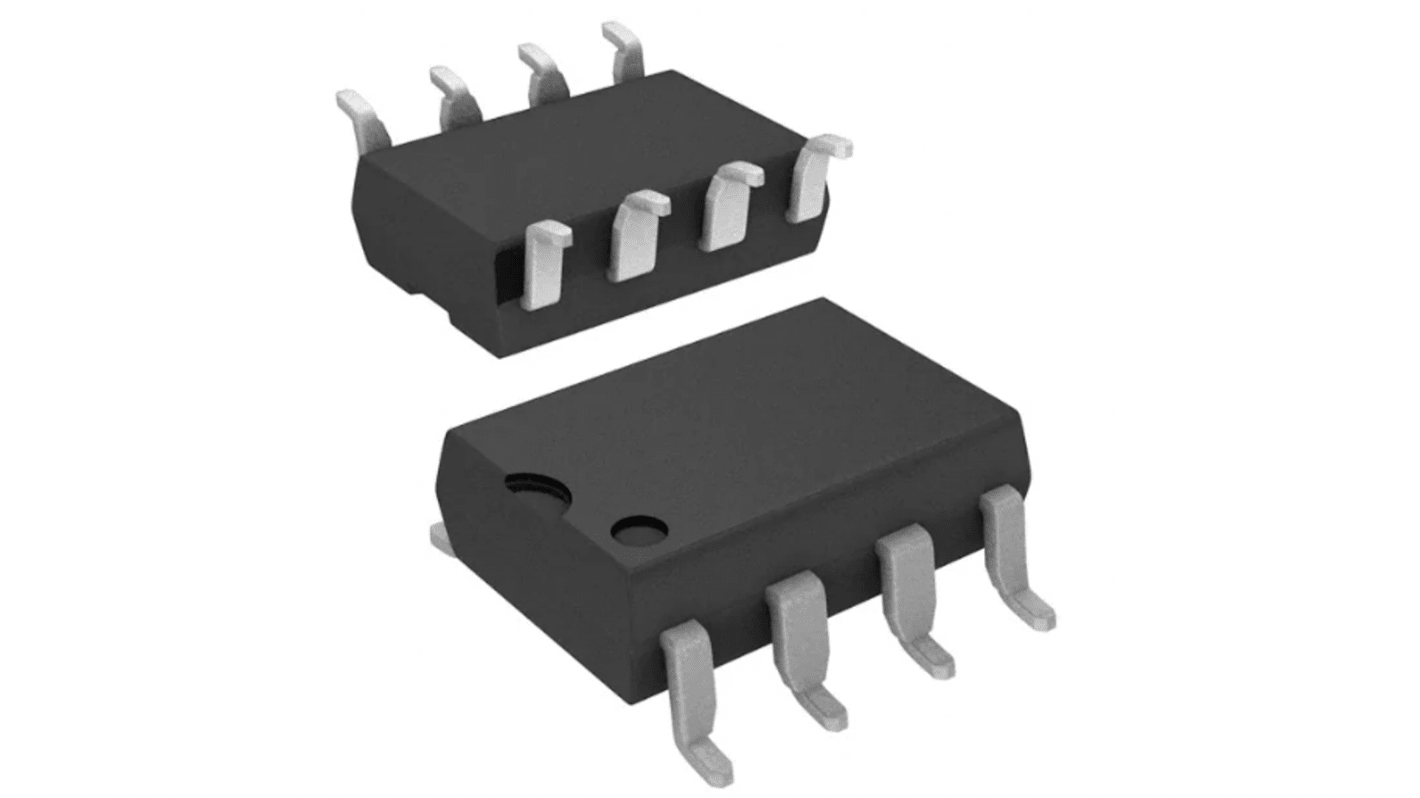

Broadcom DC Input Optocoupler, Through Hole, 8-Pin SO

View all Optocouplers
Bulk discount available

Subtotal (1 pack of 5 units)*

£9.13

(exc. VAT)

£10.955

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 1,785 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
Per Pack*
5 - 45£1.826£9.13
50 - 120£1.198£5.99
125 - 245£1.046£5.23
250 - 495£0.996£4.98
500 +£0.942£4.71

*price indicative

RS Stock No.:
174-4142
Mfr. Part No.:
HCNW139-500E
Brand:
Broadcom
Find similar products by selecting one or more attributes.
Select all

Brand

Broadcom

Mount Type

Through Hole

Product Type

Optocoupler

Maximum Forward Voltage

1.85V

Number of Channels

1

Packaging

Tape & Reel

Number of Pins

8

Package Type

SO

Input Current Type

DC

Maximum Input Current

500μA

Isolation Voltage

5kV

Logic Output

Yes

Minimum Operating Temperature

0°C

Maximum Current Transfer Ratio

4500%

Maximum Operating Temperature

70°C

Minimum Current Transfer Ratio

400%

Standards/Approvals

IEC/EN/DIN EN 60747-5-5, RoHS, CSA, UL

Series

HCNW

Automotive Standard

No

The Broadcom high gain optocoupler series uses a Light Emitting Diode and an integrated high gain photodetector to provide extremely high current transfer ratio between input and output. Separate pins for the photodiode and output stage result in TTL compatible saturation voltages and high speed operation. Where desired VCC and VO terminals may be tied together to achieve convention photo Darlington operation. A base access terminal allows a gain bandwidth adjustment to be made.

High Current Transfer Ratio - 4500% Typical

Low Input Current Requirements - 0.5 mA

TTL Compatible Output - 0.1V VOL Typical

Performance Guaranteed over Temperature 0 degrees C to 70 degrees C

Base Access Allows Gain Bandwidth Adjustment

High Output Current - 60 mA
