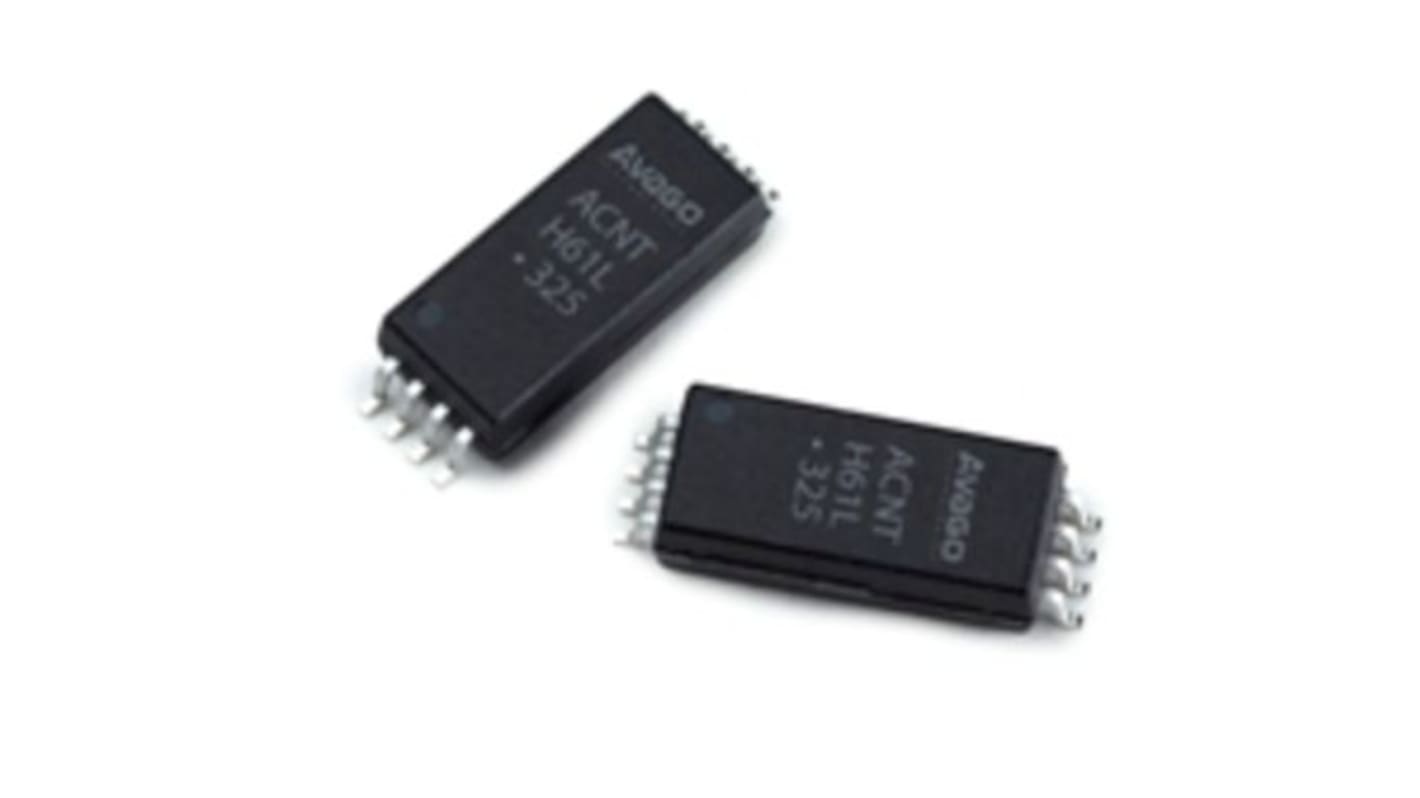

Broadcom, ACNT-H61L-500E CMOS Output Optocoupler, Surface Mount, 8-Pin SO
- RS Stock No.:
- 216-3584
- Mfr. Part No.:
- ACNT-H61L-500E
- Brand:
- Broadcom
Subtotal (1 reel of 1000 units)*
£2,300.00
(exc. VAT)
£2,760.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
1000 + | £2.30 | £2,300.00 |
*price indicative
- RS Stock No.:
- 216-3584
- Mfr. Part No.:
- ACNT-H61L-500E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Broadcom | |
Mounting Type | Surface Mount | |
Output Device | CMOS | |
Maximum Forward Voltage | 1.85V | |
Number of Channels | 1 | |
Number of Pins | 8 | |
Package Type | SO | |
Series | ACNT | |
Select all | ||
---|---|---|
Brand Broadcom | ||
Mounting Type Surface Mount | ||
Output Device CMOS | ||
Maximum Forward Voltage 1.85V | ||
Number of Channels 1 | ||
Number of Pins 8 | ||
Package Type SO | ||
Series ACNT | ||
The Broadcom ACNT-H61L is a low-power digital optocoupler device in 15mm wide creepage and 14.2mm clearance that combines a light emitting diode (LED) and an integrated high gain photo detector designed to provide optically isolated interface for system control and data communications interface. The device is extremely low power, consuming up to 2 mA of supply current across wide temperature range. The LED forward current operates from 4.5 mA.
Low power supply current (IDD): 2 mA max
Low input current capability: 4.5 mA min
20 kV/μs min common mode rejection (CMR) at VCM = 1,000 V
High speed interface: 10 MBd min
Guaranteed AC and DC performance over wide temperature: -40 °C to +105 °C
15mm Stretched SO8 package
Internal clearance: 0.5 mm
Low input current capability: 4.5 mA min
20 kV/μs min common mode rejection (CMR) at VCM = 1,000 V
High speed interface: 10 MBd min
Guaranteed AC and DC performance over wide temperature: -40 °C to +105 °C
15mm Stretched SO8 package
Internal clearance: 0.5 mm
