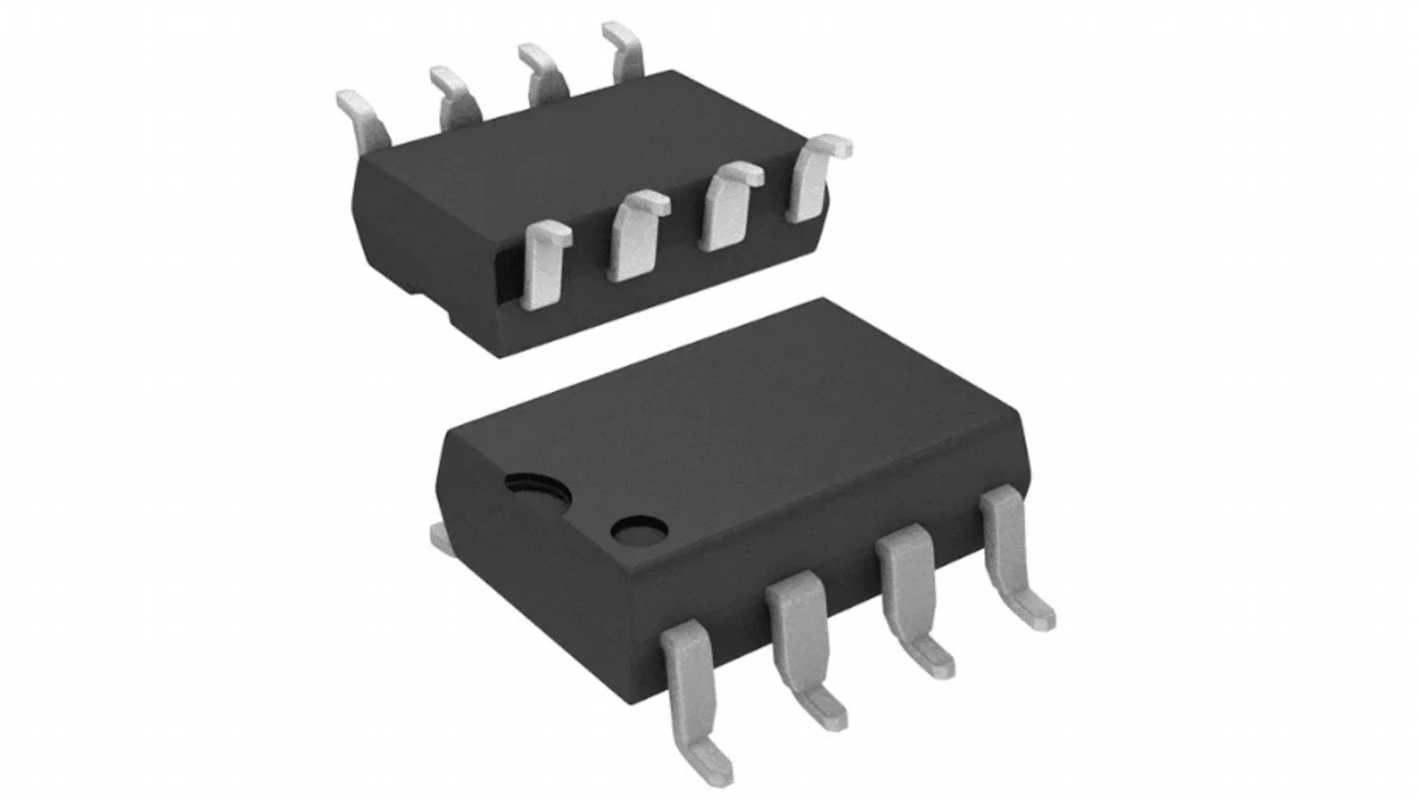

Broadcom, HCNW139-500E TTL Output Optocoupler, Through Hole, 8-Pin SO
- RS Stock No.:
- 174-3638
- Mfr. Part No.:
- HCNW139-500E
- Brand:
- Broadcom
Subtotal (1 reel of 750 units)*
£566.25
(exc. VAT)
£679.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 750 + | £0.755 | £566.25 |
*price indicative
- RS Stock No.:
- 174-3638
- Mfr. Part No.:
- HCNW139-500E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Mounting Type | Through Hole | |
| Output Device | TTL | |
| Maximum Forward Voltage | 1.85V | |
| Number of Channels | 1 | |
| Number of Pins | 8 | |
| Package Type | SO | |
| Maximum Input Current | 500 μA | |
| Isolation Voltage | 5 kV | |
| Logic Output | Yes | |
| Maximum Current Transfer Ratio | 4500% | |
| Minimum Current Transfer Ratio | 400% | |
| Series | HCNW | |
Select all | ||
|---|---|---|
Brand Broadcom | ||
Mounting Type Through Hole | ||
Output Device TTL | ||
Maximum Forward Voltage 1.85V | ||
Number of Channels 1 | ||
Number of Pins 8 | ||
Package Type SO | ||
Maximum Input Current 500 μA | ||
Isolation Voltage 5 kV | ||
Logic Output Yes | ||
Maximum Current Transfer Ratio 4500% | ||
Minimum Current Transfer Ratio 400% | ||
Series HCNW | ||
The Broadcom HCNW139 is for use in CMOS, LSTTL, or other low power application. A 400% minimum current transfer ratio is guaranteed over 0 to 70 degrees C operating range for only 0.5 mA of LED current. Selection for lower input current down to 250 mA is available upon request. The HCNW139 is packaged in a wide body encapsulation that provides creepage and clearance dimensions suitable for safety approval by regulatory agencies worldwide.
High Current Transfer Ratio - 4500% Typical
Low Input Current Requirements - 0.5 mA
TTL Compatible Output - 0.1V VOL Typical
Performance Guaranteed over Temperature 0 degrees C to 70 degrees C
Base Access Allows Gain Bandwidth Adjustment
High Output Current - 60 mA
Low Input Current Requirements - 0.5 mA
TTL Compatible Output - 0.1V VOL Typical
Performance Guaranteed over Temperature 0 degrees C to 70 degrees C
Base Access Allows Gain Bandwidth Adjustment
High Output Current - 60 mA
