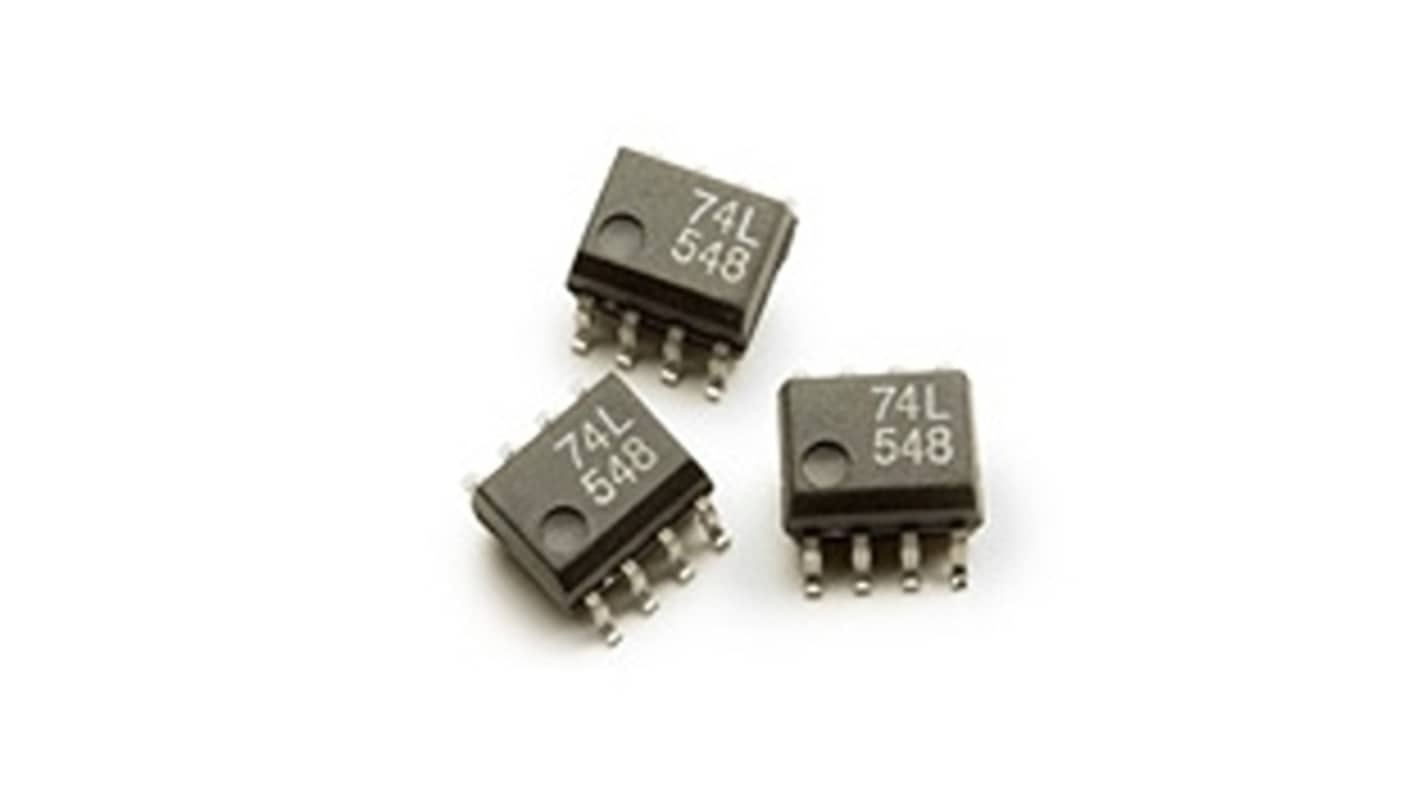

Broadcom, ACPL-074L-500E DC Input CMOS Output Dual Optocoupler, Surface Mount, 8-Pin SOIC8
- RS Stock No.:
- 242-558
- Mfr. Part No.:
- ACPL-074L-500E
- Brand:
- Broadcom
Bulk discount available
Subtotal (1 tape of 1 unit)*
£5.13
(exc. VAT)
£6.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,049 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tape(s) | Per Tape |
|---|---|
| 1 - 9 | £5.13 |
| 10 - 99 | £4.61 |
| 100 - 499 | £4.26 |
| 500 - 999 | £3.95 |
| 1000 + | £3.54 |
*price indicative
- RS Stock No.:
- 242-558
- Mfr. Part No.:
- ACPL-074L-500E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Mounting Type | Surface Mount | |
| Output Device | CMOS | |
| Maximum Forward Voltage | 1.8V | |
| Number of Channels | 2 | |
| Number of Pins | 8 | |
| Package Type | SOIC8 | |
| Input Current Type | DC | |
Select all | ||
|---|---|---|
Brand Broadcom | ||
Mounting Type Surface Mount | ||
Output Device CMOS | ||
Maximum Forward Voltage 1.8V | ||
Number of Channels 2 | ||
Number of Pins 8 | ||
Package Type SOIC8 | ||
Input Current Type DC | ||
The Broadcom CMOS Optocouplers leverage the latest CMOS IC technology to deliver exceptional performance with minimal power consumption. Each detector integrates a photodiode, a high-speed transimpedance amplifier, a voltage comparator, and an output driver, ensuring fast and reliable signal transmission while maintaining energy efficiency. This design makes the optocouplers ideal for applications where low power and high-speed operation are critical.
30 ns max pulse width distortion
30 ns max propagation delay skew
High speed is 15 MBd min
30 ns max propagation delay skew
High speed is 15 MBd min
