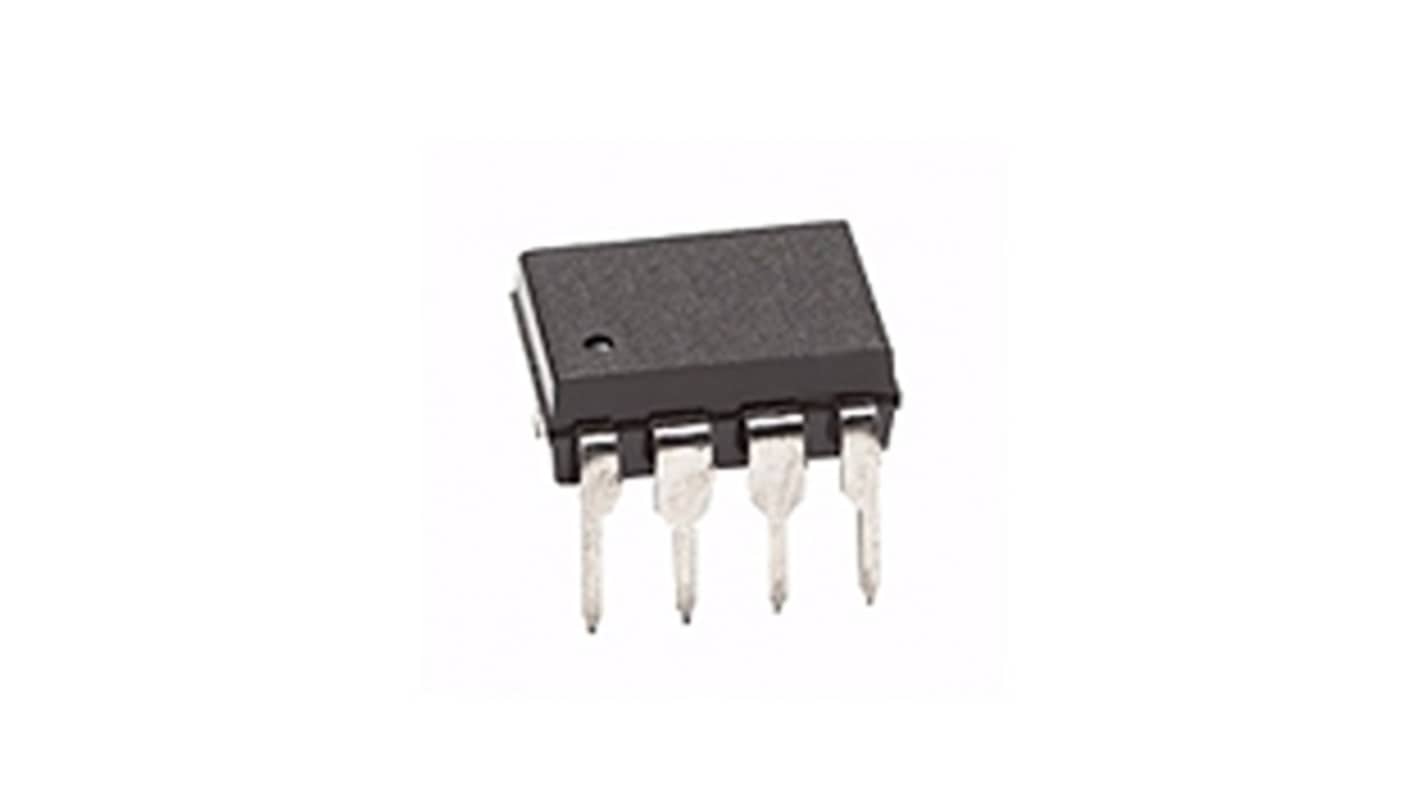

Broadcom, HCPL-2231-500E DC Input CMR Intelligent Power Module, Gate Drive Output Dual Optocoupler, Surface Mount,
- RS Stock No.:
- 242-552
- Mfr. Part No.:
- HCPL-2231-500E
- Brand:
- Broadcom
Bulk discount available
Subtotal (1 tape of 1 unit)*
£5.12
(exc. VAT)
£6.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,950 unit(s) ready to ship
- Plus 999,998,049 unit(s) shipping from 19 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tape(s) | Per Tape |
|---|---|
| 1 - 9 | £5.12 |
| 10 - 99 | £4.61 |
| 100 - 499 | £4.25 |
| 500 - 999 | £3.94 |
| 1000 + | £3.54 |
*price indicative
- RS Stock No.:
- 242-552
- Mfr. Part No.:
- HCPL-2231-500E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Mounting Type | Surface Mount | |
| Output Device | CMR Intelligent Power Module, Gate Drive | |
| Maximum Forward Voltage | 1.7V | |
| Number of Channels | 2 | |
| Number of Pins | 8 | |
| Package Type | SOIC8 | |
| Input Current Type | DC | |
Select all | ||
|---|---|---|
Brand Broadcom | ||
Mounting Type Surface Mount | ||
Output Device CMR Intelligent Power Module, Gate Drive | ||
Maximum Forward Voltage 1.7V | ||
Number of Channels 2 | ||
Number of Pins 8 | ||
Package Type SOIC8 | ||
Input Current Type DC | ||
The Broadcom Optocoupler feature a GaAsP LED and incorporate detectors with totem pole output stages. The optical receiver input stages include built-in Schmitt triggers, ensuring that the output provides logic-compatible waveforms. This design eliminates the need for additional waveshaping, making the optocouplers efficient and easy to integrate into digital systems.
300 ns propagation delay guaranteed over the full temperature range
5 Mbd typical signal rate
5 Mbd typical signal rate
