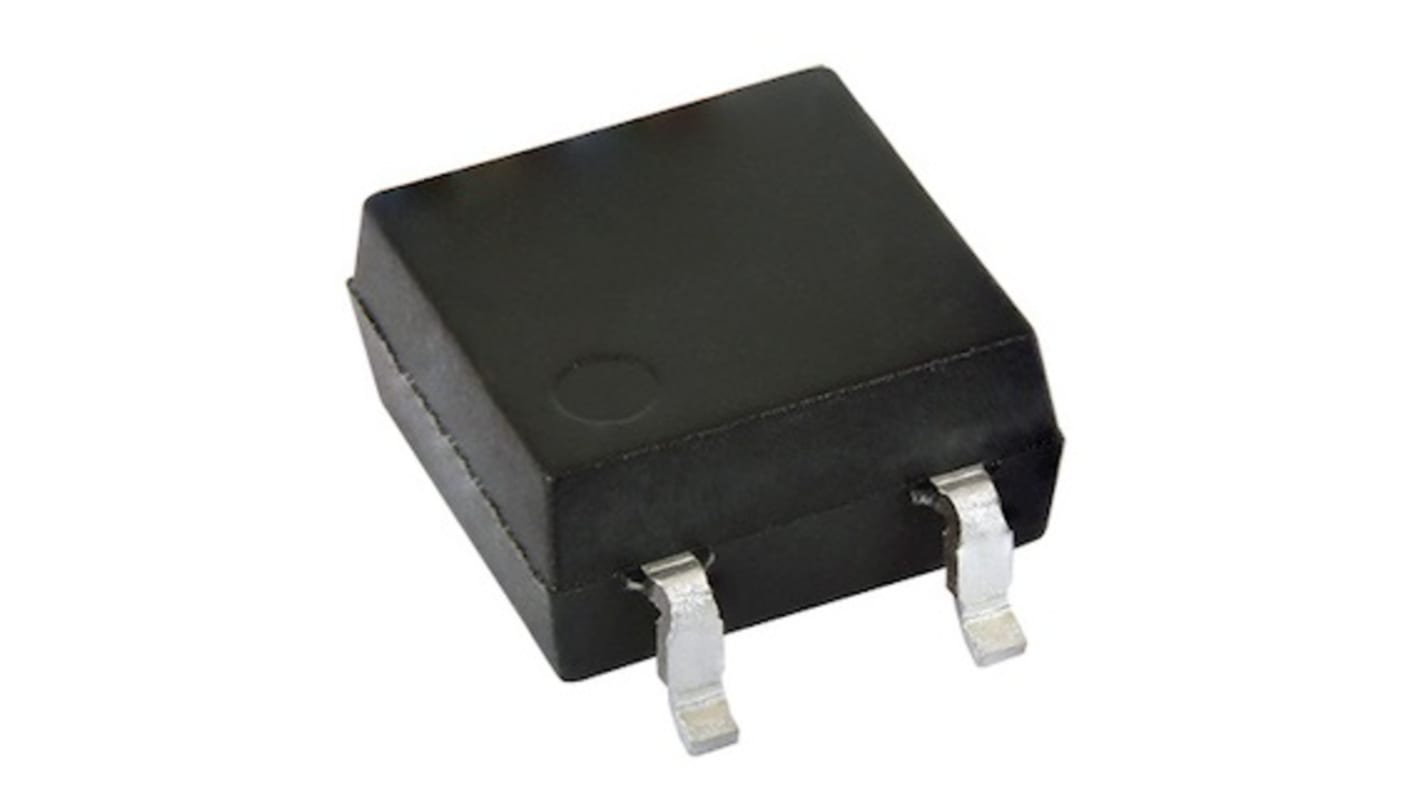

Vishay VOMA617A-3X001T DC Input Optocoupler, Surface Mount, 4-Pin SOP-4
- RS Stock No.:
- 228-066
- Mfr. Part No.:
- VOMA617A-3X001T
- Brand:
- Vishay
Bulk discount available
Subtotal (1 tape of 5 units)*
£6.98
(exc. VAT)
£8.375
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1,930 unit(s) shipping from 12 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 5 - 45 | £1.396 | £6.98 |
| 50 - 95 | £1.326 | £6.63 |
| 100 - 495 | £1.228 | £6.14 |
| 500 - 995 | £1.13 | £5.65 |
| 1000 + | £1.09 | £5.45 |
*price indicative
- RS Stock No.:
- 228-066
- Mfr. Part No.:
- VOMA617A-3X001T
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Optocoupler | |
| Mount Type | Surface Mount | |
| Maximum Forward Voltage | 1.5V | |
| Packaging | Tape & Reel | |
| Number of Channels | 1 | |
| Number of Pins | 4 | |
| Package Type | SOP-4 | |
| Input Current Type | DC | |
| Typical Rise Time | 2.3μs | |
| Maximum Input Current | 20mA | |
| Isolation Voltage | 3750Vrms | |
| Minimum Operating Temperature | -40°C | |
| Logic Output | Yes | |
| Maximum Operating Temperature | 110°C | |
| Maximum Current Transfer Ratio | 600% | |
| Standards/Approvals | DIN EN 60747-5-5 (VDE 0884-5), UL1577, cUL 1577, CQC GB4943.1-2011 | |
| Minimum Current Transfer Ratio | 50% | |
| Typical Fall Time | 3.2μs | |
| Series | VOMA617A | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Optocoupler | ||
Mount Type Surface Mount | ||
Maximum Forward Voltage 1.5V | ||
Packaging Tape & Reel | ||
Number of Channels 1 | ||
Number of Pins 4 | ||
Package Type SOP-4 | ||
Input Current Type DC | ||
Typical Rise Time 2.3μs | ||
Maximum Input Current 20mA | ||
Isolation Voltage 3750Vrms | ||
Minimum Operating Temperature -40°C | ||
Logic Output Yes | ||
Maximum Operating Temperature 110°C | ||
Maximum Current Transfer Ratio 600% | ||
Standards/Approvals DIN EN 60747-5-5 (VDE 0884-5), UL1577, cUL 1577, CQC GB4943.1-2011 | ||
Minimum Current Transfer Ratio 50% | ||
Typical Fall Time 3.2μs | ||
Series VOMA617A | ||
Automotive Standard AEC-Q101 | ||
- COO (Country of Origin):
- MY
The Vishay Infrared Emitting Diode is optically coupled to a silicon Planar phototransistor detector, all housed in a Compact 4 pin mini flat package. It offers a high current transfer ratio at low input currents, ensuring efficient signal transmission. Additionally, it features low coupling capacitance and high isolation voltage, making it Ideal for isolating electrically separated circuits. Designed for high reliability applications, this coupling device is particularly suited for automotive systems and industrial environments where signal integrity and isolation are critical.
AEC Q101 qualified
High CTR with low input current
SOP 4 low profile package
