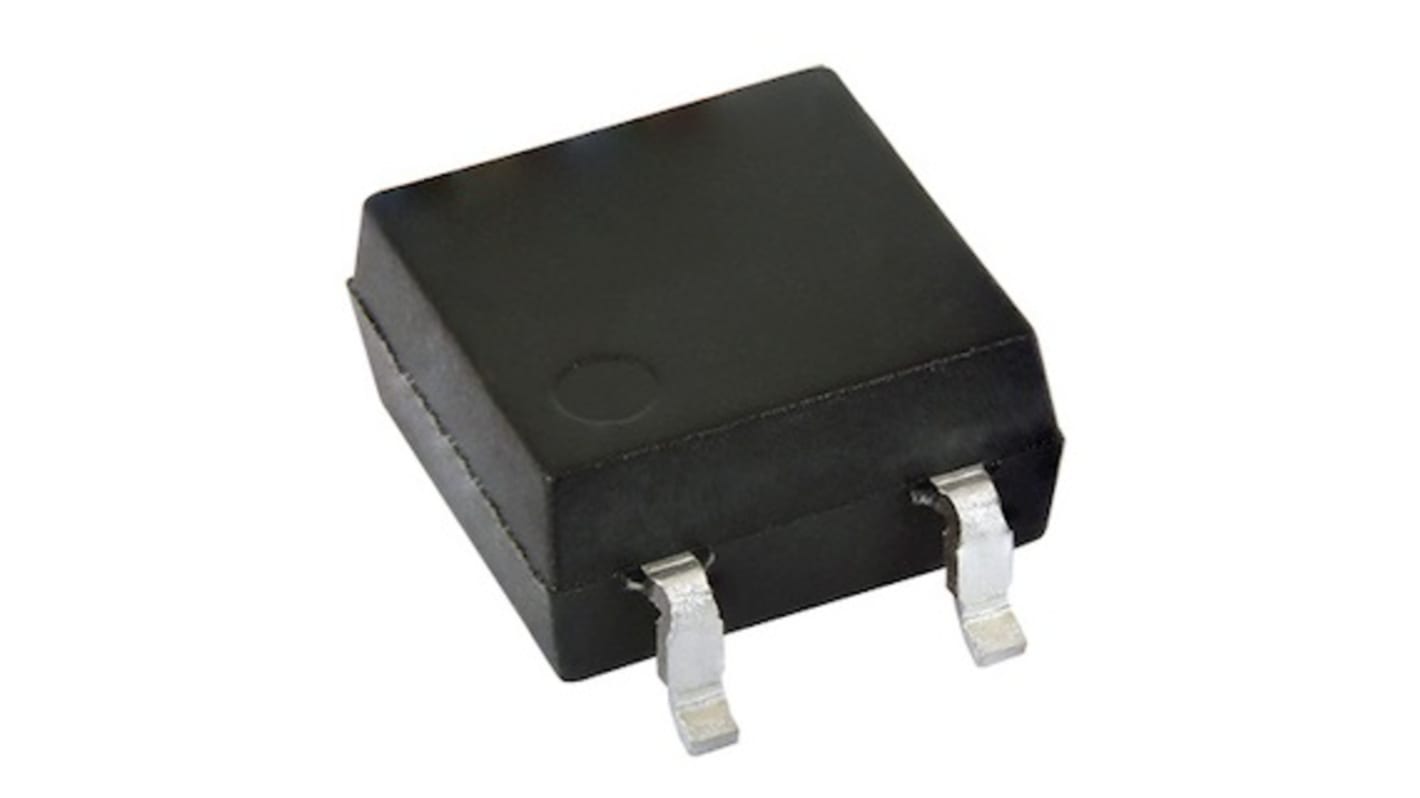

Vishay DC Input Optocoupler, Surface Mount, 4-Pin SOP-4
- RS Stock No.:
- 228-064
- Mfr. Part No.:
- VOMA617A-3X001T
- Brand:
- Vishay
Subtotal (1 reel of 2000 units)*
£1,440.00
(exc. VAT)
£1,720.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 + | £0.72 | £1,440.00 |
*price indicative
- RS Stock No.:
- 228-064
- Mfr. Part No.:
- VOMA617A-3X001T
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mount Type | Surface Mount | |
| Product Type | Optocoupler | |
| Maximum Forward Voltage | 1.5V | |
| Packaging | Tape & Reel | |
| Number of Channels | 1 | |
| Number of Pins | 4 | |
| Package Type | SOP-4 | |
| Input Current Type | DC | |
| Typical Rise Time | 2.3μs | |
| Maximum Input Current | 20mA | |
| Isolation Voltage | 3750Vrms | |
| Logic Output | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 110°C | |
| Maximum Current Transfer Ratio | 600% | |
| Standards/Approvals | DIN EN 60747-5-5 (VDE 0884-5), UL1577, cUL 1577, CQC GB4943.1-2011 | |
| Typical Fall Time | 3.2μs | |
| Minimum Current Transfer Ratio | 50% | |
| Series | VOMA617A | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Mount Type Surface Mount | ||
Product Type Optocoupler | ||
Maximum Forward Voltage 1.5V | ||
Packaging Tape & Reel | ||
Number of Channels 1 | ||
Number of Pins 4 | ||
Package Type SOP-4 | ||
Input Current Type DC | ||
Typical Rise Time 2.3μs | ||
Maximum Input Current 20mA | ||
Isolation Voltage 3750Vrms | ||
Logic Output Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 110°C | ||
Maximum Current Transfer Ratio 600% | ||
Standards/Approvals DIN EN 60747-5-5 (VDE 0884-5), UL1577, cUL 1577, CQC GB4943.1-2011 | ||
Typical Fall Time 3.2μs | ||
Minimum Current Transfer Ratio 50% | ||
Series VOMA617A | ||
Automotive Standard AEC-Q101 | ||
- COO (Country of Origin):
- MY
The Vishay Infrared Emitting Diode is optically coupled to a silicon Planar phototransistor detector, all housed in a Compact 4 pin mini flat package. It offers a high current transfer ratio at low input currents, ensuring efficient signal transmission. Additionally, it features low coupling capacitance and high isolation voltage, making it Ideal for isolating electrically separated circuits. Designed for high reliability applications, this coupling device is particularly suited for automotive systems and industrial environments where signal integrity and isolation are critical.
AEC Q101 qualified
High CTR with low input current
SOP 4 low profile package
