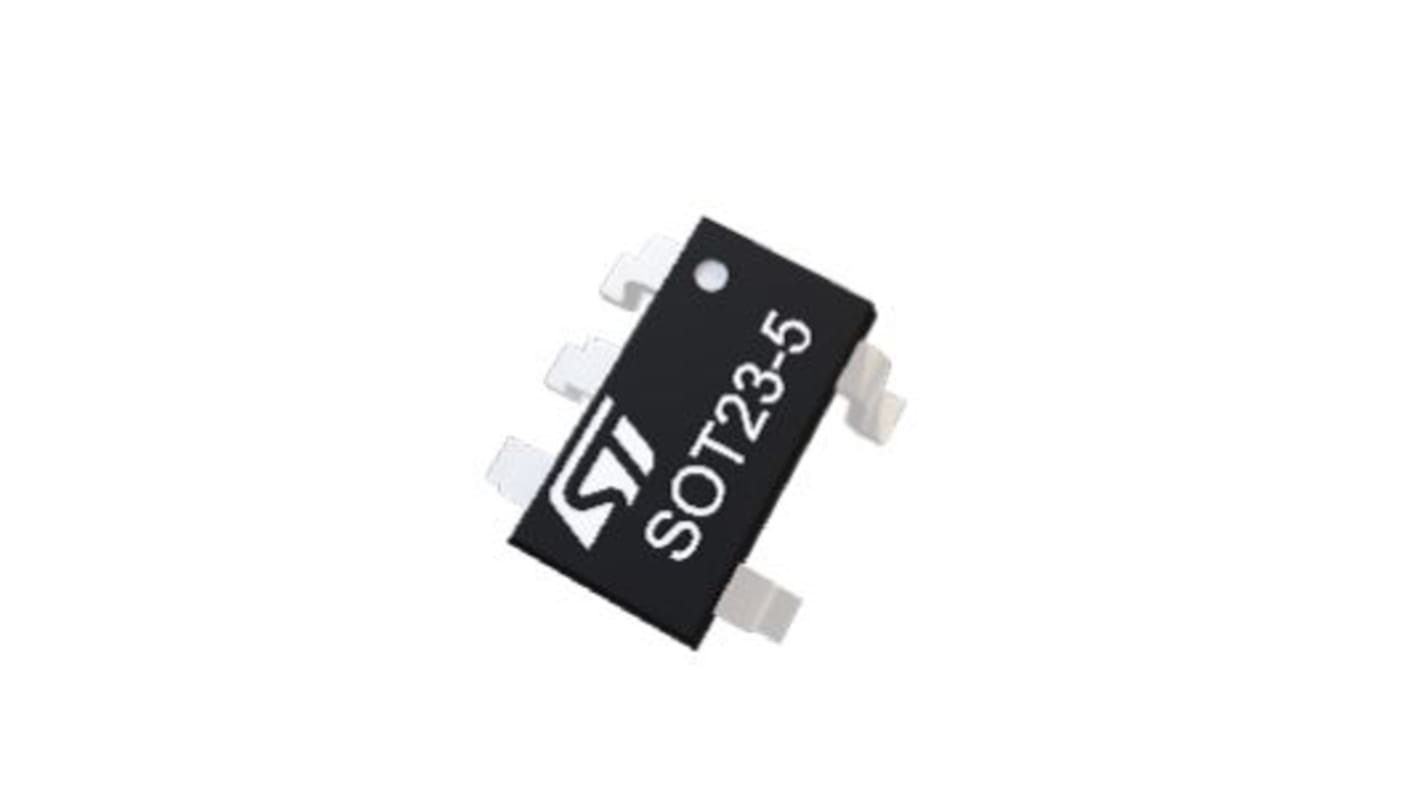

TSV791IYLT STMicroelectronics, Operational Amplifier, Op Amp, RRIO, 50MHz, 2.2 → 5.5 V, 5-Pin SOT23-5

View all Op Amps

Subtotal (1 reel of 3000 units)*

£2,334.00

(exc. VAT)

£2,802.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 23 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 +£0.778£2,334.00

*price indicative

RS Stock No.:
240-7335
Mfr. Part No.:
TSV791IYLT
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Amplifier Type

Operational Amplifier

Mounting Type

Surface Mount

Package Type

SOT23-5

Power Supply Type

Dual, Single

Number of Channels per Chip

1

Pin Count

5

Typical Single Supply Voltage

2.2 → 5.5 V

Typical Gain Bandwidth Product

50MHz

Rail to Rail

Rail to Rail Input/Output

The STMicroelectronics single and dual 50 MHz-bandwidth unity-gain-stable amplifiers. The rail-to-rail input stage and the slew rate of 30 V/μs make the TSV791 and TSV792 ideal for low-side current measurement. The excellent accuracy provided by maximum input voltage of 200 μV allows amplifying accurately small amplitude input signal. The TSV79x can operate from a 2.2 V to 5.5 V single supply

it can typically handle an output capacitor up to 1 nF and is fully specified on a load of 22 pF, therefore allowing easy usage as A/D converters input buffer.

Slew rate 30 V/μs
Low input offset voltage
Low input bias current
Low input voltage noise density
Rail-to-rail input and output
Extended temperature range
