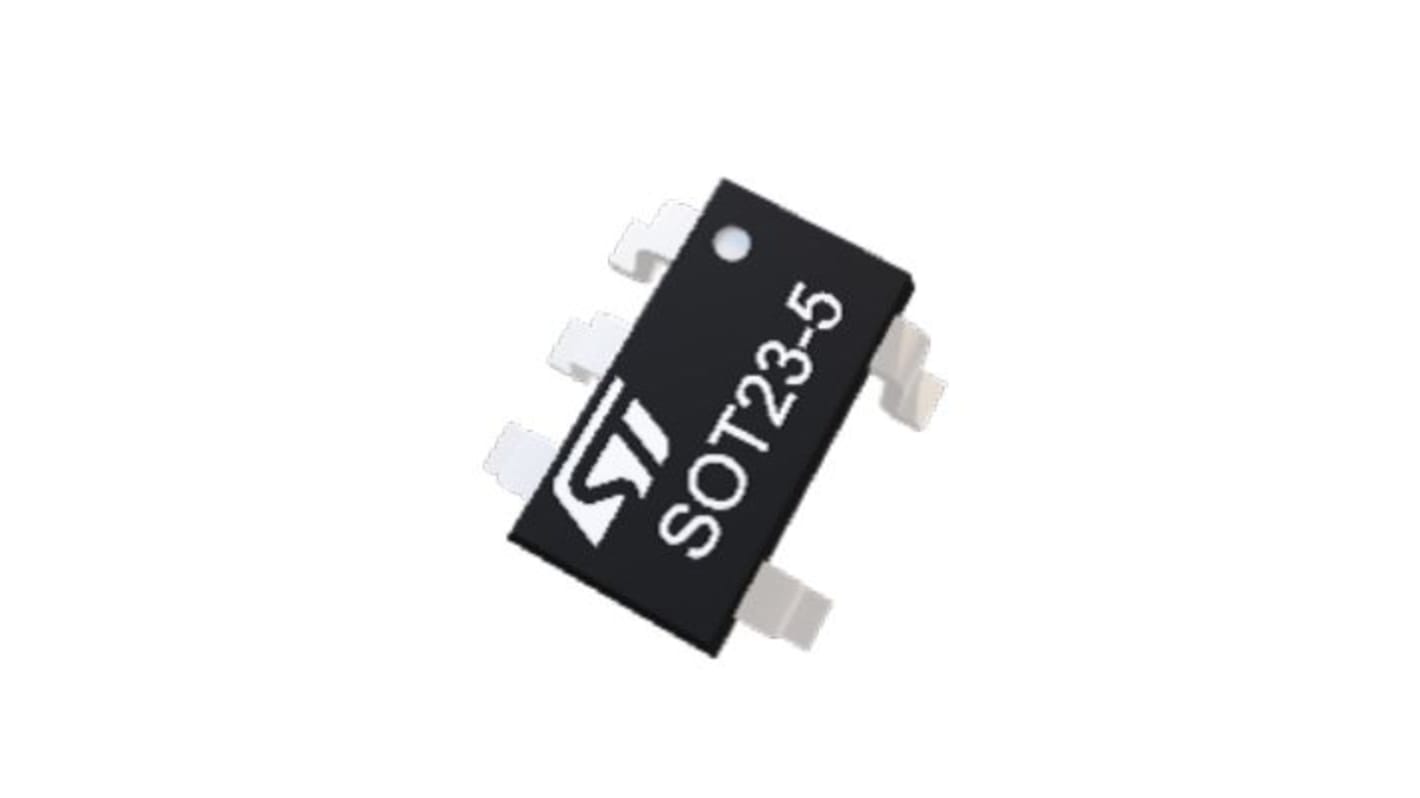

TSV791ILT STMicroelectronics, Operational Amplifier, 50 MHz, 5-Pin 5.5V SOT-23
- RS Stock No.:
- 239-5552
- Mfr. Part No.:
- TSV791ILT
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 pack of 15 units)*
£11.64
(exc. VAT)
£13.965
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2,760 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 15 - 60 | £0.776 | £11.64 |
| 75 - 135 | £0.766 | £11.49 |
| 150 - 360 | £0.757 | £11.36 |
| 375 + | £0.748 | £11.22 |
*price indicative
- RS Stock No.:
- 239-5552
- Mfr. Part No.:
- TSV791ILT
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | SOT-23 | |
| Number of Channels | 1 | |
| Pin Count | 5 | |
| GBP - Gain Bandwidth Product | 50MHz | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Supply Voltage | 5.5V | |
| Vos - Input Offset Voltage | 50 μV | |
| Minimum Operating Temperature | -40°C | |
| Slew Rate | 30V/μs | |
| Input Bias Current | 75 pA | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | ESDA-JS-001-2017 | |
| Length | 3mm | |
| Height | 1.45mm | |
| Series | TSV791 | |
| Automotive Standard | AEC-Q100, AEC-Q3 | |
| Input Offset Current | 20 pA | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type SOT-23 | ||
Number of Channels 1 | ||
Pin Count 5 | ||
GBP - Gain Bandwidth Product 50MHz | ||
Minimum Supply Voltage 2.7V | ||
Maximum Supply Voltage 5.5V | ||
Vos - Input Offset Voltage 50 μV | ||
Minimum Operating Temperature -40°C | ||
Slew Rate 30V/μs | ||
Input Bias Current 75 pA | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals ESDA-JS-001-2017 | ||
Length 3mm | ||
Height 1.45mm | ||
Series TSV791 | ||
Automotive Standard AEC-Q100, AEC-Q3 | ||
Input Offset Current 20 pA | ||
The STMicroelectronics TSV791 and TSV792 are single and dual 50 MHz-bandwidth unity-gain-stable amplifiers. The rail-to-rail input stage and the slew rate of 30 V/μs make the TSV791 and TSV792 ideal for low-side current measurement. The excellent accuracy provided by maximum input voltage of 200 μV allows amplifying accurately small-amplitude input signal. The TSV79x can operate from a 2.2 V to 5.5 V single supply; it can typically handle an output capacitor up to 1 nF and is fully specified on a load of 22 pF, therefore allowing easy usage as A/D converters input buffer.
Rail-to-rail input and output
Extended temperature range: - 40 °C to +125 °C
Automotive grade version available
Accuracy of measurement virtually unaffected by noise
Signal conditioning for high frequencies
Gain bandwidth product 50 MHz, unity gain stable
Slew rate 30 V/μs
