Testo 760-1 Handheld Digital Multimeter, 10A ac Max, 10A dc Max, 600V ac Max - RS Calibrated

View all Multimeters

Subtotal (1 unit)*

£136.39

(exc. VAT)

£163.67

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 12 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£136.39

*price indicative

RS Stock No.:
905-6847
Mfr. Part No.:
0590 7601
Brand:
Testo
Find similar products by selecting one or more attributes.
Select all

Brand

Testo

Multimeter Type

Handheld

Display Type

Digital

Model Number p

760-1

Functions Measured

AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance

Calibrated

RSCAL

Absolute Maximum DC Voltage Measurement

600V dc

Absolute Maximum AC Voltage Measurement

600V ac

Absolute Maximum Resistance Measurement

40MΩ

Absolute Maximum AC Current Measurement

10A ac

Absolute Maximum DC Current Measurement

10A dc

Absolute Maximum Capacitance Measurement

100µF

Absolute Maximum Temperature Measurement

+500°C

True RMS

No

Maximum Frequency

500kHz

Safety Category Level

CAT III, CAT IV

Best AC Voltage Accuracy

0.8 %

Best Temperature Measurement Accuracy

0.8 %

Best DC Voltage Accuracy

0.8 %

Dimensions

167 x 84 x 45mm

Maximum Operating Temperature

+50°C

Best Capacitance Measurement Accuracy

0.8 %

Safety Category Voltage

300 V, 600V

Weight

268g

Height

45mm

Minimum Operating Temperature

-10°C

Best Resistance Measurement Accuracy

0.8 %

Length

167mm

Best AC Current Accuracy

0.8 %

Width

84mm

COO (Country of Origin):
CN

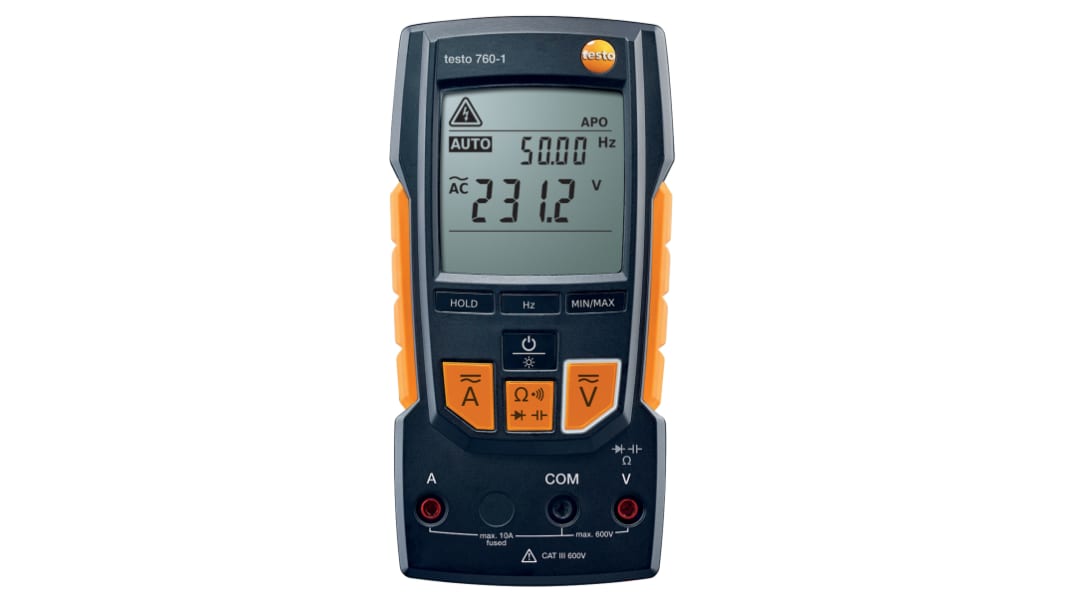

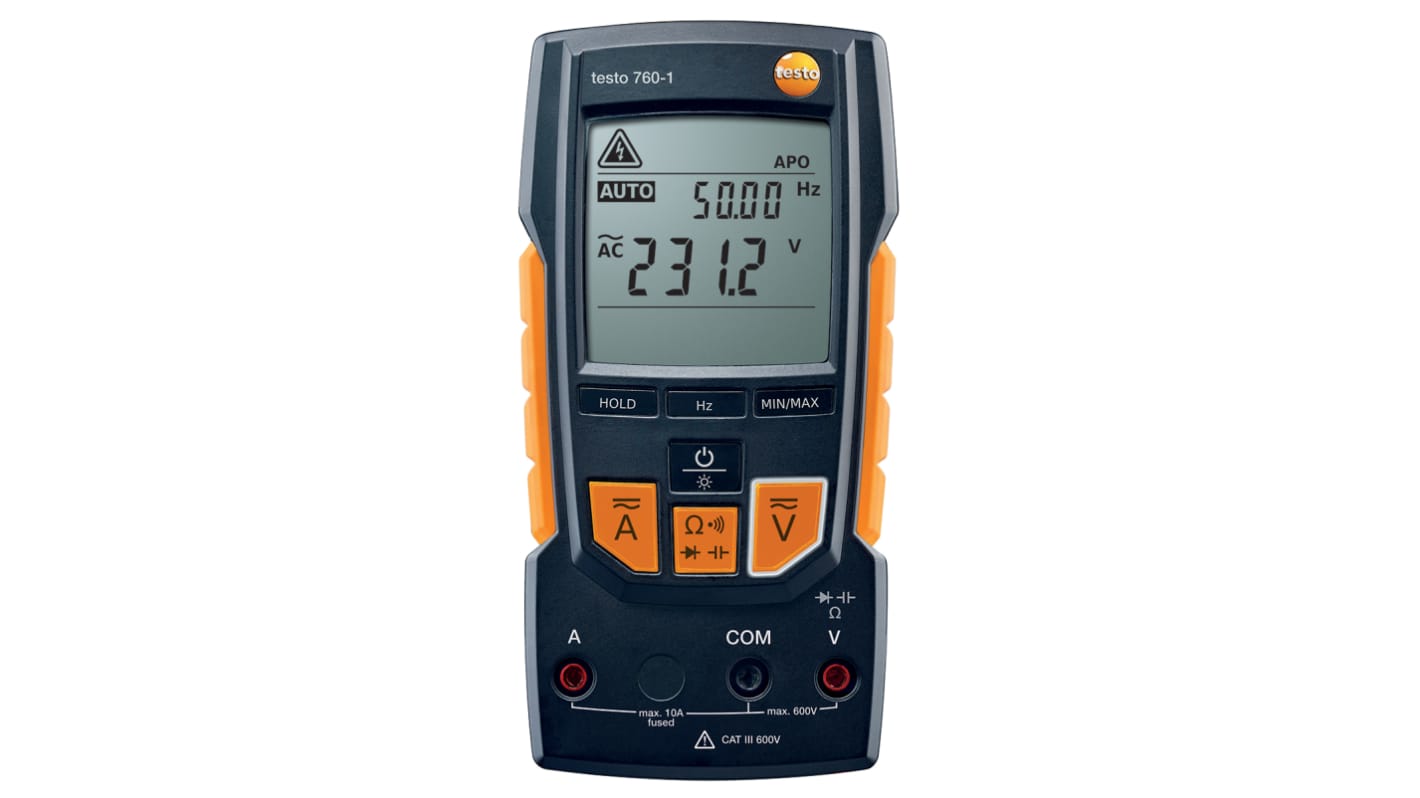

Testo 760-1 Digital Multimeter


The Testo 760-1 digital multimeter, one of three available in the range. The 760 series is designed for important electrical measuring tasks offering new function keys that replace the traditional dial which means easier operation and greater reliability. Incorrect settings are now impossible, because the measurement parameters are detected automatically via the assignment of the measuring sockets and also shown by the illumination of the appropriate function keys.

Features and Benefits


• Testo 760-1 digital multimeter
• Easy, modern operation with function keys instead of a dial
• Measurement parameter detection and selection via the socket assignment
• Prevents incorrect settings
• Large, backlit display
• IP64 Rated
• 0.8% accuracy
• 10A ac, 600 V ac
• Measurement Category: CAT IV 300 V, CAT III 600 V

Testo 760 Digital Multimeters


• Testo 760-1 = RS Stock no: 905-5885 (Includes batteries and 1 set of measuring cables)
• Testo 760-2 = RS Stock no: 905-5888 (Includes batteries, 1 set of measuring cables and 1 x adapter for type K thermocouples)
• Testo 760-3 = RS Stock no: 905-5882 (Includes batteries and 1 set of measuring cables)

Why would you buy it?


The Testo 760-1 is the perfect tool to handle all your electrical measurement needs. The exclusive auto test-setup feature detects your lead connection and prevents switching between volts and amps to prevent damage if the leads aren’t in the proper sockets.

FAQ’s


Q: Can I use this to test if a fuse is good or bad?
A: Yes, you can check a fuse functionality via a continuity test.

Q: Is this multimeter suitable for automotive use?
A: Yes, this multimeter is perfect for automotive applications and much more.

Q: Does this come with a calibration certificate?
A: RS offers calibrated options of this product and supplies all the appropriate certifications.

Standards

EN 61326-1

Approvals

TÜV, CSA & CE

Supplied with

Testo 760-1 multimeter, batteries and 1 set of measuring cables.
