Chauvin Arnoux CA 5275 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max - UKAS Calibrated

View all Multimeters

Subtotal (1 unit)*

£371.80

(exc. VAT)

£446.16

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 8 unit(s) ready to ship from another location
  • Plus 4 unit(s) shipping from 13 November 2025
  • Plus 7 unit(s) shipping from 27 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£371.80

*price indicative

RS Stock No.:
778-2822
Mfr. Part No.:
P01196775
Brand:
Chauvin Arnoux
Find similar products by selecting one or more attributes.
Select all

Brand

Chauvin Arnoux

Multimeter Type

Handheld

Model Number p

CA 5275

Display Type

Digital

Calibrated

UKAS

Functions Measured

AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Low Impedance Voltage, Resistance

Absolute Maximum DC Voltage Measurement

1000V dc

Absolute Maximum AC Current Measurement

10A ac

Absolute Maximum Resistance Measurement

60MΩ

Absolute Maximum DC Current Measurement

10A dc

Absolute Maximum AC Voltage Measurement

1000V ac

Absolute Maximum Capacitance Measurement

60mF

True RMS

Yes

Maximum Frequency

10kHz

DC Current Measurement Resolution

1µA dc

AC Current Measurement Resolution

1µA ac

AC Voltage Measurement Resolution

0.01mV ac

DC Voltage Measurement Resolution

0.01mV dc

Resistance Measurement Resolution

100mΩ

Safety Category Level

CAT III, CAT IV

Capacitance Measurement Resolution

1pF

Length

90mm

Dimensions

90 x 45 x 190mm

Best DC Voltage Accuracy

0.09% + 2 cts

Height

190mm

Width

45mm

Safety Category Voltage

600 V, 1000V

Battery Type

9V

Weight

400g

RoHS Status: Exempt

COO (Country of Origin):
FR

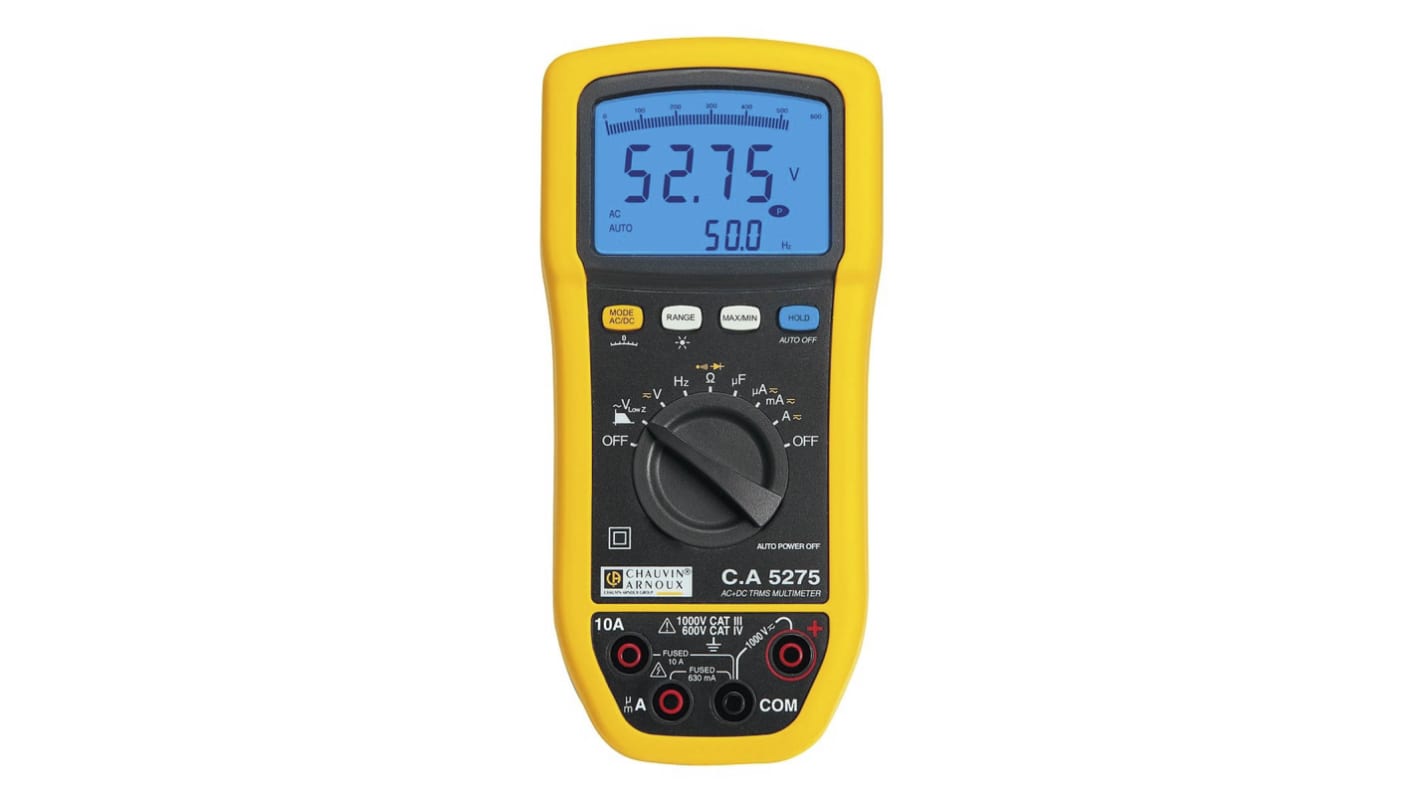

C.A 5275 TRMS Digital Multimeter


The C.A 5275 digital multimeter is particularly compact, making it very easy to handle.

The C.A 5275 is a stand-alone portable digital multimeter specially designed to combine all the functions for measurement of the following electrical quantities in a single instrument
The double 6000 count display is equipped with a 61 + 2-segment bargraph with dual-mode remanent effect
The bargraph has a central zero
AC voltage measurement with low input impedance (voltage measurements for electrical and electrical engineering
applications)
AC and/or DC voltage measurement with high input impedance (voltage measurement for electronics)
Frequency measurement
Resistance measurement
Audible continuity measurement
Measurement and testing of semiconductor junctions
Capacitance measurement
AC and/or DC current measurement
IP54 protection

Standards

CAT IV 600 V and CAT III 1000 V

Supplied with

1.5 m red straight/elbowed cable, 1.5 m black straight/elbowed cable, CATIV 1 kV red test probe, CATIV 1 kV black test probe, alkaline 6LF22 9 V battery, multi-fixture mounting accessory, bag 120 x 200 x 60 mm, quick start guide in 5 languages, operating instructions on CD ROM in 5 languages
