Chauvin Arnoux CA 5273 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max - UKAS Calibrated
- RS Stock No.:
- 778-2790
- Mfr. Part No.:
- P01196773
- Brand:
- Chauvin Arnoux
Subtotal (1 unit)*
£334.77
(exc. VAT)
£401.72
(inc. VAT)
FREE delivery for orders over £50.00
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 + | £334.77 |
*price indicative
- RS Stock No.:
- 778-2790
- Mfr. Part No.:
- P01196773
- Brand:
- Chauvin Arnoux
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Chauvin Arnoux | |
| Multimeter Type | Handheld | |
| Display Type | Digital | |
| Model Number p | CA 5273 | |
| Calibrated | UKAS | |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Low Impedance Voltage, Resistance, Temperature | |
| Absolute Maximum AC Voltage Measurement | 1000V ac | |
| Absolute Maximum AC Current Measurement | 10A ac | |
| Absolute Maximum Resistance Measurement | 60MΩ | |
| Absolute Maximum DC Voltage Measurement | 1000V dc | |
| Absolute Maximum DC Current Measurement | 10A dc | |
| True RMS | Yes | |
| Absolute Maximum Temperature Measurement | +1200°C | |
| Absolute Maximum Capacitance Measurement | 60mF | |
| Maximum Frequency | 3kHz | |
| AC Current Measurement Resolution | 0.001A ac | |
| DC Current Measurement Resolution | 0.001A dc | |
| AC Voltage Measurement Resolution | 0.1mV ac | |
| Resistance Measurement Resolution | 100mΩ | |
| DC Voltage Measurement Resolution | 0.1mV dc | |
| Capacitance Measurement Resolution | 1pF | |
| Temperature Measurement Resolution | 0.1°C | |
| Safety Category Level | CAT III, CAT IV | |
| Safety Category Voltage | 600 V, 1000V | |
| Battery Type | 9V | |
| Weight | 400g | |
| Height | 190mm | |
| Best DC Voltage Accuracy | 0.2% + 2 cts | |
| Width | 45mm | |
| Length | 90mm | |
| Dimensions | 90 x 45 x 190mm | |
| Select all | ||
|---|---|---|
Brand Chauvin Arnoux | ||
Multimeter Type Handheld | ||
Display Type Digital | ||
Model Number p CA 5273 | ||
Calibrated UKAS | ||
Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Low Impedance Voltage, Resistance, Temperature | ||
Absolute Maximum AC Voltage Measurement 1000V ac | ||
Absolute Maximum AC Current Measurement 10A ac | ||
Absolute Maximum Resistance Measurement 60MΩ | ||
Absolute Maximum DC Voltage Measurement 1000V dc | ||
Absolute Maximum DC Current Measurement 10A dc | ||
True RMS Yes | ||
Absolute Maximum Temperature Measurement +1200°C | ||
Absolute Maximum Capacitance Measurement 60mF | ||
Maximum Frequency 3kHz | ||
AC Current Measurement Resolution 0.001A ac | ||
DC Current Measurement Resolution 0.001A dc | ||
AC Voltage Measurement Resolution 0.1mV ac | ||
Resistance Measurement Resolution 100mΩ | ||
DC Voltage Measurement Resolution 0.1mV dc | ||
Capacitance Measurement Resolution 1pF | ||
Temperature Measurement Resolution 0.1°C | ||
Safety Category Level CAT III, CAT IV | ||
Safety Category Voltage 600 V, 1000V | ||
Battery Type 9V | ||
Weight 400g | ||
Height 190mm | ||
Best DC Voltage Accuracy 0.2% + 2 cts | ||
Width 45mm | ||
Length 90mm | ||
Dimensions 90 x 45 x 190mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR

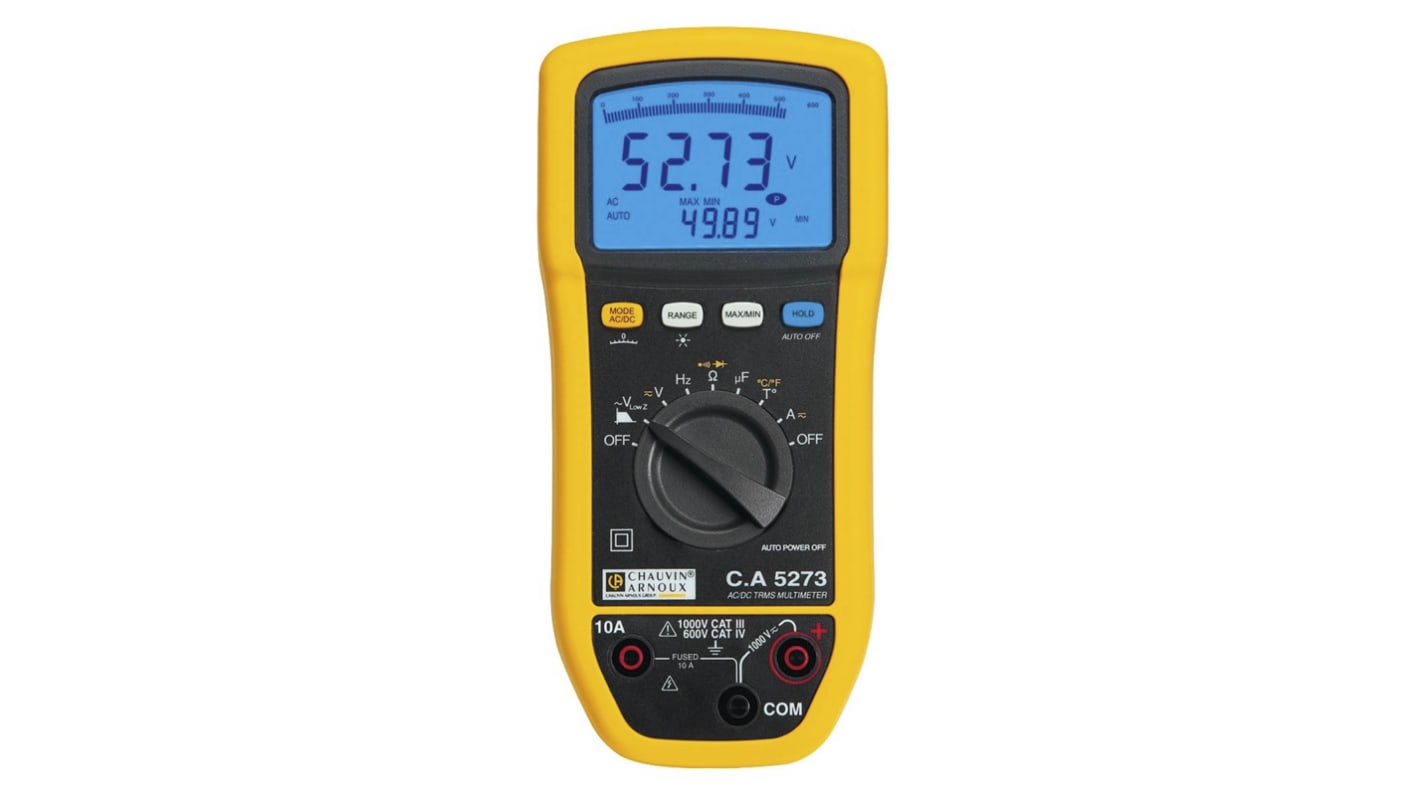

CA 5273 TRMS digital multimeter from Chauvin Arnoux
The CA 5273 is a complete multimeter for electrical maintenance of installations and machines, it has a dual 6,000-counts backlit display and a 61 + 2-segment bar graph with remanence effect and central zero. The CA 5273 digital multimeter is compact and easy to use.
It has all the classic functions of a general-purpose multimeter, plus advanced functions to make measurements easier.
General characteristics of the digital multimeter CA 5273
Measurement rate 5 measurements/s
TRMS AC / DC
Large 6000-counts backlit display with 61+2-segment dual-mode bar graph (full scale/central zero)
Auto AC/DC
Automatic or manual range selection
AC/DC voltage up to 1000 V
AC/DC current up to 10A
Frequency up to 50kHz
Temperature -59.6°C to +1200°C
Low impedance voltage position VLowZ with filter
Resistance up to 60 MΩ
Capacitance 8 ranges 6.000nF to 60 mF
Continuity / diode test
Storage max./min.
3-year warranty
12-bit converter
IP54 RATING
Delivered with
CA 5273 supplied with 1 set of banana leads, 1 set of test probes, 1 x 6LF22 9 V alkaline battery, 1 K thermocouple + adapter
Standards
CAT IV 600 V et CAT III 1 000 V.
Useful accessories
- Kit of accessories for electricians P01295459Z / 212-2591
- Current measurement lead CMI214S P03295509 / 231-3654
- Set of 2 red/black moulded test probes P01295454Z / 226-1666
- Set of 2 red/black magnetized test probes P01103058Z / 229-6163
- Set of 2 red/black moulded silicone leads P01295452Z / 212-2585
Chauvin Arnoux CA5273 True RMS Digital Multimeter
The CA 5273 is a comprehensive Multimeter for electrical maintenance of installations and small AC and DC machines, with a double 6,000-count backlit display and a 61+2-segment bargraph with remnant effect. The CA 5273 digital Multimeter is particularly compact, making it very easy to handle.;The bargraph has a central zero
AC voltage measurement with low input impedance (voltage measurements for electrical and electrical engineering applications)
What are the key features of the Chauvin Arnoux CA5273 Digital Multimeter?
• CAT IV 600V / CAT III 1,000V
• TRMS measurements
• 12-bit TRMS fast acquisition & 5 measurements per second
• Measurement of the ionization current
• Bi-mode double 6,000-count backlit display and 61+2-segment bargraph (full scale / central zero)
• Auto AC/DC selection
• Automatic or manual range selection
• VLowZ low-impedance voltage measurement with low-pass filter
• 1,000 V
• 10 A
• Resistance / audible continuity
• Temperature
• Capacitance
• Relative and differential measurements
• Max / Min storage
• 3-year warranty
What are the typical applications?
• Ideal for tertiary, industrial, electrical or electrotechnical maintenance applications
• Heating and air-conditioning
• Automotive sector
• Buildings and all installations powered by an electrical network
• General electrical applications
• Electromechanics
What’s included?
• 1.5 m red straight/elbowed cable
• CATIV 1 kV red test probe, CATIV 1 kV black test probe
• Alkaline 6LF22 9 V battery
• Wire K thermocouple + adapter
• Quick start guide in 5 languages
• Operating instructions on CD ROM in 5 languages"
Standards
CAT IV 600 V and CAT III 1000 V
