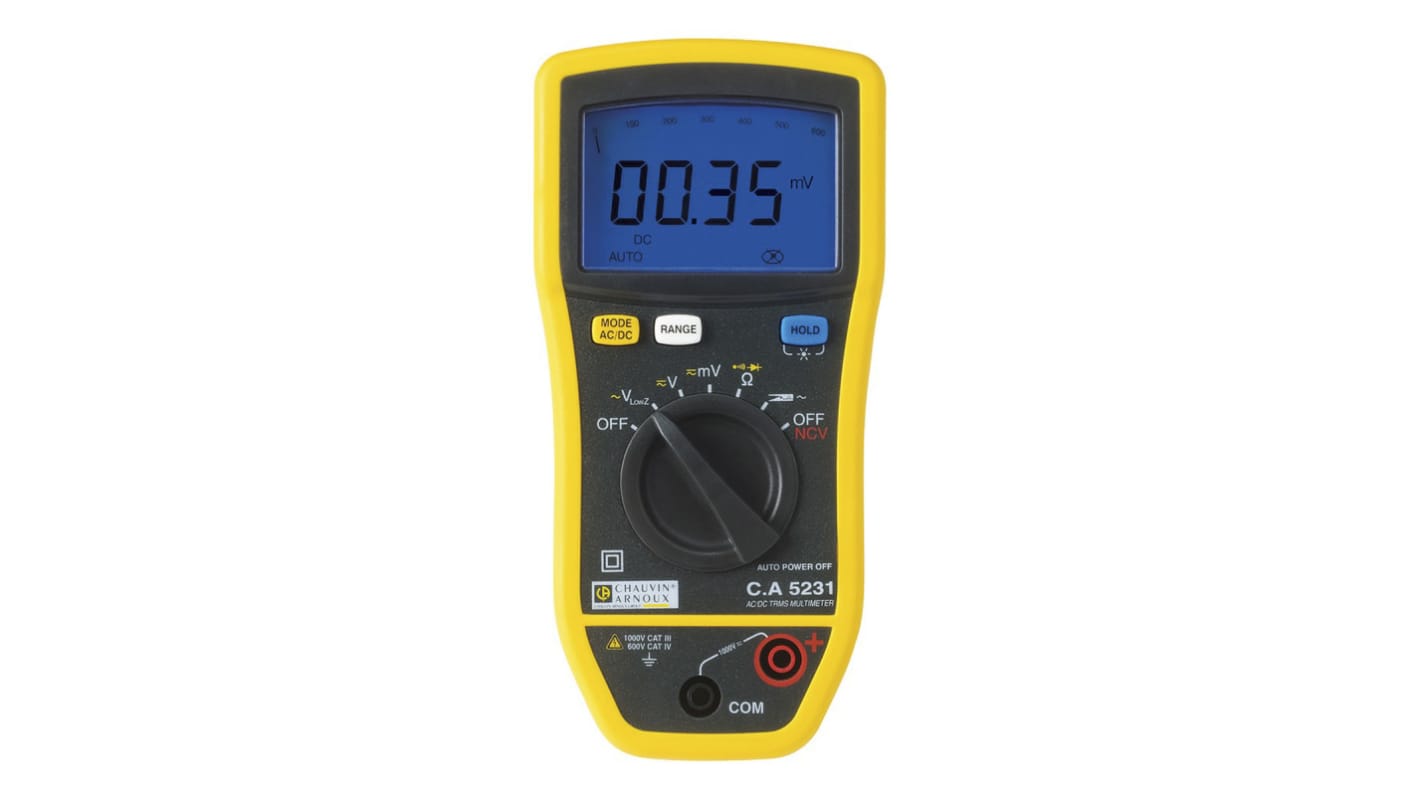

Chauvin Arnoux CA 5231 Handheld Digital Multimeter, True RMS, 600A ac Max, 600A dc Max, 1000V ac Max - RS Calibrated
- RS Stock No.:
- 735-6158
- Mfr. Part No.:
- P01196731
- Brand:
- Chauvin Arnoux
Subtotal (1 unit)*
£188.99
(exc. VAT)
£226.79
(inc. VAT)
FREE delivery for orders over £50.00
- 22 unit(s) ready to ship from another location
- Plus 25 unit(s) shipping from 30 July 2025
- Plus 2 unit(s) shipping from 07 August 2025
Units | Per unit |
|---|---|
| 1 + | £188.99 |
*price indicative
- RS Stock No.:
- 735-6158
- Mfr. Part No.:
- P01196731
- Brand:
- Chauvin Arnoux
Select all | Attribute | Value |
|---|---|---|
| Brand | Chauvin Arnoux | |
| Multimeter Type | Handheld | |
| Model Number p | CA 5231 | |
| Display Type | Digital | |
| Calibrated | RSCAL | |
| Functions Measured | AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance | |
| Absolute Maximum DC Current Measurement | 600A dc | |
| Absolute Maximum DC Voltage Measurement | 1000V dc | |
| Absolute Maximum Resistance Measurement | 60MΩ | |
| Absolute Maximum AC Current Measurement | 600A ac | |
| Absolute Maximum AC Voltage Measurement | 1000V ac | |
| True RMS | Yes | |
| Maximum Frequency | 3kHz | |
| AC Current Measurement Resolution | 0.1A ac | |
| DC Current Measurement Resolution | 0.1A dc | |
| AC Voltage Measurement Resolution | 0.01mV ac | |
| Resistance Measurement Resolution | 100mΩ | |
| DC Voltage Measurement Resolution | 0.01mV dc | |
| Capacitance Measurement Resolution | 10pF | |
| Safety Category Level | CAT III, CAT IV | |
| Best Temperature Measurement Accuracy | ±0.3 % + 4 digits | |
| Height | 155mm | |
| Weight | 320g | |
| Length | 75mm | |
| Maximum Operating Temperature | +50°C | |
| Minimum Operating Temperature | 0°C | |
| Dimensions | 155 x 75 x 75mm | |
| Best Capacitance Measurement Accuracy | ±3.5 % + 4 digits | |
| Best Resistance Measurement Accuracy | ±0.2 % + 2 digits | |
| Battery Type | 9 V, IEC 6LR61 | |
| Safety Category Voltage | 600 V, 1000V | |
| Best AC Voltage Accuracy | ±2 % + 3 digits | |
| Width | 75mm | |
| Best AC Current Accuracy | ±2 % + 3 Digits | |
Select all | ||
|---|---|---|
Brand Chauvin Arnoux | ||
Multimeter Type Handheld | ||
Model Number p CA 5231 | ||
Display Type Digital | ||
Calibrated RSCAL | ||
Functions Measured AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance | ||
Absolute Maximum DC Current Measurement 600A dc | ||
Absolute Maximum DC Voltage Measurement 1000V dc | ||
Absolute Maximum Resistance Measurement 60MΩ | ||
Absolute Maximum AC Current Measurement 600A ac | ||
Absolute Maximum AC Voltage Measurement 1000V ac | ||
True RMS Yes | ||
Maximum Frequency 3kHz | ||
AC Current Measurement Resolution 0.1A ac | ||
DC Current Measurement Resolution 0.1A dc | ||
AC Voltage Measurement Resolution 0.01mV ac | ||
Resistance Measurement Resolution 100mΩ | ||
DC Voltage Measurement Resolution 0.01mV dc | ||
Capacitance Measurement Resolution 10pF | ||
Safety Category Level CAT III, CAT IV | ||
Best Temperature Measurement Accuracy ±0.3 % + 4 digits | ||
Height 155mm | ||
Weight 320g | ||
Length 75mm | ||
Maximum Operating Temperature +50°C | ||
Minimum Operating Temperature 0°C | ||
Dimensions 155 x 75 x 75mm | ||
Best Capacitance Measurement Accuracy ±3.5 % + 4 digits | ||
Best Resistance Measurement Accuracy ±0.2 % + 2 digits | ||
Battery Type 9 V, IEC 6LR61 | ||
Safety Category Voltage 600 V, 1000V | ||
Best AC Voltage Accuracy ±2 % + 3 digits | ||
Width 75mm | ||
Best AC Current Accuracy ±2 % + 3 Digits | ||
