    Fluke 114 Handheld Digital Multimeter, True RMS, 600V ac Max - UKAS Calibrated

    Fluke
    RS Stock No.:
    625-0655
    Mfr. Part No.:
    FLUKE-114 EUR
    Brand:
    Fluke
    View all Multimeters
    Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
    Add to Basket
    Units

    Not available for guaranteed pre 9am/10am delivery

    Added

    Price Each

    £277.50

    (exc. VAT)

    £333.00

    (inc. VAT)

    UnitsPer unit
    1 +£277.50
    RS Stock No.:
    625-0655
    Mfr. Part No.:
    FLUKE-114 EUR
    Brand:
    Fluke

    Legislation and Compliance

    RoHS Status: Not Applicable

    COO (Country of Origin):
    CN

    Product Details

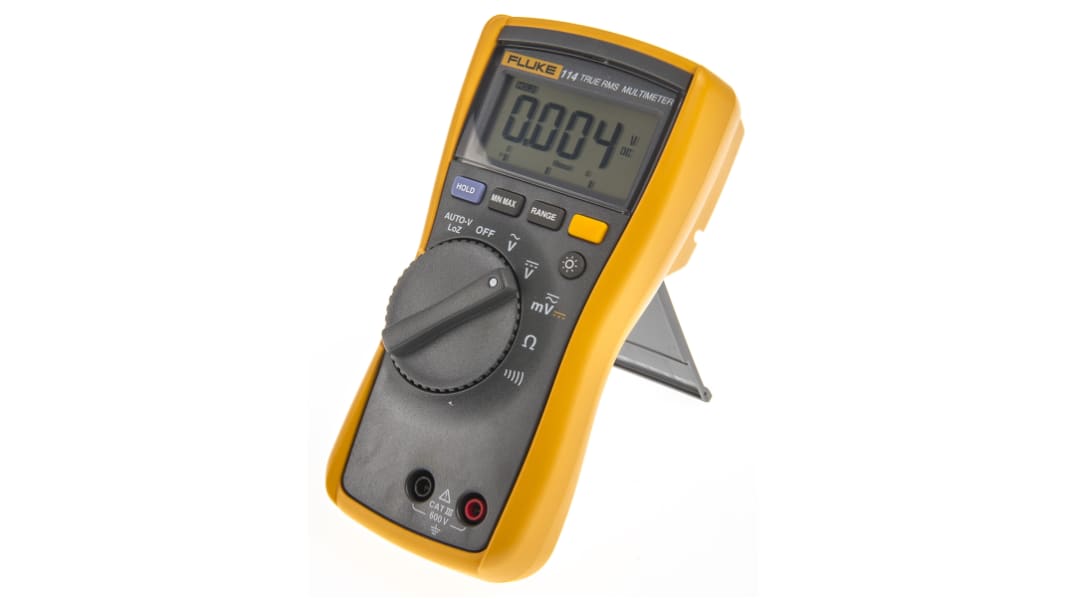

    Fluke 114 Digital Multimeter


    The compact Fluke 114 multimeter is a CAT III 600 V safety rated True RMS meter for electrical troubleshooting, giving you results without the complications. It is designed for easy one-hand operation and go/no go testing for use by professional electricians in both commercial and residential applications. Its AutoVolt capability automatically switches to measure AC or DC voltage, whichever is present. The LoZ function helps identify so-called ghost voltage and prevents false readings and improve accuracy when testing on irregular waveforms. The Fluke 114 displays True RMS voltage and current readings with 6000-count resolution, and tests continuity and resistance. A large white LED backlight aids work in poorly lit areas. An easy-open battery access door makes battery changes easy.

    What are the key benefits of the Fluke 114 Digital Multimeter?


    • True RMS digital multimeter, ideal for electrician and tradesmen
    • It has a 6000 count resolution
    • LCD display with a large white LED backlight and analogue bargraph
    • An integrated tilt stand with a removable holster
    • Min/Max/Average records signal fluctuations over a period of time
    • Prompts when battery levels are low
    • Resistance and continuity testing capability with a beeper integrated sound
    • CAT III 600 V safety rated
    • AutoVolt feature that detects AC or DC voltage

    Additional Specifications


    • DC Voltage Accuracy: 0.5% + 2
    • DC Voltage Lowest Resolution: 0.1mV
    • AC Voltage Accuracy: 2.0% + 3
    • AC Voltage Lowest Resolution: 0.1mV
    • AC Voltage Max Frequency: 1kHz
    • Display Count 6000
    • Display Update 4/sec
    • Bar Graph Segments 33
    • Bar Graph Update 32/sec

    What is included?


    • Fluke 114 Digital Multimeter
    • Test lead set
    • Holster
    • 9v battery already installed
    • User manual

    Does the Fluke 114 Digital Multimeter come with any warranty?


    You have peace of mind as the Fluke 114 Digital Multimeter is backed by 3 years of warranty from the manufacturer.

    Note

    For Calibrated Articles - Please note that accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 95 %.

    FLUKE Multimeter, 9V Alkaline Battery, 40MΩ Maximum Resistance - FLUKE-114 EUR


    Need a way to identify problems in your equipment? Get an accurate grip on electrical values with this digital multimeter from FLUKE. With this single device, you can measure volts, currents and resistance to stay on top of troubleshooting and keep your equipment in good nick. It's easy to carry wherever the job takes you, thanks to a one-handed design that lets you start and stop testing with a simple touch. An Autovolt function means the clever gadget instinctively switches between AC and DC voltages. Thanks to a 400-hour battery life and on-screen low battery warning, you won't run out of juice unexpectedly.

    Features & Benefits


    • True-RMS technology for spot-on AC readings
    • Minimum, maximum and average recording capability to handle signal fluctuations
    • Backlit LED screen for working in poorly-lit areas

    Applications


    • Commercial and residential distribution circuits
    • Automotive industry
    • Power supplies

    What's the difference between an analogue and a digital multimeter?


    Analogue multimeters use a needle scale to display readings. A digital multimeter like this one, apart from the display difference, is more accurate than its analogue cousin.

    At what temperatures can I use this digital multimeter?


    It has a wide operating temperature range between -10°C and +50°C for use in challenging conditions.


    Specifications

    AttributeValue
    Multimeter TypeHandheld
    Display TypeDigital
    True RMSYes
    Functions MeasuredAC Voltage, Continuity, DC Voltage, Resistance
    CalibratedUKAS
    Absolute Maximum DC Voltage Measurement600V dc
    Absolute Maximum Resistance Measurement40MΩ
    Absolute Maximum AC Voltage Measurement600V ac
    Maximum Frequency1kHz
    Model Number p114
    AC Voltage Measurement Resolution0.1mV ac
    DC Voltage Measurement Resolution0.1mV dc
    Resistance Measurement Resolution100mΩ
    Safety Category LevelCAT III
    Best AC Voltage Accuracy±1% + 3 Digits
    Weight550g
    Battery Type9V
    Battery Life400 h
    Width84mm
    Height167mm
    Minimum Operating Temperature-10°C
    Length46mm
    Maximum Operating Temperature+50°C
    Best DC Voltage Accuracy±0.5% + 2 Digits
    Dimensions46 x 84 x 167mm
    Safety Category Voltage600V
    Best Resistance Measurement Accuracy±1.5% + 2 Digits
