Metrix MX 1 Handheld Analogue Multimeter, 10A ac Max - RS Calibrated
- RS Stock No.:
- 424-8903
- Mfr. Part No.:
- MX0001-M
- Brand:
- Metrix
Subtotal (1 unit)*
£344.44
(exc. VAT)
£413.33
(inc. VAT)
FREE delivery for orders over £50.00
- 1 unit(s) ready to ship from another location
Units | Per unit |
|---|---|
| 1 + | £344.44 |
*price indicative
- RS Stock No.:
- 424-8903
- Mfr. Part No.:
- MX0001-M
- Brand:
- Metrix
Select all | Attribute | Value |
|---|---|---|
| Brand | Metrix | |
| Multimeter Type | Handheld | |
| Display Type | Analogue | |
| Model Number p | MX 1 | |
| Calibrated | RSCAL | |
| Functions Measured | AC Current, AC Voltage, Continuity, DC Voltage, Resistance | |
| Absolute Maximum Resistance Measurement | 20kΩ | |
| Absolute Maximum AC Current Measurement | 10A ac | |
| True RMS | No | |
| Maximum Frequency | 1kHz | |
| Safety Category | CAT III 600V | |
| Safety Category Level | CAT III | |
| Best Resistance Measurement Accuracy | ±2.5 % | |
| Minimum Operating Temperature | -10°C | |
| Height | 40mm | |
| Weight | 420g | |
| Best DC Current Accuracy | ±2 % | |
| Battery Type | AA | |
| Best DC Voltage Accuracy | ±2 % | |
| Length | 150mm | |
| Maximum Operating Temperature | +50°C | |
| Dimensions | 150 x 98 x 40mm | |
| Best AC Voltage Accuracy | ±2.5 % | |
| Best AC Current Accuracy | ±2.5 % | |
| Width | 98mm | |
| Safety Category Voltage | 600V | |
Select all | ||
|---|---|---|
Brand Metrix | ||
Multimeter Type Handheld | ||
Display Type Analogue | ||
Model Number p MX 1 | ||
Calibrated RSCAL | ||
Functions Measured AC Current, AC Voltage, Continuity, DC Voltage, Resistance | ||
Absolute Maximum Resistance Measurement 20kΩ | ||
Absolute Maximum AC Current Measurement 10A ac | ||
True RMS No | ||
Maximum Frequency 1kHz | ||
Safety Category CAT III 600V | ||
Safety Category Level CAT III | ||
Best Resistance Measurement Accuracy ±2.5 % | ||
Minimum Operating Temperature -10°C | ||
Height 40mm | ||
Weight 420g | ||
Best DC Current Accuracy ±2 % | ||
Battery Type AA | ||
Best DC Voltage Accuracy ±2 % | ||
Length 150mm | ||
Maximum Operating Temperature +50°C | ||
Dimensions 150 x 98 x 40mm | ||
Best AC Voltage Accuracy ±2.5 % | ||
Best AC Current Accuracy ±2.5 % | ||
Width 98mm | ||
Safety Category Voltage 600V | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR

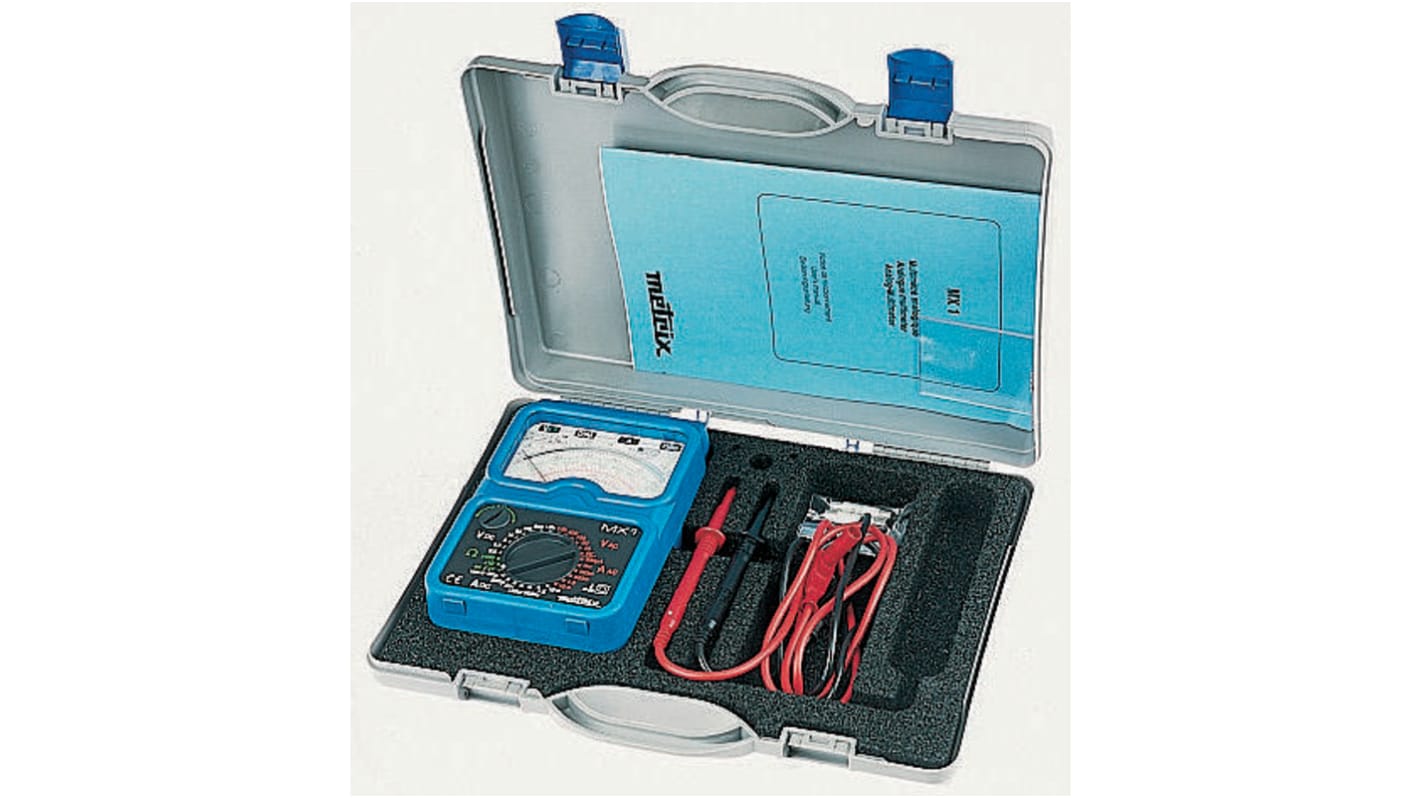

MX1 General Purpose Heavy Duty Multimeter in Carry Case
6 AC voltages ranges: 5V to 1500V
7 DC current ranges: 50μA to 10A
6 AC current ranges: 500mA to 10A
3Ω ranges to 20kΩ
-6 to +15dB scale for AC measurements
Diode test capability with Ωx1 range
Mains proof ohms range
10kA fuse protection on current ranges
High speed continuity bleeper (<150Ω)
Audible warning if >5V is applied to Ω range
Visual warning if protection fuses blown
Locking system prevents test leads falling out
IP65 rated case which cannot be opened with test leads connected, plus moulded-on shock absorber
Safety Rating: EN61010-1 CAT II 600 V
Supplied with
