Chauvin Arnoux CA 5011 Handheld Analogue Multimeter
- RS Stock No.:
- 392-9207
- Mfr. Part No.:
- P01196311E
- Brand:
- Chauvin Arnoux
Subtotal (1 unit)*
£520.97
(exc. VAT)
£625.16
(inc. VAT)
FREE delivery for orders over £50.00
- 5 unit(s) ready to ship from another location
- Plus 999,999,994 unit(s) shipping from 11 December 2025
Units | Per unit |
---|---|
1 + | £520.97 |
*price indicative
- RS Stock No.:
- 392-9207
- Mfr. Part No.:
- P01196311E
- Brand:
- Chauvin Arnoux
Select all | Attribute | Value |
---|---|---|
Brand | Chauvin Arnoux | |
Multimeter Type | Handheld | |
Model Number p | CA 5011 | |
Display Type | Analogue | |
Functions Measured | AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance | |
Absolute Maximum Resistance Measurement | 40MΩ | |
True RMS | No | |
Maximum Frequency | 10kHz | |
Safety Category Level | CAT III | |
Safety Category | CAT III 1000V | |
Best Resistance Measurement Accuracy | ±2.5 % (analogue)<BR/>1% L ± 2 pt (digital) | |
Maximum Operating Temperature | +55°C | |
Battery Type | 9V | |
Safety Category Voltage | 1000V | |
Best DC Current Accuracy | ±2.5 % (analogue)<BR/>1,5% L ± 2 pt (digital) | |
Weight | 500g | |
Height | 56mm | |
Minimum Operating Temperature | -10°C | |
Best DC Voltage Accuracy | ±2.5 % (analogue)<BR/>1% L ± 2 pt (digital) | |
Dimensions | 160 x 105 x 56mm | |
Best AC Voltage Accuracy | ±2.5 % (analogue)<BR/>2% L ± 5 pt (digital) | |
Length | 160mm | |
Best AC Current Accuracy | ±2.5 % (analogue)<BR/>2% L ± 5 pt (digital) | |
Width | 105mm | |
Select all | ||
---|---|---|
Brand Chauvin Arnoux | ||
Multimeter Type Handheld | ||
Model Number p CA 5011 | ||
Display Type Analogue | ||
Functions Measured AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance | ||
Absolute Maximum Resistance Measurement 40MΩ | ||
True RMS No | ||
Maximum Frequency 10kHz | ||
Safety Category Level CAT III | ||
Safety Category CAT III 1000V | ||
Best Resistance Measurement Accuracy ±2.5 % (analogue)<BR/>1% L ± 2 pt (digital) | ||
Maximum Operating Temperature +55°C | ||
Battery Type 9V | ||
Safety Category Voltage 1000V | ||
Best DC Current Accuracy ±2.5 % (analogue)<BR/>1,5% L ± 2 pt (digital) | ||
Weight 500g | ||
Height 56mm | ||
Minimum Operating Temperature -10°C | ||
Best DC Voltage Accuracy ±2.5 % (analogue)<BR/>1% L ± 2 pt (digital) | ||
Dimensions 160 x 105 x 56mm | ||
Best AC Voltage Accuracy ±2.5 % (analogue)<BR/>2% L ± 5 pt (digital) | ||
Length 160mm | ||
Best AC Current Accuracy ±2.5 % (analogue)<BR/>2% L ± 5 pt (digital) | ||
Width 105mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR

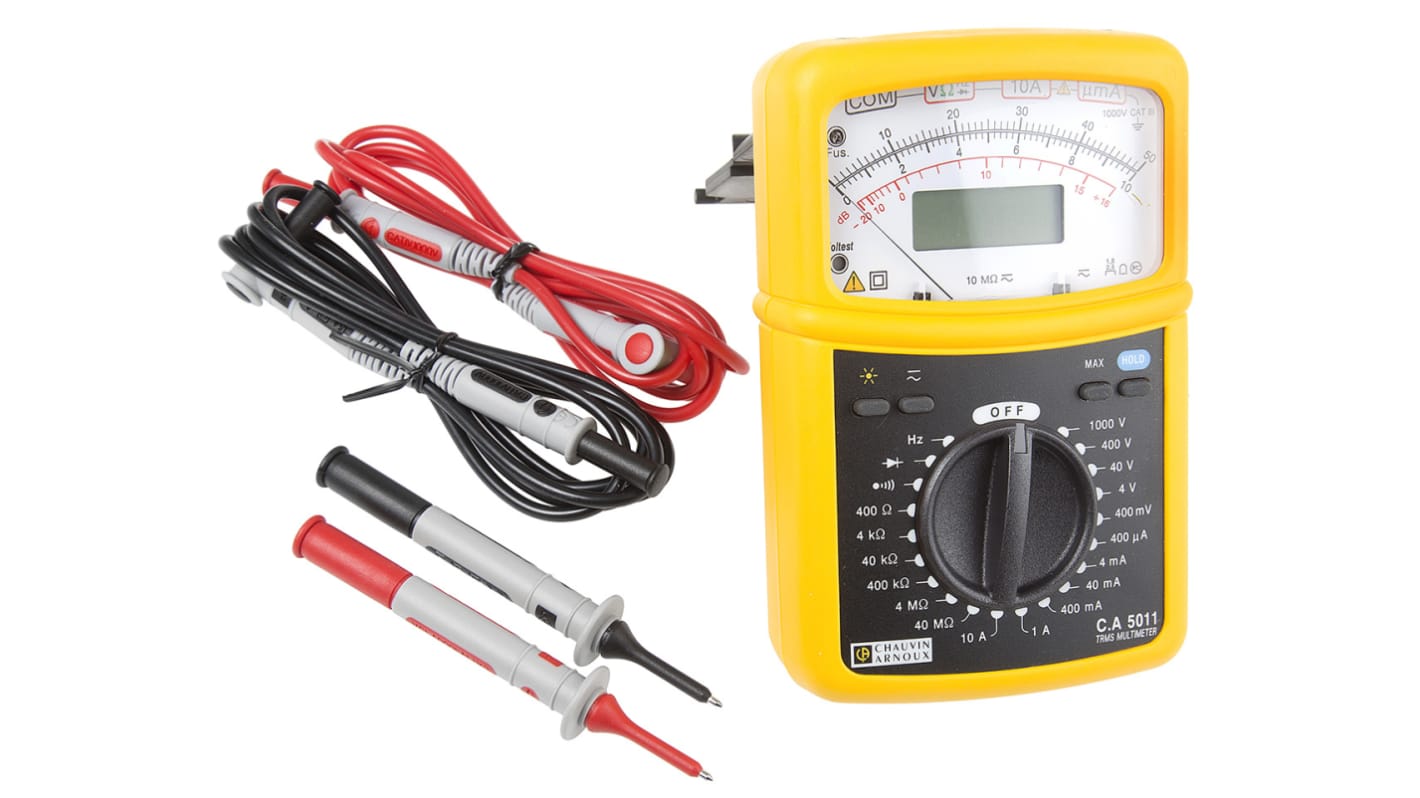

C.A 5011 Digital / Analogue Multimeter
Two additional readings: - digital for accuracy, backlit - analogue to assess measurement trends.
Shockproof case with a "Multistand" multi-purpose fold-away stand for use at worksites as well as in the lab.
Available in calibrated version.
Standards
A/N multimeter CA 5011
With its robust, shock-proof casing and folding Multistand stand, the CA 5011 is ideal for use on the field and in the laboratory.
With this instrument, you get two complementary readings:
- digital, with a backlit 4000-counts display
- analogue, for use with zero of galva
General characteristics
Automatic AC/DC recognition
AC and DC voltage : 5 ranges 400 mV / … / 600 V
AC and DC current : 6 ranges 400 μA / … / 10 A
Resistance : 6 ranges 400 Ω / … / 40 MΩ
Continuity
Diode
Frequency : 3 ranges 4 kHz / … / 400 kHz
dB scale : -20 to 16 dB
Can be used with zero galva
Delivered with
The CA 5011 multimeter is supplied with : 1 set of silicone leads straight banana plug / angled banana plug, 1 set of safety test probes, 1 9V 6LR06 battery
Standards
CEI 61010-1, CAT III/1 000 V ou 600 V CAT IV
Useful accessories
- Set of 2 red/black moulded PVC leads P01295451Z / 212-2583
- Set of 2 red/black crocodile wire grips P01102053Z / 229-6127
- Set of 2 red/black magnetized test probes P01103058Z / 229-6163
- Set of 2 red/black moulded silicone leads P01295452Z / 212-2585
