Chauvin Arnoux CA 5003 Handheld Multimeter, 15A ac Max, 15A dc Max, 1000V ac Max - RS Calibrated
- RS Stock No.:
- 282-1831
- Mfr. Part No.:
- P01196522E
- Brand:
- Chauvin Arnoux
Subtotal (1 unit)*
£380.65
(exc. VAT)
£456.78
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £380.65 |
*price indicative
- RS Stock No.:
- 282-1831
- Mfr. Part No.:
- P01196522E
- Brand:
- Chauvin Arnoux
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Chauvin Arnoux | |
| Multimeter Type | Handheld | |
| Model Number p | CA 5003 | |
| Calibrated | RSCAL | |
| Functions Measured | AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Frequency, Resistance | |
| Absolute Maximum AC Voltage Measurement | 1000V ac | |
| Absolute Maximum DC Voltage Measurement | 1000V dc | |
| Absolute Maximum Resistance Measurement | 1mΩ | |
| Absolute Maximum DC Current Measurement | 15A dc | |
| Absolute Maximum AC Current Measurement | 15A ac | |
| Safety Category Level | CAT III | |
| Safety Category Voltage | 600V | |
| Battery Type | 9 V | |
Select all | ||
|---|---|---|
Brand Chauvin Arnoux | ||
Multimeter Type Handheld | ||
Model Number p CA 5003 | ||
Calibrated RSCAL | ||
Functions Measured AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Frequency, Resistance | ||
Absolute Maximum AC Voltage Measurement 1000V ac | ||
Absolute Maximum DC Voltage Measurement 1000V dc | ||
Absolute Maximum Resistance Measurement 1mΩ | ||
Absolute Maximum DC Current Measurement 15A dc | ||
Absolute Maximum AC Current Measurement 15A ac | ||
Safety Category Level CAT III | ||
Safety Category Voltage 600V | ||
Battery Type 9 V | ||
- COO (Country of Origin):
- FR

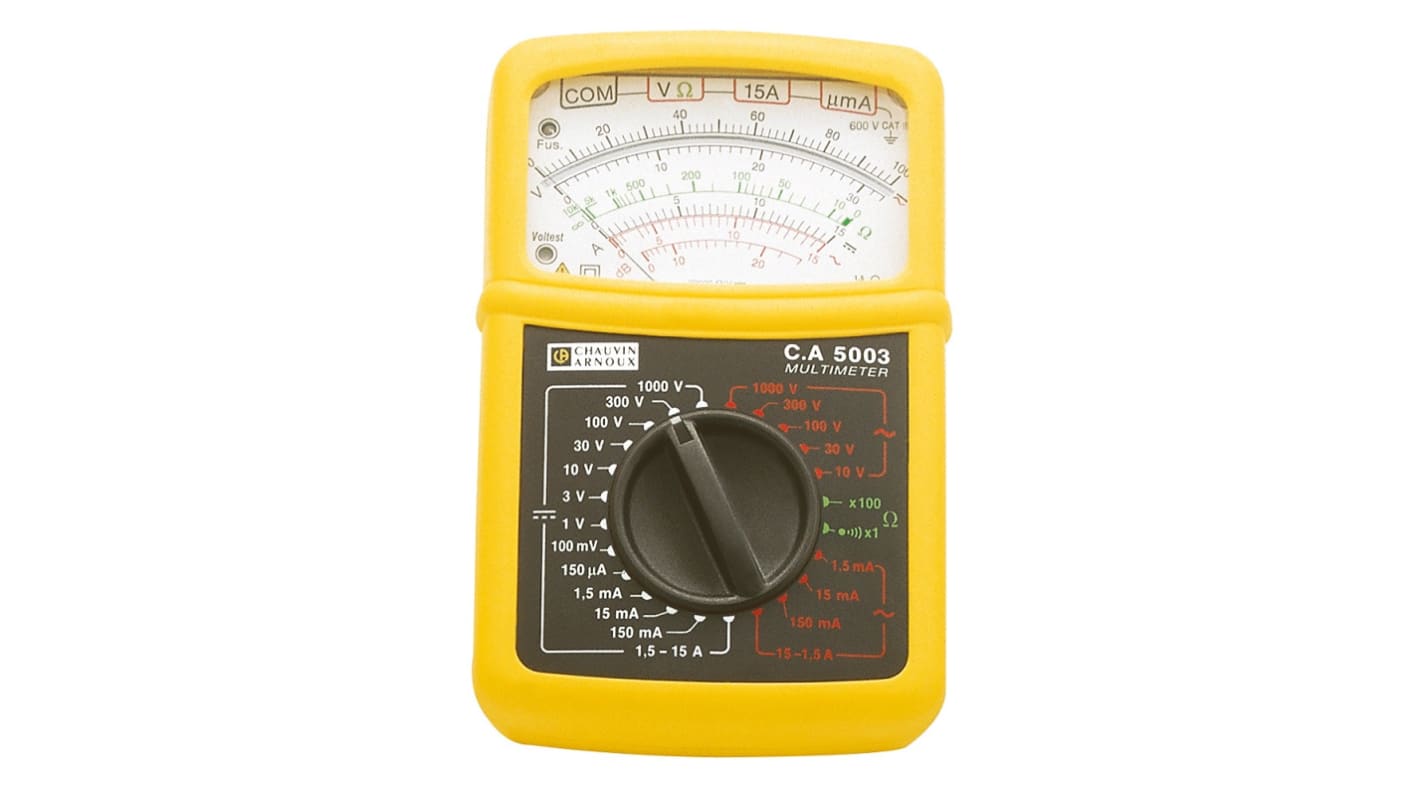

Analogue Multimeter CA 5003
As part of the Chauvin Arnoux CA 5000 range of analogue multimeters, the CA 5003 has all the functions required for all the measurements made by electricians.
The CA 5003's practical hinged stand holds the instrument in a vertical position for reading close to the test point.
General characteristics
DC voltage : 8 ranges : 100 mV / … / 600 V
AC voltage : 5 ranges : 10 V / … / 600 V
DC current : 7 ranges : 50 μA / … / 15 A
AC current : 5 ranges : 1,5 mA / … / 15 A
Resistance : 1 MΩ
Continuity
dB scale : 0 to 22 dB
Delivered with
CA 5003 delivered with 1 set of silicone straight banana plug/elbowed banana plug leads, 1 set of safety test probes, 1 x 9 V 6LR61 battery
Standards
CEI 61010 600V CAT III
Useful accessories
- Set of leads and measuring accessories for electricians P01295459Z / 212-2591
- MN 11 AC current clamp P01120404 / 293-1811
- Set of 2 red/black moulded test probes P01295454Z / 226-1666
- Set of 2 red/black magnetized test probes P01103058Z / 229-6163
- Set of 2 red/black moulded silicone leads P01295452Z / 212-2585
The CA 5003's practical hinged stand holds the instrument in a vertical position for reading close to the test point.
General characteristics
DC voltage : 8 ranges : 100 mV / … / 600 V
AC voltage : 5 ranges : 10 V / … / 600 V
DC current : 7 ranges : 50 μA / … / 15 A
AC current : 5 ranges : 1,5 mA / … / 15 A
Resistance : 1 MΩ
Continuity
dB scale : 0 to 22 dB
Delivered with
CA 5003 delivered with 1 set of silicone straight banana plug/elbowed banana plug leads, 1 set of safety test probes, 1 x 9 V 6LR61 battery
Standards
CEI 61010 600V CAT III
Useful accessories
- Set of leads and measuring accessories for electricians P01295459Z / 212-2591
- MN 11 AC current clamp P01120404 / 293-1811
- Set of 2 red/black moulded test probes P01295454Z / 226-1666
- Set of 2 red/black magnetized test probes P01103058Z / 229-6163
- Set of 2 red/black moulded silicone leads P01295452Z / 212-2585
