RS PRO Handheld Digital Multimeter, True RMS, 100A ac Max, 100A dc Max, 600V ac Max - RS Calibrated
- RS Stock No.:
- 243-4212
- Brand:
- RS PRO
66 In stock for delivery within 3 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£102.46
(exc. VAT)
£122.95
(inc. VAT)
| Units | Per unit |
| 1 + | £102.46 |
- RS Stock No.:
- 243-4212
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

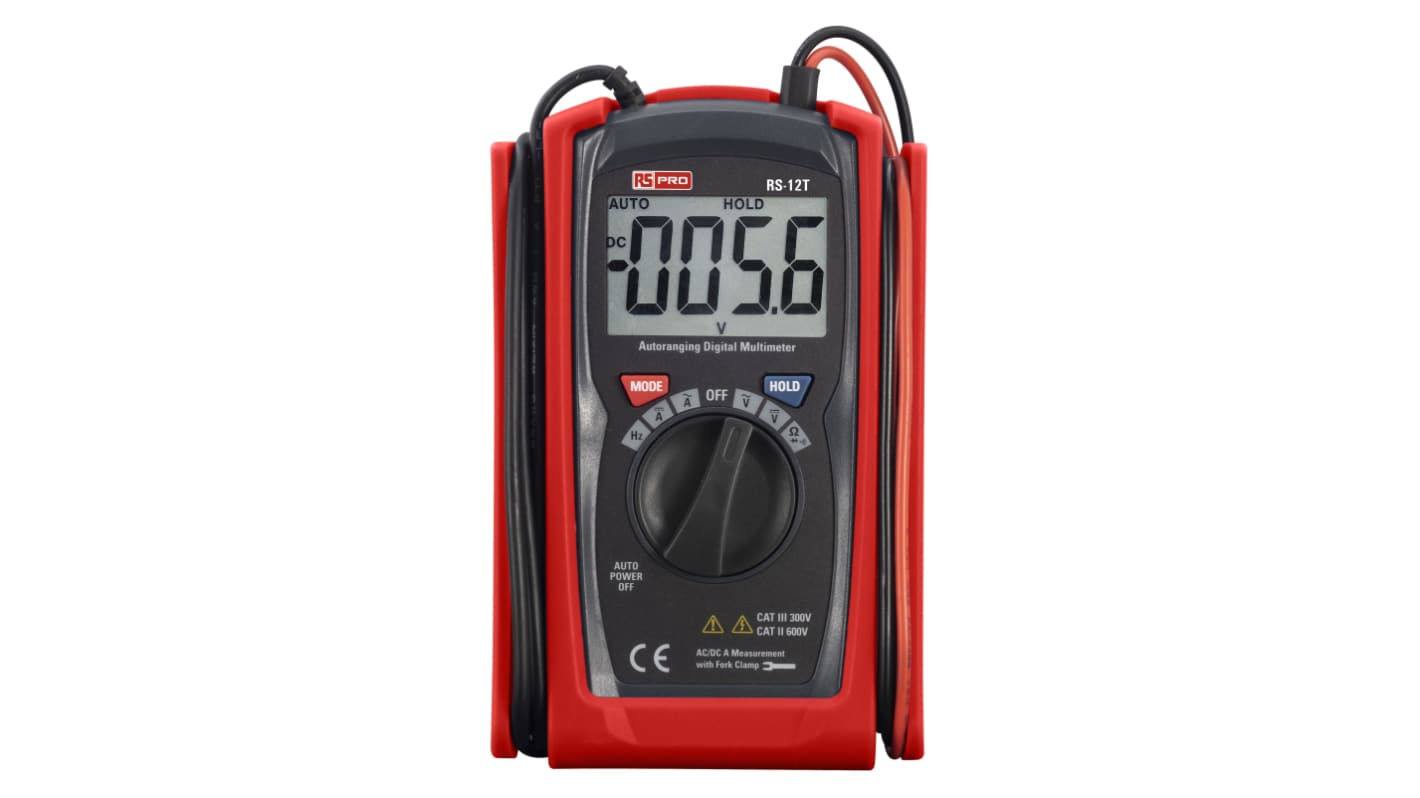

RS PRO Handheld True RMS Digital Multimeter
Introducing the RS PRO Handheld TRMS Digital Multimeter, designed with a fork clamp for easy and reliable measurement. This is an ideal multimeter that has the ability to measure capacitance, voltage, and continuity, with the added benefit of being able to take precision low-value resistance measurements. It offers a robust and compact design, allowing for portability and protection from harsh working environments with readings clearly displayed on the high-quality LCD screen. A premium RS PRO digital multimeter like this is an essential addition to any engineer’s or technician’s test and measurement kit for accurate and reliable results.
Features and Benefits:
- This RS PRO Digital Multimeter is compact and handheld tester with a rugged design, ideal for when working in harsh environments
- It measures capacitance, voltage, resistance, frequency, continuity, electrical current and diode with accurate and reliable readings for the best performance thanks to the built-in flex clamp
- The large digital LCD screen clearly displays results for easy recording of the measurement outcomes, even in low-light conditions
- The digital multimeter offers an auto-power off function, as well as a low battery indicator for easier battery life management
- Supplied with test leads, 1.5 V L44 button battery and a carry case for easy storage and protection of the instrument
Applications:
A digital multimeter or DMM is an essential test tool that measures electrical values such as voltage, current, and resistance. A DMM is used as a standard diagnostics tool or device by technicians and electrical engineers in the following areas:
- Electrical and electronics industries
- Cable installation
- Construction
- Industrial manufacturing
What is the difference between an analogue and a digital multimeter?
The main difference is the display. A digital multimeter will show the results as numbers on a screen (usually an LED or LCD screen) whereas the analogue version has a needle to show the value.
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.
Specifications
Attribute | Value |
|---|---|
| Multimeter Type | Handheld |
| Display Type | Digital |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance |
| Calibrated | RSCAL |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Resistance Measurement | 60MΩ |
| Absolute Maximum DC Current Measurement | 100A dc |
| Absolute Maximum AC Current Measurement | 100A ac |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum Capacitance Measurement | 99.99mF |
| AC Current Measurement Resolution | 0.1A |
| AC Voltage Measurement Resolution | 100mV |
| DC Voltage Measurement Resolution | 100mV |
| Resistance Measurement Resolution | 10kΩ |
| Capacitance Measurement Resolution | 0.01.mF |
| Safety Category Level | CAT II, CAT III |
| Best AC Voltage Accuracy | +1.5%±5 |
| Best Resistance Measurement Accuracy | +3%±8 |
| Battery Type | AA |
| Safety Category Voltage | 300 V, 600V |
| Best Capacitance Measurement Accuracy | 5%±5 |
| Best DC Voltage Accuracy | +1.5%±5 |
| Dimensions | 126 x 59 x 32mm |
| Length | 59mm |
| Width | 126mm |
| Best AC Current Accuracy | +3%±5 |
| Best Temperature Measurement Accuracy | ±1.5 °C |
| Best DC Current Accuracy | +3%±5 |
| Height | 32mm |
| Weight | 124g |
