- RS Stock No.:
- 236-7189
- Mfr. Part No.:
- B2985B
- Brand:
- Keysight Technologies
Available to back order for despatch 20/05/2024
Added
Price Each
£11,224.00
(exc. VAT)
£13,468.80
(inc. VAT)
Units | Per unit |
1 + | £11,224.00 |
- RS Stock No.:
- 236-7189
- Mfr. Part No.:
- B2985B
- Brand:
- Keysight Technologies
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details

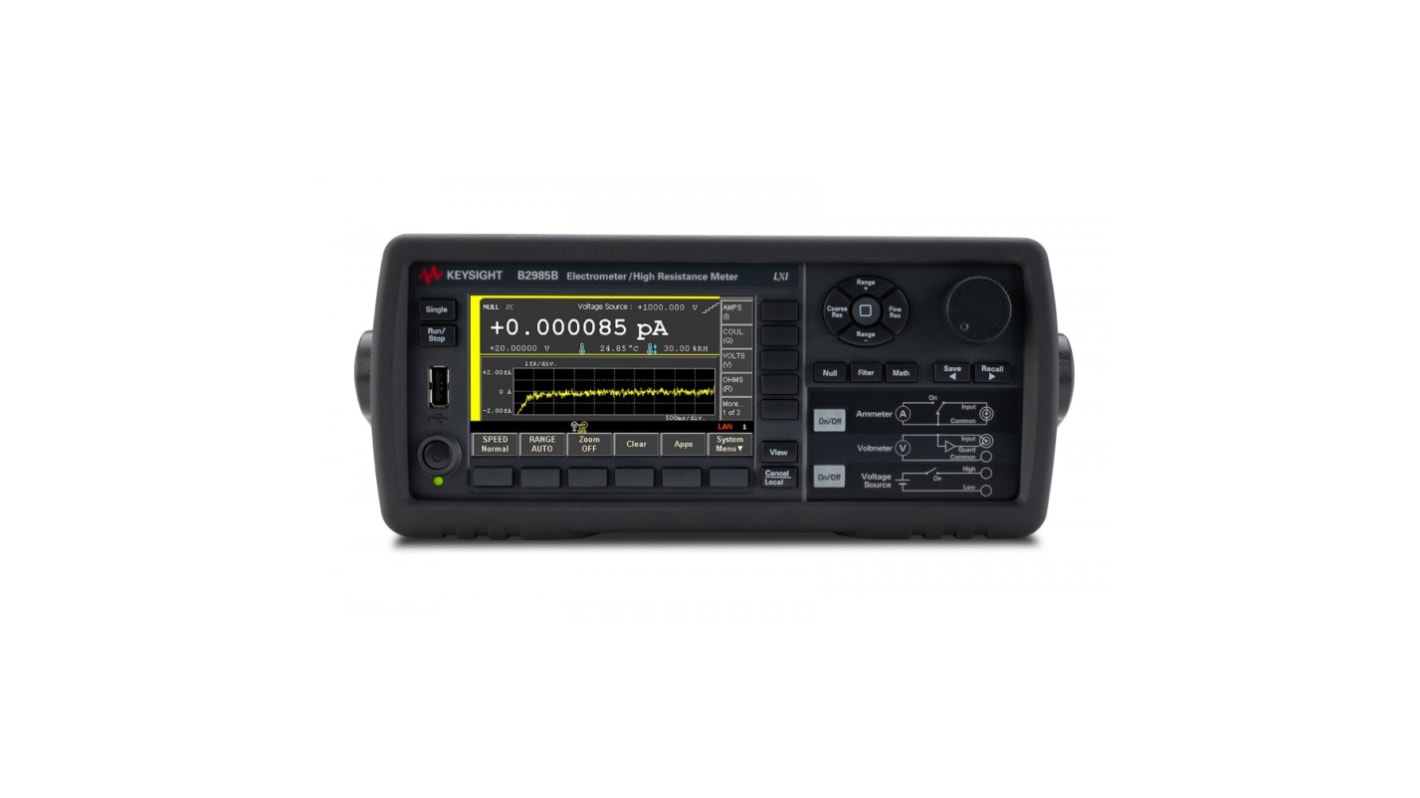

Keysight Technologies Electrometer, 4.3in LCD Display, 6.5-Digit Measurement Resolution - B2980B Series - B2985B
Get the measure of low-level current testing with this Keysight Technologies electrometer. It detects currents between 0.01fA and 20mA, bringing small electrical loads into full view for precise measurements. By taking up to 20,000 readings a second, the device collects plenty of data in a flash to catch quick changes as they happen. Viewing the measurements is a breeze thanks to a clear 4.3in LCD display. As the electrometer comes with numerical and graphical view options, it's a cinch to review your data without the hassle of connecting to a PC.
• Automatic range selection feature to speed up set-up time
• Measurement resolution of 6.5 digits to provide detailed readings
• Labelled button controls for simple swapping between measuring and display modes
• Included 1.5m triaxial cable comes with an extra semiconductor layer to cut out disruption from noise
• Measurement resolution of 6.5 digits to provide detailed readings
• Labelled button controls for simple swapping between measuring and display modes
• Included 1.5m triaxial cable comes with an extra semiconductor layer to cut out disruption from noise
Applications
• Semiconductor manufacturing
• Sensing and measuring instruments
• Material development
• Sensing and measuring instruments
• Material development
The Keysight Technologies Electrometer/High Resistance Meter is the worlds only graphical electrometer that allows you to confidently measures small currents with 0.01 fA (0.01 x 10-15 A) resolution and large resistances of up to 10 PΩ (10 x 1015 Ω). It possesses a 4.3 colour LCD with a graphical user interface that provides trend chart and histogram data in addition to numeric information.
Can I save this electrometer's readings to a storage device?
Maximum current measurement ranges from 2pA to 20mA with 6.5 digits resolution
Greater than 20 μV burden voltage in its lowest current range
Measures resistance up to 10 PΩ (1016 Ω)
Greater than 200 TΩ input impedance for up to 20 V voltage measurement
Versatile interface (USB 2.0: LAN, GPIB, LXI Core)
Greater than 20 μV burden voltage in its lowest current range
Measures resistance up to 10 PΩ (1016 Ω)
Greater than 200 TΩ input impedance for up to 20 V voltage measurement
Versatile interface (USB 2.0: LAN, GPIB, LXI Core)
Yes, this product comes with USB2.0 connectivity, making it easy to save and transfer data to a different device.
Specifications
Attribute | Value |
---|---|
Multimeter Type | Bench |
Display Type | Digital |
Absolute Maximum DC Current Measurement | 20mA dc |
Absolute Maximum AC Voltage Measurement | 20V ac |
Absolute Maximum DC Voltage Measurement | 20V dc |
Absolute Maximum AC Current Measurement | 20mA ac |
Absolute Maximum Temperature Measurement | +45°C |
AC Current Measurement Resolution | 0.01 fA → 20mA |
DC Current Measurement Resolution | 0.01 fA → 20mA |
DC Voltage Measurement Resolution | 1 μV → 20 V |
AC Voltage Measurement Resolution | 1 μV → 20 V |
