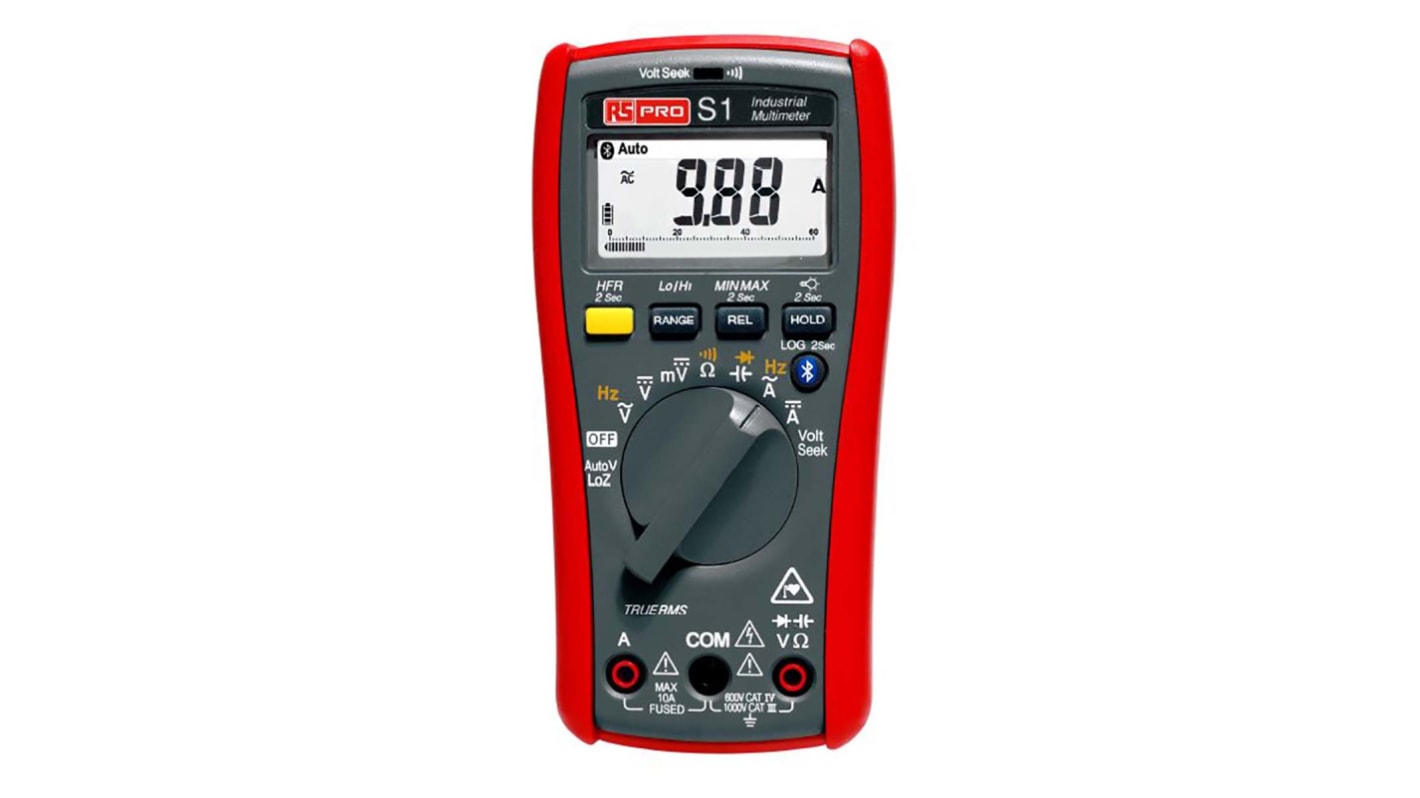

RS PRO S1 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max

View all Multimeters

Subtotal (1 unit)*

£232.78

(exc. VAT)

£279.34

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 91 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
  • Plus 4 unit(s) shipping from 09 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£232.78

*price indicative

Calibration Options:

presentation
RS PRO S1 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max - RS Calibrated
Calibration Type:
RSCAL
RS Stock No.
199-5003

Each

£279.28

(exc. VAT)

£335.14

(inc. VAT)

presentation
RS PRO S1 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max - UKAS Calibrated
Calibration Type:
UKAS
RS Stock No.
199-5004

Each

£303.28

(exc. VAT)

£363.94

(inc. VAT)

RS Stock No.:
199-3846
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Multimeter Type

Handheld

Display Type

Digital

Model Number p

S1

Functions Measured

AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance

Absolute Maximum DC Voltage Measurement

1000V dc

Absolute Maximum AC Voltage Measurement

1000V ac

Absolute Maximum Resistance Measurement

40MΩ

Absolute Maximum AC Current Measurement

10A ac

Absolute Maximum DC Current Measurement

10A dc

Absolute Maximum Capacitance Measurement

10mF

True RMS

Yes

Connectivity

Bluetooth

Maximum Frequency

100kHz

Safety Category Level

CAT III, CAT IV

Height

46mm

Length

165mm

Battery Type

AA

Width

82mm

COO (Country of Origin):
ES

RS PRO Digital Multimeter, 10A ac 1000V ac, 10A dc 1000V dc


Introducing the RS PRO S1 digital multimeter, a compact and robust handheld digital multimeter ideal for measuring a wide range of electrical parameters such as Voltage, Current and Resistance. With the addition of capacitance measurements and selectable frequency measurements, this digital multimeter (DMM) offers exceptional value with high quality and reliable results in a variety of applications. The device features a clean and user friendly interface with a large white LED backlit display, allowing you to easily display measurements in a wide range of environments. With Bluetooth connectivity, you can also save and share data quickly and efficiently to your smart device.

Features and Benefits


  • Perfect for measurement of common parameters including Voltage, Current and Resistance

  • Capacitance measurement offering enhanced measurement capabilities

  • 6,000 counts digital and 60 segments analog display

  • Large white backlit display ensuring measurements can be displayed easily

  • True RMS measurements on ACV/ACA

  • 0.5% DCV accuracy

  • 10A ACA / DCA

  • Frequency measurements on ACV/ACA

  • Diode Test

  • High Frequency Rejection Save and share data quickly and effectively so smart devices via Bluetooth

  • Data Logging / Manual Save up to 4000 records Auto-ranging for quick and easy measurements

  • Min/Max Hold

  • CAT IV 600V/ CATIII 1000V Safety Standards

Applications


Handheld digital multimeters are used in a wide range of applications to test and measure various parameters including Voltage, Current, Resistance and more. Digital multimeters allow you to test and measure electrical devices safely and effectively, providing you with accurate measurements. Many digital multimeters also include additional measurement capabilities and functions such as Capacitance and Frequency. Digital multimeters are commonly used by:
  • Technicians

  • Electricians

  • Engineers

  • Hobbyists

Standards


CAT IV 600V/ CATIII 1000V Safety Standards.

FAQs


Does this feature Diode test?


Yes, the RS PRO S1 features a Diode test function.

Is auto-ranging achievable?


Yes, this device features an auto-ranging measurement function.

Does this include a continuity tester?


Yes, this multimeter features a continuity with built-in buzzer that sounds when measured resistance is less than 20Ω and sounds off when measured resistance is more than 200Ω, between 20Ω to 200Ω the buzzer maybe sound or off either.

What’s included?


Battery (installed), test leads, protective holster and user manual.
