BK Precision BK2712 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 750V ac Max - RS Calibrated
- RS Stock No.:
- 192-5053
- Mfr. Part No.:
- BK2712
- Brand:
- BK Precision
In stock, please allow 1 day for calibration plus 1 working days for delivery
Not available for guaranteed pre 9am/10am delivery
Price Each
£183.56
(exc. VAT)
£220.27
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £183.56 |
- RS Stock No.:
- 192-5053
- Mfr. Part No.:
- BK2712
- Brand:
- BK Precision
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

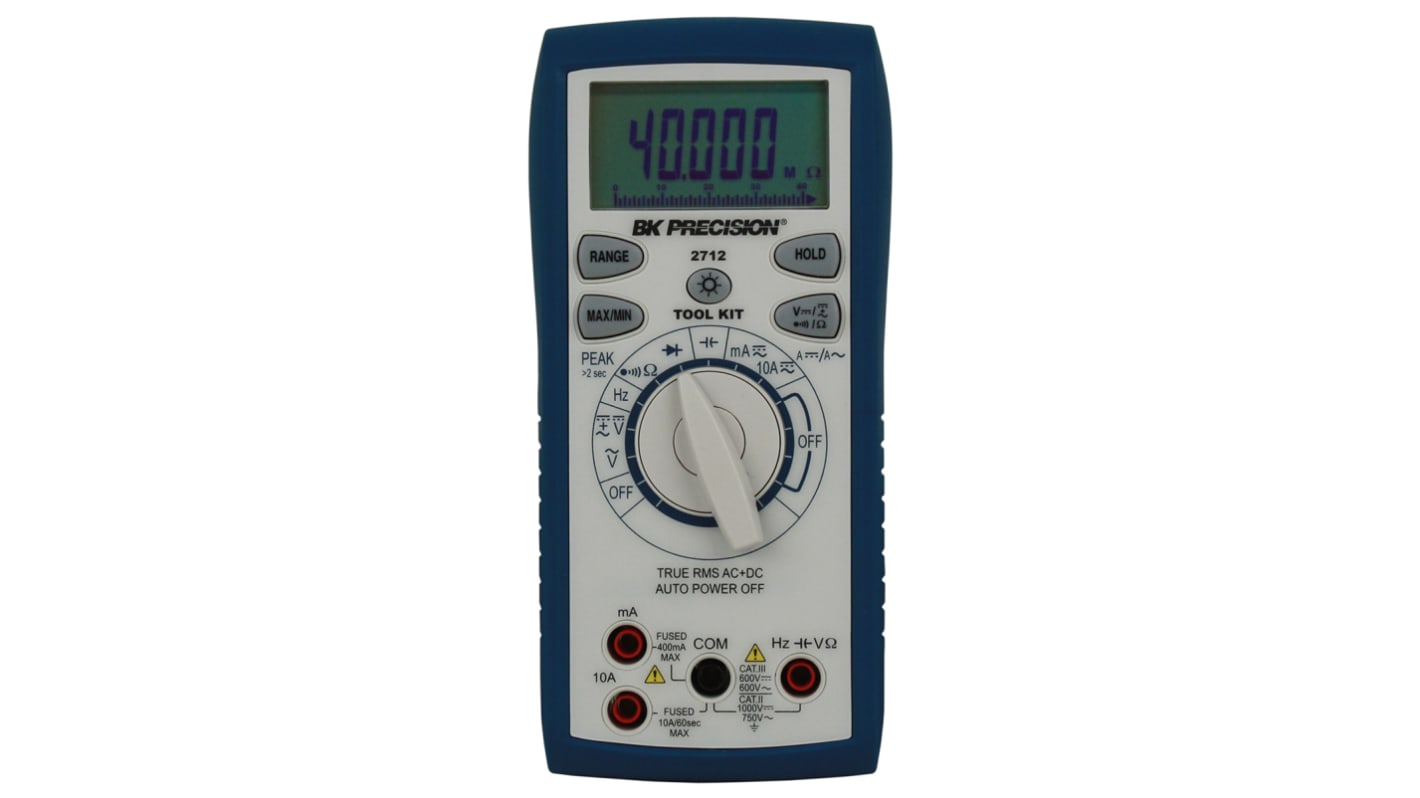

The 2712 is a full featured auto ranging True RMS Digital Multimeter that combines performance, value and functionality. The 40000 count LCD has a green back light that allows the meter to be used in dimly lit environments. The 2712 can measure resistance values up to 40 Mohm and capacitance to 40 uF. With the auto power off feature you won't have to worry about accidental battery consumption.
Magnetic hanger
One-handed operation
True RMS (AC+DC)
Large easy-to-read LCD with backlight
Auto/manual ranging
Auto power off
DC voltage to 1000 V
Measures up to 10 A (AC & DC)
AC voltage to 750 V
Resistance to 40 Mohm
Capacitance to 40 uF
Frequency counter to 500 kHz
Diode test
Continuity test
One-handed operation
True RMS (AC+DC)
Large easy-to-read LCD with backlight
Auto/manual ranging
Auto power off
DC voltage to 1000 V
Measures up to 10 A (AC & DC)
AC voltage to 750 V
Resistance to 40 Mohm
Capacitance to 40 uF
Frequency counter to 500 kHz
Diode test
Continuity test
Specifications
Attribute | Value |
|---|---|
| Multimeter Type | Handheld |
| Display Type | Digital |
| Model Number p | BK2712 |
| Calibrated | RSCAL |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum AC Voltage Measurement | 750V ac |
| Absolute Maximum Resistance Measurement | 40MΩ |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum Capacitance Measurement | 40µF |
| Maximum Frequency | 1kHz |
| DC Current Measurement Resolution | 1µA dc |
| AC Current Measurement Resolution | 1µA ac |
| DC Voltage Measurement Resolution | 0.01mV dc |
| AC Voltage Measurement Resolution | 0.01mV ac |
| Resistance Measurement Resolution | 10mΩ |
| Safety Category Level | CAT II, CAT III |
| Capacitance Measurement Resolution | 1pF |
| Maximum Operating Temperature | +50°C |
| Best Resistance Measurement Accuracy | ±1.5% + 20 Digits |
| Best AC Current Accuracy | ±2.5% + 30 Digits |
| Best AC Voltage Accuracy | ±2% + 20 Digits |
| Best Capacitance Measurement Accuracy | ±5% +5 Digits |
| Minimum Operating Temperature | 0°C |
| Height | 165mm |
| Dimensions | 78 x 42.5 x 165mm |
| Best DC Voltage Accuracy | ±0.15% + 10 Digits |
| Weight | 285g |
| Length | 78mm |
| Width | 42.5mm |
| Battery Type | 9V |
| Best DC Current Accuracy | ±2% + 10 Digits |
| Safety Category Voltage | 600 V, 750 V, 1000V |
