Fluke 175 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max - RS Calibrated
- RS Stock No.:
- 250-725
- Mfr. Part No.:
- FLUKE 175
- Brand:
- Fluke
Subtotal (1 unit)*
£392.93
(exc. VAT)
£471.52
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 93 unit(s) ready to ship
- Plus 52 unit(s) shipping from 24 October 2025
- Plus 85 unit(s) shipping from 06 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £392.93 |
*price indicative
- RS Stock No.:
- 250-725
- Mfr. Part No.:
- FLUKE 175
- Brand:
- Fluke
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluke | |
| Multimeter Type | Handheld | |
| Model Number p | 175 | |
| Display Type | Digital | |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance | |
| Calibrated | RSCAL | |
| Absolute Maximum Resistance Measurement | 50MΩ | |
| Absolute Maximum AC Current Measurement | 10A ac | |
| Absolute Maximum DC Current Measurement | 10A dc | |
| Absolute Maximum DC Voltage Measurement | 1000V dc | |
| Absolute Maximum AC Voltage Measurement | 1000V ac | |
| Absolute Maximum Capacitance Measurement | 9.999F | |
| True RMS | Yes | |
| Maximum Frequency | 100kHz | |
| DC Current Measurement Resolution | 0.01mA dc | |
| AC Current Measurement Resolution | 0.01mA ac | |
| DC Voltage Measurement Resolution | 0.1mV dc | |
| Resistance Measurement Resolution | 100mΩ | |
| AC Voltage Measurement Resolution | 0.1mV ac | |
| Safety Category Level | CAT III, CAT IV | |
| Capacitance Measurement Resolution | 1nF | |
| Dimensions | 185 x 90 x 43mm | |
| Best Capacitance Measurement Accuracy | ±10 % | |
| Best AC Voltage Accuracy | ±1% + 3 Digits | |
| Best AC Current Accuracy | ±1.5% + 3 Digits | |
| Width | 90mm | |
| Best DC Current Accuracy | ±1% + 3 Digits | |
| Safety Category Voltage | 600 V, 1000V | |
| Best DC Voltage Accuracy | ±0.15% + 2 Digits | |
| Best Resistance Measurement Accuracy | ±1.5% + 3 Digits | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +50°C | |
| Length | 185mm | |
| Battery Type | 9 V | |
| Height | 43mm | |
| Weight | 420g | |
Select all | ||
|---|---|---|
Brand Fluke | ||
Multimeter Type Handheld | ||
Model Number p 175 | ||
Display Type Digital | ||
Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance | ||
Calibrated RSCAL | ||
Absolute Maximum Resistance Measurement 50MΩ | ||
Absolute Maximum AC Current Measurement 10A ac | ||
Absolute Maximum DC Current Measurement 10A dc | ||
Absolute Maximum DC Voltage Measurement 1000V dc | ||
Absolute Maximum AC Voltage Measurement 1000V ac | ||
Absolute Maximum Capacitance Measurement 9.999F | ||
True RMS Yes | ||
Maximum Frequency 100kHz | ||
DC Current Measurement Resolution 0.01mA dc | ||
AC Current Measurement Resolution 0.01mA ac | ||
DC Voltage Measurement Resolution 0.1mV dc | ||
Resistance Measurement Resolution 100mΩ | ||
AC Voltage Measurement Resolution 0.1mV ac | ||
Safety Category Level CAT III, CAT IV | ||
Capacitance Measurement Resolution 1nF | ||
Dimensions 185 x 90 x 43mm | ||
Best Capacitance Measurement Accuracy ±10 % | ||
Best AC Voltage Accuracy ±1% + 3 Digits | ||
Best AC Current Accuracy ±1.5% + 3 Digits | ||
Width 90mm | ||
Best DC Current Accuracy ±1% + 3 Digits | ||
Safety Category Voltage 600 V, 1000V | ||
Best DC Voltage Accuracy ±0.15% + 2 Digits | ||
Best Resistance Measurement Accuracy ±1.5% + 3 Digits | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +50°C | ||
Length 185mm | ||
Battery Type 9 V | ||
Height 43mm | ||
Weight 420g | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CZ

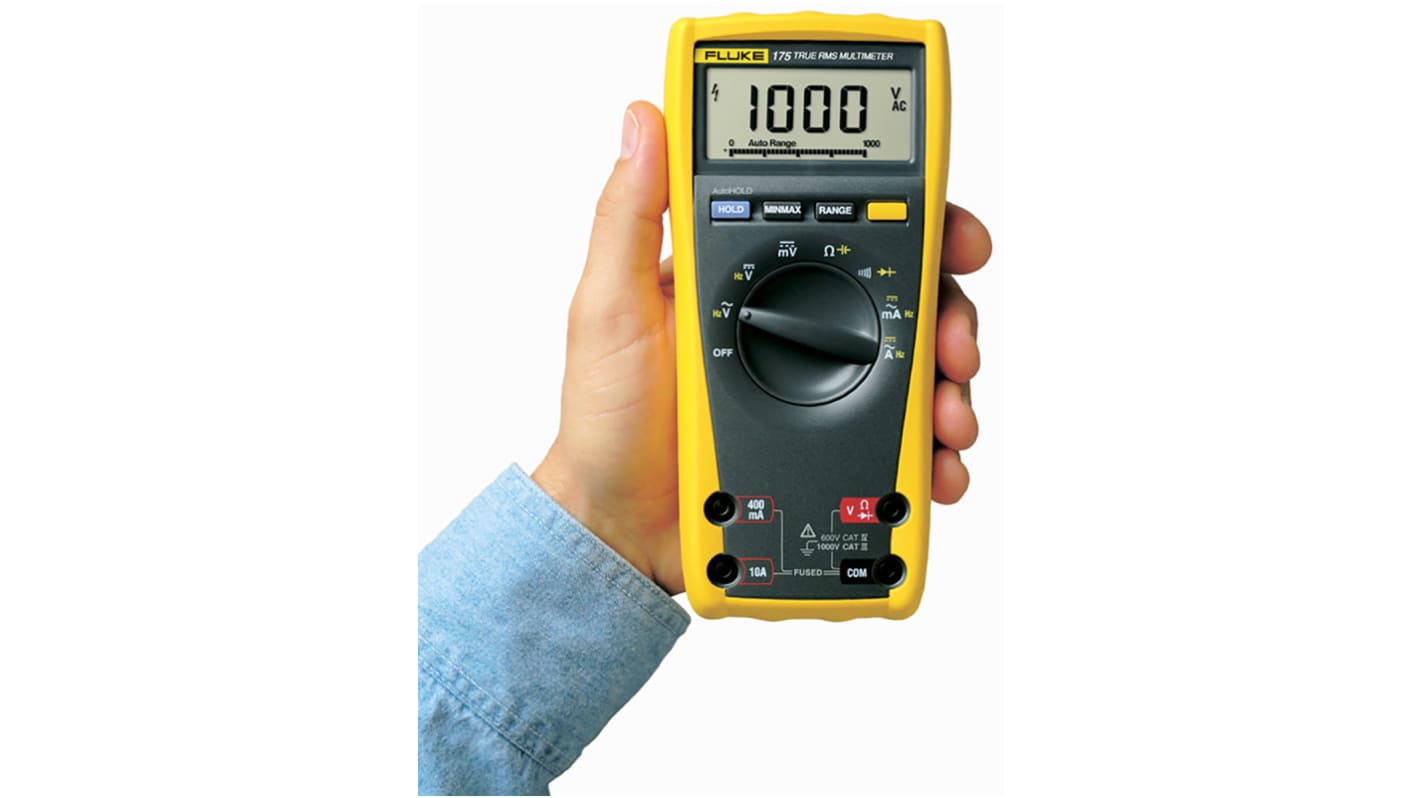

Fluke 175 True-RMS Digital Multimeter
Fluke 175 Series digital multimeters, offers precision, reliability and ease of use. The ideal choice for troubleshooting and repairing all your electrical and electronic systems. True RMS digital multimeters ensures accurate results even when testing on irregular AC circuits.
Features and Benefits
• The Fluke 175 meters have the features needed to find most electrical, electro-mechanical and heating and ventilation problems.
• They are simple to use and have significant improvements over previous models, True-RMS, more measurement functions, conformance to the latest safety standards, and a much larger display that’s easier to view.
• They are simple to use and have significant improvements over previous models, True-RMS, more measurement functions, conformance to the latest safety standards, and a much larger display that’s easier to view.
Specification
• True-RMS measurements
• Digital display counts, updates 4 times per second
• Display backlight
• Analogue bargraph / segments, updates 40 times per second
• Auto and Manual ranging
• Display Hold and AutoHOLD®
• Min-Max-Average recording mode with Min/Max Alert
• Temperature readings (bead thermocouple probe included)
• Smoothing mode allows filtering of rapidly changing inputs
• Audible continuity and diode test
• Test lead alert
• Unsafe voltage alert warns for voltages above 30 V
• Low battery indication
• Ergonomic case with integrated holster
• Easy battery and fuse exchange without opening the complete case
• Selectable sleep mode preserves battery life
• CAT III 1000V and CAT IV 600V safety rated
• Digital display counts, updates 4 times per second
• Display backlight
• Analogue bargraph / segments, updates 40 times per second
• Auto and Manual ranging
• Display Hold and AutoHOLD®
• Min-Max-Average recording mode with Min/Max Alert
• Temperature readings (bead thermocouple probe included)
• Smoothing mode allows filtering of rapidly changing inputs
• Audible continuity and diode test
• Test lead alert
• Unsafe voltage alert warns for voltages above 30 V
• Low battery indication
• Ergonomic case with integrated holster
• Easy battery and fuse exchange without opening the complete case
• Selectable sleep mode preserves battery life
• CAT III 1000V and CAT IV 600V safety rated
FAQ’s
Q: Can I use the 175 to test if a fuse is good or bad?
A: Yes, you can check a fuse functionality via a continuity test.
Q: Is this Fluke 175 multi meter suitable for automotive use?
A: Yes, this multimeter is perfect for automotive applications and much more.
Q: Does this come with a calibration certificate?
A: All calibrated option multimeters are supplied with the appropriate certifications.
A: Yes, you can check a fuse functionality via a continuity test.
Q: Is this Fluke 175 multi meter suitable for automotive use?
A: Yes, this multimeter is perfect for automotive applications and much more.
Q: Does this come with a calibration certificate?
A: All calibrated option multimeters are supplied with the appropriate certifications.
Application Information
Fluke Digital Multimeters are a standard diagnostic tool, ideal choice for technicians in the electrical/electronic industries. Technicians with specific task needs can view our wide range of multimeters.
Supplied with
Fluke 175 True-RMS Digital Multimeter
(1 pair) Test Leads
9V Battery (Installed)
Quick reference guide
(1 pair) Test Leads
9V Battery (Installed)
Quick reference guide
FLUKE Multimeter, Backlit Display, 200h Battery Life - 170 Series - FLUKE 175
Get the full measure of your electric circuit with this multimeter from FLUKE. It's a versatile tool that takes multiple readings, from AC/DC voltage, current and resistance to capacitance, continuity and frequency levels. Thanks to its bright backlit display, you won't have a problem using it in the dark. A typical battery life of 200h makes this a trusty choice for long-term use. To conserve its battery, you can put the unit into sleep mode.
Features & Benefits
• Typical battery life of 200h for portability
• AutoHOLD button for convenient recording of results
• Smoothing mode filters input signals for clear readings
• AutoHOLD button for convenient recording of results
• Smoothing mode filters input signals for clear readings
Applications
• DIY repairs
• Automotive engineering
• HVAC systems
• Automotive engineering
• HVAC systems
What's the voltage measurement range of the multimeter?
Thanks to a voltage measurement range of 0.1mV to 1000V AC/DC, you can use this device in applications with both low and high power.
How accurate is this multimeter?
The product has an accuracy rating of ±1% for AC and ±0.15% for DC voltage measurements. For current, it has an accuracy rating of ±1.5% for AC and ±1% for DC, so you can be sure your margin of error is low.
