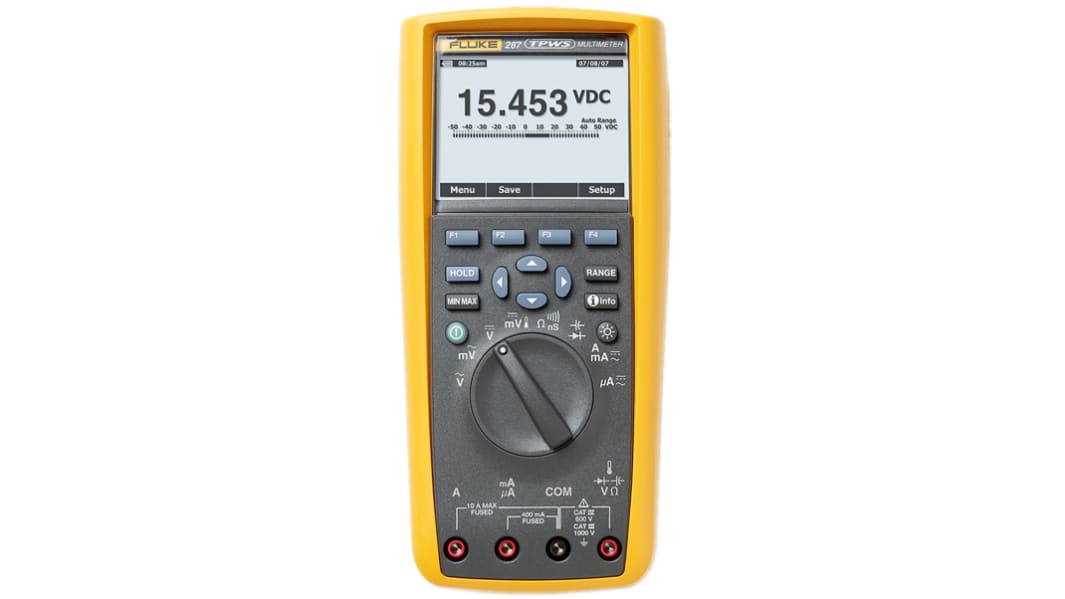

Fluke 287 Handheld Multimeter True RMS, 10 A, 10 A, 1 kV
- RS Stock No.:
- 156-724
- Distrelec Article No.:
- 176-09-210
- Mfr. Part No.:
- FLUKE 287/EUR
- Brand:
- Fluke
Subtotal (1 unit)*
£898.00
(exc. VAT)
£1,077.60
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 32 unit(s) shipping from 09 November 2026
- Plus 14 unit(s) shipping from 09 November 2026
- Plus 20 unit(s) shipping from 19 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £898.00 |
*price indicative
- RS Stock No.:
- 156-724
- Distrelec Article No.:
- 176-09-210
- Mfr. Part No.:
- FLUKE 287/EUR
- Brand:
- Fluke
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluke | |
| Product Type | Multimeter | |
| Multimeter Type | Handheld | |
| Model Number | 287 | |
| Resistance Resolution | 500Ω | |
| Display Type | Digital | |
| Functions Measured | AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature | |
| Maximum DC Current Measurement | 10A | |
| Maximum AC Current Measurement | 10A | |
| Maximum DC Voltage Measurement | 1kV dc | |
| Maximum AC Voltage Measurement | 1kV | |
| Maximum Resistance Measurement | 0.5GΩ | |
| True RMS | Yes | |
| AC Current Accuracy | ± 0.6 % | |
| AC Voltage Accuracy | ± 0.4 % | |
| DC Voltage Accuracy | ±0.025 % | |
| DC Current Accuracy | ±0.15 % | |
| AC Current Resolution | 500μA | |
| DC Current Resolution | 500μA | |
| AC Voltage Resolution | 50mV | |
| DC Voltage Resolution | 50 mV | |
| Maximum Frequency | 999.99kHz | |
| Power Source | Battery | |
| Minimum Operating Temperature | -20°C | |
| Resistance Measurement Accuracy | ±0.05 % rdg | |
| Maximum Operating Temperature | 55°C | |
| Battery Life | 200h | |
| Width | 102mm | |
| Standards/Approvals | No | |
| Weight | 870.9g | |
| Length | 60mm | |
| Height | 222mm | |
| Safety Category Level | CAT III, CAT IV | |
| Battery Type | AA x 6 | |
| Safety Category Voltage | 1kV | |
| Select all | ||
|---|---|---|
Brand Fluke | ||
Product Type Multimeter | ||
Multimeter Type Handheld | ||
Model Number 287 | ||
Resistance Resolution 500Ω | ||
Display Type Digital | ||
Functions Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature | ||
Maximum DC Current Measurement 10A | ||
Maximum AC Current Measurement 10A | ||
Maximum DC Voltage Measurement 1kV dc | ||
Maximum AC Voltage Measurement 1kV | ||
Maximum Resistance Measurement 0.5GΩ | ||
True RMS Yes | ||
AC Current Accuracy ± 0.6 % | ||
AC Voltage Accuracy ± 0.4 % | ||
DC Voltage Accuracy ±0.025 % | ||
DC Current Accuracy ±0.15 % | ||
AC Current Resolution 500μA | ||
DC Current Resolution 500μA | ||
AC Voltage Resolution 50mV | ||
DC Voltage Resolution 50 mV | ||
Maximum Frequency 999.99kHz | ||
Power Source Battery | ||
Minimum Operating Temperature -20°C | ||
Resistance Measurement Accuracy ±0.05 % rdg | ||
Maximum Operating Temperature 55°C | ||
Battery Life 200h | ||
Width 102mm | ||
Standards/Approvals No | ||
Weight 870.9g | ||
Length 60mm | ||
Height 222mm | ||
Safety Category Level CAT III, CAT IV | ||
Battery Type AA x 6 | ||
Safety Category Voltage 1kV | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US
Fluke Multimeter, 1000V Safety Category Voltage, 10A Maximum AC Current Measurement - 3947781
This multimeter is a handheld digital instrument designed to measure electrical quantities across AC and DC systems, with extended capabilities for temperature, frequency and capacitance assessments. It operates from battery power and is intended for use in environments requiring high-voltage measurement and robust safety categorisation.
Features and Benefits:
• True RMS measurement for accurate AC readings in non‑sinusoidal signals
• 1kV DC and 1000V AC rating for high‑voltage diagnostic tasks
• 10A maximum current range supporting both AC and DC circuits
• Frequency range to 999.99kHz for detailed signal analysis
• Resistance range to 0.5GΩ for high‑impedance component testing
• Battery life approximately 200 h using six AA cells
• 1kV DC and 1000V AC rating for high‑voltage diagnostic tasks
• 10A maximum current range supporting both AC and DC circuits
• Frequency range to 999.99kHz for detailed signal analysis
• Resistance range to 0.5GΩ for high‑impedance component testing
• Battery life approximately 200 h using six AA cells
Applications
• Suitable for industrial high‑voltage system troubleshooting
• Ideal for verification of motor drive frequency outputs
• Used for capacitance checks on control circuit components
• Can be used for HVAC temperature monitoring and diagnostics
• Used with power distribution panels requiring CAT IV safety levels
• Ideal for verification of motor drive frequency outputs
• Used for capacitance checks on control circuit components
• Can be used for HVAC temperature monitoring and diagnostics
• Used with power distribution panels requiring CAT IV safety levels
What battery type does it use and how long will it last under normal use?
It uses six AA batteries and provides approximately 200 h of operational life.
What safety categories and maximum voltages are supported for live work?
The instrument meets CAT III and CAT IV classifications and is rated for 1000 V safety category voltage.
What resolution and accuracy can I expect for DC voltage measurements?
DC voltage resolution is 50 mV with an accuracy of ±0.025% for precise readings.
How fine is the DC current measurement capability?
DC current resolution is 500 μA with an accuracy of ±0.05% for sensitive current monitoring.
What are the instrument's environmental operating limits?
It operates between −20 °C and 55 °C for typical field and workshop conditions.
Supplied with
It comes complete with test leads and alligator clips, so you're set up to tackle most applications.
