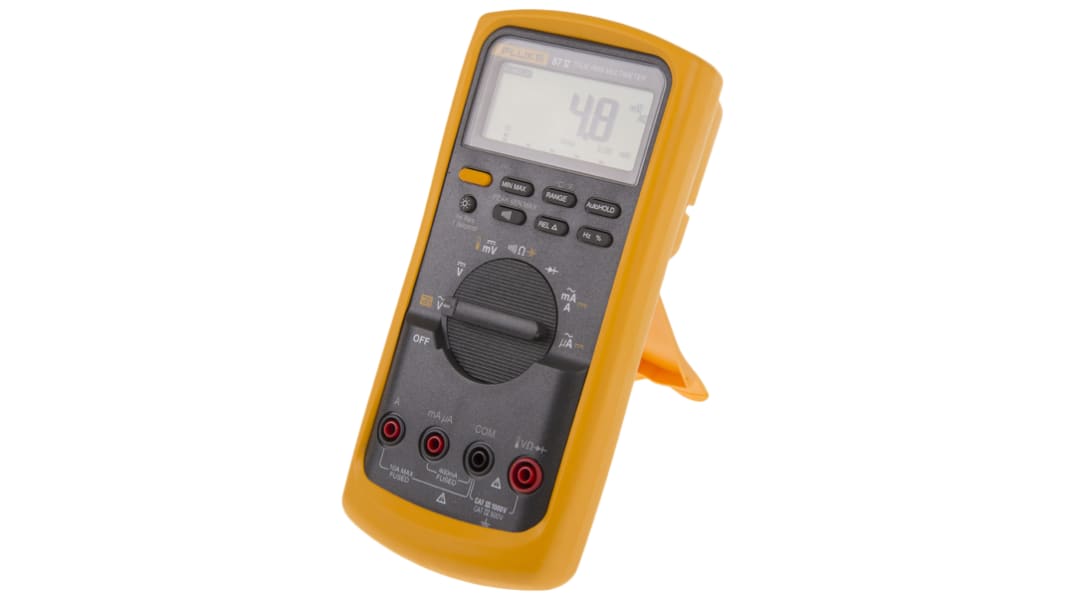

Fluke 87V 87V Digital Digital Multimeter True RMS, 10 A, 10 A, 1000 V, RSCAL Calibrated
- RS Stock No.:
- 481-8142
- Mfr. Part No.:
- FLUKE-87-V/EUR
- Brand:
- Fluke
Subtotal (1 unit)*
£594.50
(exc. VAT)
£713.40
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- 102 left, ready to ship
- Plus 38 left, shipping from 27 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £594.50 |
*price indicative
- RS Stock No.:
- 481-8142
- Mfr. Part No.:
- FLUKE-87-V/EUR
- Brand:
- Fluke
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fluke | |
| Multimeter Type | Digital | |
| Product Type | Multimeter | |
| Display Type | Digital | |
| Model Number | 87V | |
| Resistance Resolution | 100mΩ | |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Resistance, Temperature | |
| Maximum AC Voltage Measurement | 1000V | |
| Maximum Resistance Measurement | 50mΩ | |
| Maximum DC Voltage Measurement | 1000V | |
| Maximum DC Current Measurement | 10A | |
| Maximum AC Current Measurement | 10A | |
| True RMS | Yes | |
| DC Current Accuracy | ±0.2 % rdg + 2 Digits | |
| DC Voltage Accuracy | ±0.05 % rdg + 1 Digits | |
| AC Current Accuracy | ±1 % rdg + 2 Digits | |
| AC Voltage Accuracy | ± 0.7 % + 2 | |
| AC Voltage Resolution | 0.1mV ac | |
| AC Current Resolution | 0.1μA ac | |
| DC Voltage Resolution | 0.1 mV dc | |
| DC Current Resolution | 0.1μA dc | |
| Maximum Frequency | 20kHz | |
| Power Source | Battery | |
| Minimum Operating Temperature | -20°C | |
| Resistance Measurement Accuracy | ±1 % rdg + 3 Digits | |
| Battery Life | 400h | |
| Maximum Operating Temperature | 55°C | |
| Weight | 355g | |
| Length | 186mm | |
| Height | 31mm | |
| Standards/Approvals | No | |
| Series | 87V | |
| Width | 86mm | |
| Safety Category Level | CAT III, CAT IV | |
| Calibrated | RSCAL | |
| Safety Category Voltage | 1000V | |
| Battery Type | Alkaline | |
| Select all | ||
|---|---|---|
Brand Fluke | ||
Multimeter Type Digital | ||
Product Type Multimeter | ||
Display Type Digital | ||
Model Number 87V | ||
Resistance Resolution 100mΩ | ||
Functions Measured AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Resistance, Temperature | ||
Maximum AC Voltage Measurement 1000V | ||
Maximum Resistance Measurement 50mΩ | ||
Maximum DC Voltage Measurement 1000V | ||
Maximum DC Current Measurement 10A | ||
Maximum AC Current Measurement 10A | ||
True RMS Yes | ||
DC Current Accuracy ±0.2 % rdg + 2 Digits | ||
DC Voltage Accuracy ±0.05 % rdg + 1 Digits | ||
AC Current Accuracy ±1 % rdg + 2 Digits | ||
AC Voltage Accuracy ± 0.7 % + 2 | ||
AC Voltage Resolution 0.1mV ac | ||
AC Current Resolution 0.1μA ac | ||
DC Voltage Resolution 0.1 mV dc | ||
DC Current Resolution 0.1μA dc | ||
Maximum Frequency 20kHz | ||
Power Source Battery | ||
Minimum Operating Temperature -20°C | ||
Resistance Measurement Accuracy ±1 % rdg + 3 Digits | ||
Battery Life 400h | ||
Maximum Operating Temperature 55°C | ||
Weight 355g | ||
Length 186mm | ||
Height 31mm | ||
Standards/Approvals No | ||
Series 87V | ||
Width 86mm | ||
Safety Category Level CAT III, CAT IV | ||
Calibrated RSCAL | ||
Safety Category Voltage 1000V | ||
Battery Type Alkaline | ||
RoHS Status: Exempt
- COO (Country of Origin):
- US
Fluke Multimeter, 1000V Maximum DC Voltage, True RMS Functionality - FLUKE-87-V/EUR
This multimeter is a handheld instrument designed for industrial electrical measurement and troubleshooting in automation, power distribution and electromechanical systems. It measures AC and DC voltage and current, frequency, resistance, capacitance, continuity, diode function and temperature, and is intended for use on complex, noisy signals such as those found at variable-frequency drives and motor terminals.
Features & Benefits
• True-RMS AC measurements for accurate non-linear signal readings
• 1000V DC and AC rating for high-voltage system diagnostics
• AC current range up to 10 A for motor and load checks
• DC voltage accuracy to ±0.05% for precision voltage measurements
• Captures events as short as 250 μs to find intermittent faults
• Built-in thermometer and temperature probe for thermal diagnostics
• 1000V DC and AC rating for high-voltage system diagnostics
• AC current range up to 10 A for motor and load checks
• DC voltage accuracy to ±0.05% for precision voltage measurements
• Captures events as short as 250 μs to find intermittent faults
• Built-in thermometer and temperature probe for thermal diagnostics
**Applications**
• Suitable for troubleshooting VFDs and motor-drive systems
• Ideal for plant automation signal verification and maintenance
• Used for power distribution fault finding and commissioning
• Can be used for electromechanical equipment servicing
• Suitable for electrical testing in industrial electronics setups
• Ideal for plant automation signal verification and maintenance
• Used for power distribution fault finding and commissioning
• Can be used for electromechanical equipment servicing
• Suitable for electrical testing in industrial electronics setups
What frequency range can it measure and why does that matter?
It measures up to 200 kHz, allowing accurate frequency checks on high-bandwidth control signals and variable-frequency drives.
How does the instrument handle noisy, high-energy environments?
Special internal shielding reduces high-frequency interference, improving measurement stability on motor terminals and drive outputs.
What temperature measurement range is available with the supplied probe?
The included temperature probe covers −40.0 °C to 260 °C for component and bearing temperature checks.
How long will the unit operate on standard batteries during field use?
Typical alkaline battery life is around 400 h without backlight, supporting extended on-site use.
What resistance and capacitance capabilities aid component diagnostics?
It measures resistance to 50 MΩ and capacitance to 9,999 μF, enabling a broad range of passive component tests.
Note
For Calibrated articles - Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 90 %
Supplied with
TL75 test leads, AC175 alligator clips, yellow holster, 9V battery, temperature probe, user manual, operators guide
