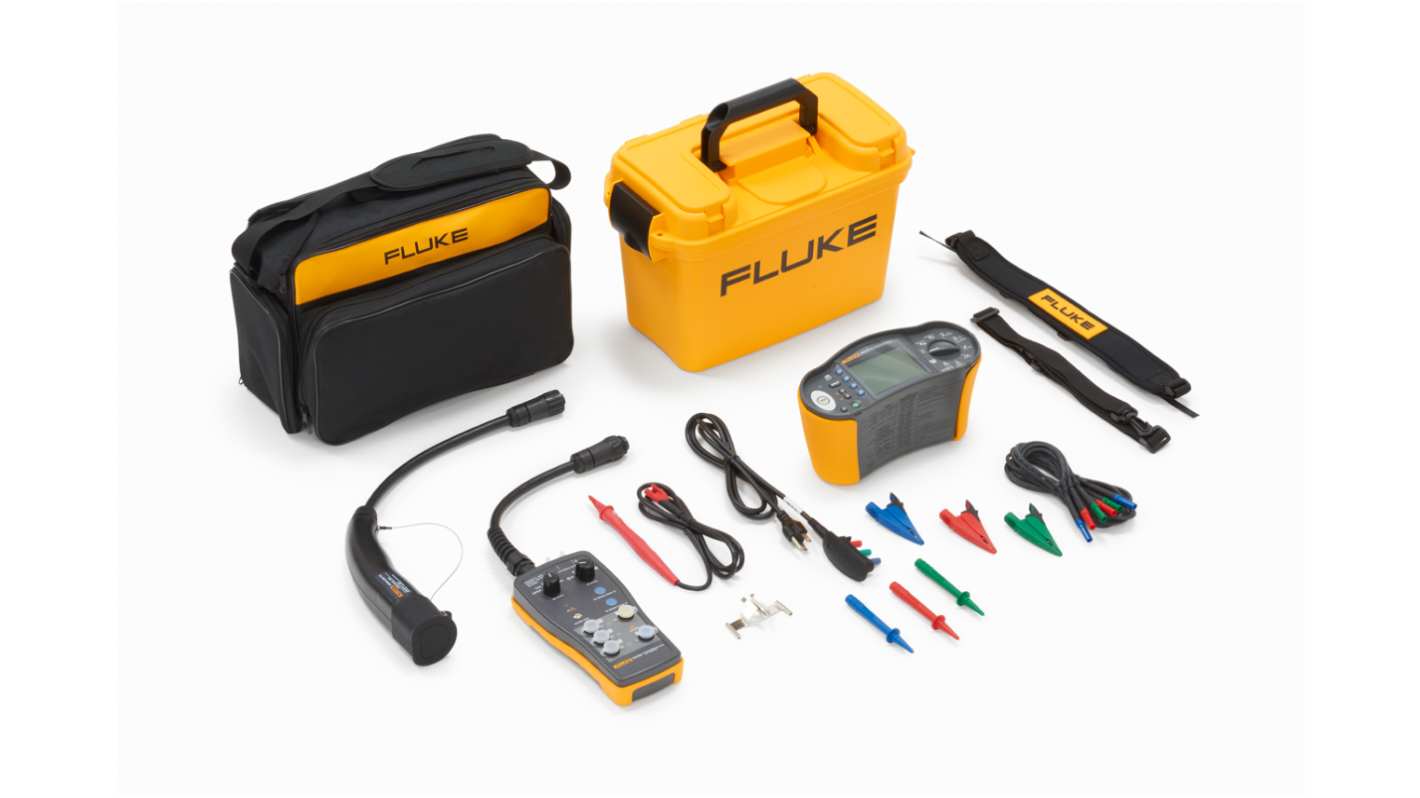

Fluke Fluke 1663 Multifunction Tester 1000V Earth Resistance Measurement With IR USB

RS Stock No.:: 205-091
Mfr. Part No.:: 1663 UK/FEV300
Brand:: Fluke

Fluke Fluke 1663 Multifunction Tester 1000V Earth Resistance Measurement With IR USB

Currently unavailable

We don't know if this item will be back in stock, RS intend to remove it from our range soon.

RS Stock No.:: 205-091
Mfr. Part No.:: 1663 UK/FEV300
Brand:: Fluke

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Fluke
	Loop Impedance Test Type	High/Low Current
	Product Type	Multifunction Tester
	Automatic RCD Test	Yes
	Model Number	Fluke 1663
	RCD Ramp Test	Yes
	Non-Tripping	No
	Insulation Test Voltage	1000V
	Maximum Voltage Measurement	500V
	Test Type	Installation
	Earth Resistance Measurement	Yes
	Downloadable Data	Yes
	Interface Type	IR USB
	RCD Test Type	Type G, AC, Type S
	Remote Switch Mode	Yes
	Weight	1.3kg
	Length	100.00mm
	Standards/Approvals	ANSI/ISA -s82.02.01 and CAN/CSA c22.2 No. 1010, UL61010, Complies IEC/EN610101
	Height	12.5cm
	Width	25cm
	IP Rating	IP40
	Test Standards	IEC 60364, all relevant local Standard
	Power Source	Battery
	Safety Category Level	CAT IV 300 V, Philips
	Battery Type	1.5V AA
	Maximum Operating Temperature	40°C
	Minimum Continuity Resistance	20Ω
	Maximum Continuity Resistance	2000Ω
	Minimum Operating Temperature	-20°C

	Select all
	Brand Fluke
	Loop Impedance Test Type High/Low Current
	Product Type Multifunction Tester
	Automatic RCD Test Yes
	Model Number Fluke 1663
	RCD Ramp Test Yes
	Non-Tripping No
	Insulation Test Voltage 1000V
	Maximum Voltage Measurement 500V
	Test Type Installation
	Earth Resistance Measurement Yes
	Downloadable Data Yes
	Interface Type IR USB
	RCD Test Type Type G, AC, Type S
	Remote Switch Mode Yes
	Weight 1.3kg
	Length 100.00mm
	Standards/Approvals ANSI/ISA -s82.02.01 and CAN/CSA c22.2 No. 1010, UL61010, Complies IEC/EN610101
	Height 12.5cm
	Width 25cm
	IP Rating IP40
	Test Standards IEC 60364, all relevant local Standard
	Power Source Battery
	Safety Category Level CAT IV 300 V, Philips
	Battery Type 1.5V AA
	Maximum Operating Temperature 40°C
	Minimum Continuity Resistance 20Ω
	Maximum Continuity Resistance 2000Ω
	Minimum Operating Temperature -20°C

Datasheet - 1663 UK/FEV300

COO (Country of Origin):: GB

Fluke Multifunction Tester, 500V Maximum Voltage Measurement, 1000V Insulation Test Voltage - 1663 UK/FEV300

This multifunction tester is a portable instrument for verifying electrical installations and protective devices in accordance with relevant standards. It performs insulation checks up to 1000V, continuity measurements, loop impedance and earth resistance assessments, and automated RCD testing, with data export capability via IR USB for reporting and audit purposes.

Features and Benefits:

• Measures insulation with 1000V for high-voltage integrity testing
• Continuity range to 2000 Ω for conductor verification
• Performs loop impedance high and low current for fault current assessment
• Executes RCD ramp and automatic tests for relay performance evaluation
• Earth resistance measurement function for earthing checks
• Battery powered using 1.5V AA cells for field mobility

Applications

• Suitable for on-site electrical installation verification to IEC 60364
• Ideal for RCD testing Type G AC Type S in domestic environments
• Used for loop impedance high and low current testing on distribution circuits
• Can be used for earth resistance meter tasks at earthing points
• Suitable for portable IR USB multifunction tester data collection

What safety rating applies when working near supply equipment?

The instrument is rated to CAT IV 300V which defines its safe use close to the origin of the low-voltage installation.

How does the tester handle temperature variations on site?

It operates between -20 °C and 40 °C, allowing use in varied environmental conditions without performance degradation.

What interfaces are available for transferring recorded measurements?

Measurement data can be exported using the built-in IR USB interface for subsequent analysis.

Which standards guide its installation testing routines?

Test methods conform to IEC 60364 and applicable local standards for installation verification.
