Fluke Multi-Function Calibrator, 110 mA, 300V ac/dc 136 mm 245 mm 245 mm - RSCAL

RS Stock No.:: 253-2275
Mfr. Part No.:: FLUKE 754
Brand:: Fluke

Fluke Multi-Function Calibrator, 110 mA, 300V ac/dc 136 mm 245 mm 245 mm - RSCAL

Subtotal (1 unit)*

£9,198.00

(exc. VAT)

£11,037.60

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

5 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£9,198.00

*price indicative

RS Stock No.:: 253-2275
Mfr. Part No.:: FLUKE 754
Brand:: Fluke

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Fluke
	Product Type	Multi-Function Calibrator
	Maximum Voltage Measurement	300V ac/dc
	Port Connections	Pressure Module
	Maximum Current Measurement	110mA
	Battery Life	8h
	Battery Type	Lithium-ion
	Power Source	Battery
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	50°C
	Length	245mm
	Hazardous Area Certification	No
	Width	245 mm
	Standards/Approvals	and EN6101:1993, ASNI/ISA S82.011994, UL3111, CAN/CSA C22.2 No 1010.192
	Height	136mm
	Weight	1.2kg
	Calibrated	RSCAL

	Select all
	Brand Fluke
	Product Type Multi-Function Calibrator
	Maximum Voltage Measurement 300V ac/dc
	Port Connections Pressure Module
	Maximum Current Measurement 110mA
	Battery Life 8h
	Battery Type Lithium-ion
	Power Source Battery
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature 50°C
	Length 245mm
	Hazardous Area Certification No
	Width 245 mm
	Standards/Approvals and EN6101:1993, ASNI/ISA S82.011994, UL3111, CAN/CSA C22.2 No 1010.192
	Height 136mm
	Weight 1.2kg
	Calibrated RSCAL

COO (Country of Origin):: US

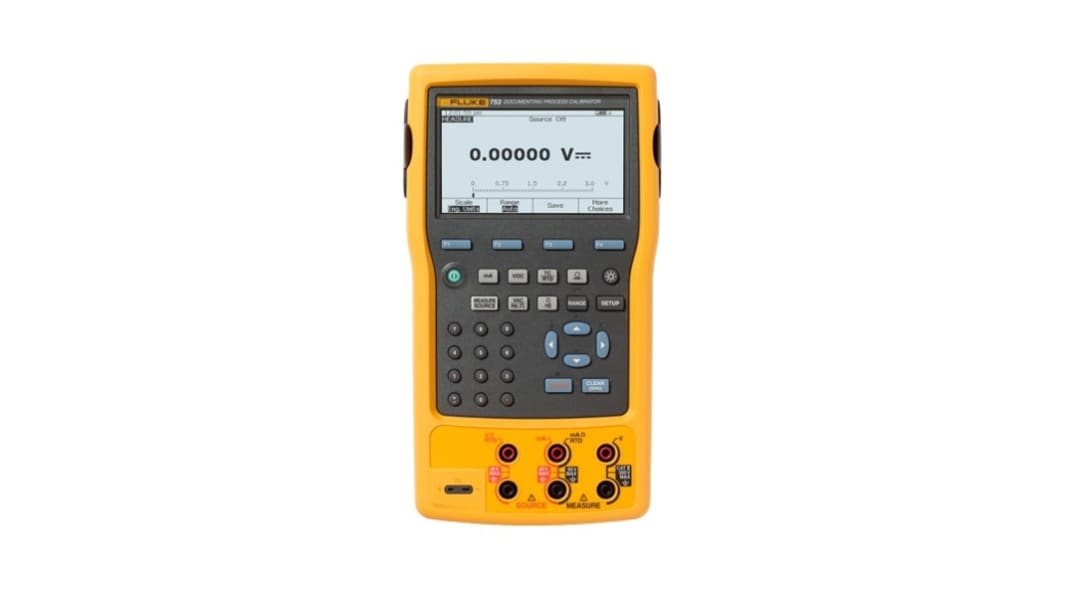

Fluke Multi-Function Calibrator, 300V Maximum Voltage Measurement, 25mA Maximum Current Measurement - FLUKE 754

This multi-function calibrator provides portable, documented calibration and troubleshooting for process instrumentation in industrial settings. It combines sourcing, simulation and measurement of electrical signals with pressure and temperature capabilities, and includes a HART Interface for configuring smart transmitters and exchanging calibration data with management software.

Features & Benefits

• Sources and measures voltage from 100 mV–300V for versatile testing
• Sources and sinks up to 25 mA to validate loop devices
• Rechargeable lithium‑ion battery enables greater than 8 h typical operation
• Compatible with pressure module connector for modular pressure work
• Records up to 8 000 readings to document calibration results
• Bright dual display shows sourced and measured values simultaneously

Applications

• Suitable for commissioning and calibrating control valves and transmitters
• Ideal for HART transmitter configuration and fault diagnosis
• Used with pressure modules for differential pressure transmitter checks
• Can be used for on-site temperature sensor verification and RTD testing
• Suitable for recording as‑found and as‑left calibration procedures

How is data transferred to a PC for archiving?

A USB connection allows download of recorded procedures and results to calibration management software supplied with the unit.

What environmental range supports field operations?

It operates between −10 °C and +50 °C and meets IP52 dust/water resistance for typical industrial environments.

Which safety and regulatory approvals does it meet?

The instrument carries approvals listed under EN 610-1, ANSI/ISA S82.01-1994, UL 3111, and CAN/CSA C22.2 No. 1010.1-92.

How long can it store procedures and results offline?

The internal storage holds approximately one week of downloaded procedures and documented calibration results.

What are the physical handling benefits for technicians?

The handheld unit weighs 1.2 kg and includes a side port for quick connection of pressure modules and HART connectors for efficient field use.
