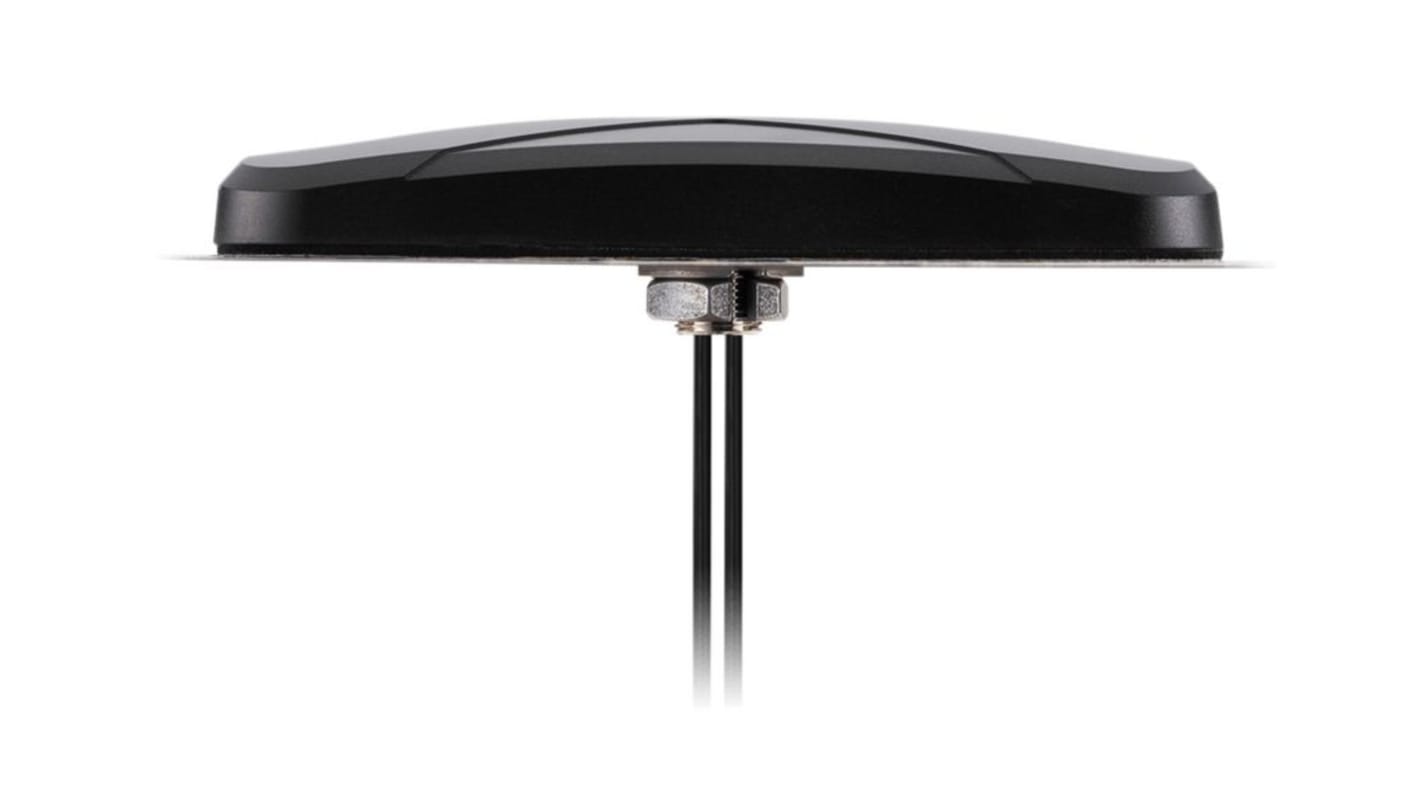

Taoglas MA412.A.BI.003 T-Bar Multiband Antenna with SMA Male Connector, 2G (GSM/GPRS), 3G (UTMS), 4G (LTE)
- RS Stock No.:
- 283-6254
- Distrelec Article No.:
- 302-20-266
- Mfr. Part No.:
- MA412.A.BI.003
- Brand:
- Taoglas
Subtotal (1 unit)*
£183.45
(exc. VAT)
£220.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 41 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £183.45 |
*price indicative
- RS Stock No.:
- 283-6254
- Distrelec Article No.:
- 302-20-266
- Mfr. Part No.:
- MA412.A.BI.003
- Brand:
- Taoglas
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Taoglas | |
| RF Protocols | 2G (GSM/GPRS), 3G (UTMS), 4G (LTE) | |
| Frequency Range | 698 → 803 MHz, 824 → 894 MHz, 880 → 960 MHz, 1710 → 1880 MHz, 1850 → 1990 MHz, 1920 → 2170 MHz, 2490 → 2690 MHz, 3300 to3600 MHz | |
| Connector Type | SMA Male | |
| Antenna Mounting Type | Screw | |
| Internal/External | External | |
| Antenna Physical Form | T-Bar | |
| Series | MA412 | |
Select all | ||
|---|---|---|
Brand Taoglas | ||
RF Protocols 2G (GSM/GPRS), 3G (UTMS), 4G (LTE) | ||
Frequency Range 698 → 803 MHz, 824 → 894 MHz, 880 → 960 MHz, 1710 → 1880 MHz, 1850 → 1990 MHz, 1920 → 2170 MHz, 2490 → 2690 MHz, 3300 to3600 MHz | ||
Connector Type SMA Male | ||
Antenna Mounting Type Screw | ||
Internal/External External | ||
Antenna Physical Form T-Bar | ||
Series MA412 | ||
- COO (Country of Origin):
- TW
The Storm 2in1 Screw mount Antenna is a high-performance LTE MIMO antenna designed for worldwide telematics applications. With its low-profile design and IP67 enclosure, this antenna delivers powerful 4G LTE MIMO technology while also providing coverage for 3G and 2G bands. It is perfect for applications such as HD video over LTE, first responder and emergency services, intelligent transport systems, internet of things (IoT) market, high definition video broadcast systems, wireless LTE MIMO M2M devices, and digital signage. With customizable cable length and connector types, this antenna offers flexibility to suit various installation requirements. It is compliant with the EMC directive 2014/30/EU and RoHS regulations, ensuring its quality and reliability.
Low profile and aerodynamic design for easy installation
IP67 waterproof rating for harsh environments
Supports worldwide 4G bands, including 3G and 2G
High efficiency and high gain MIMO antennas for optimal performance
Customizable cable length and connector types for flexible installation
Conforms to the EMC directive 2014/30/EU and RoHS compliant for quality assurance
IP67 waterproof rating for harsh environments
Supports worldwide 4G bands, including 3G and 2G
High efficiency and high gain MIMO antennas for optimal performance
Customizable cable length and connector types for flexible installation
Conforms to the EMC directive 2014/30/EU and RoHS compliant for quality assurance
