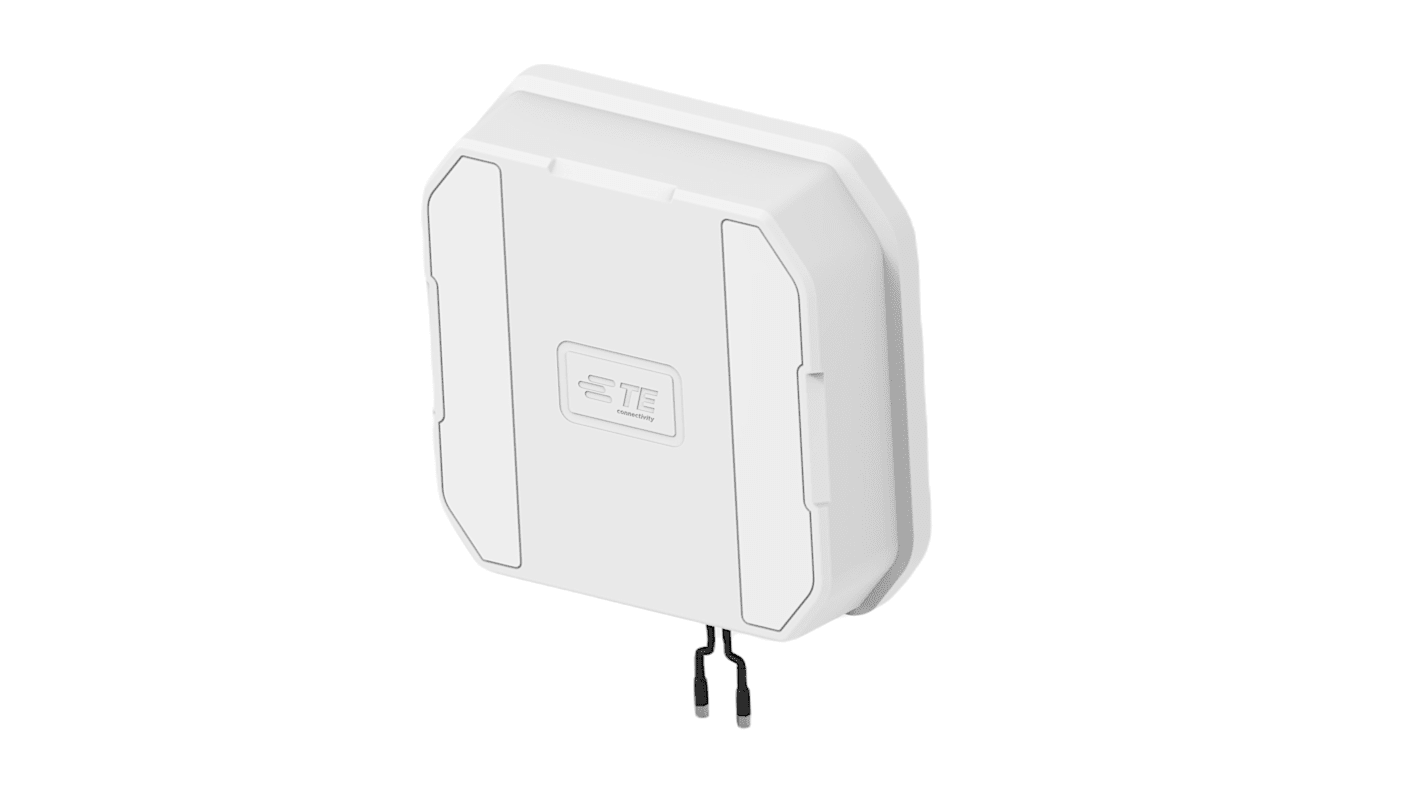

TE Connectivity PAS61609-500SMM Panel Multi-Band Antenna with SMA Connector, 5G

View all Multi-Band Antennas

Subtotal (1 unit)*

£368.73

(exc. VAT)

£442.48

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£368.73

*price indicative

RS Stock No.:
194-188
Mfr. Part No.:
PAS61609-500SMM
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

RF Protocols

5G

Frequency Range

617 → 698 MHz, 698 → 960 MHz, 1427 → 1511 MHz, 1690 → 2700 MHz, 3300 MHz, 4200 MHz, 4400 → 6000 MHz

Connector Type

SMA

Antenna Physical Form

Panel

Gain

6dBi

Internal/External

External

Antenna Mounting Type

Panel Mount

Series

PAS61609

Lead Length

0.3m

Antenna Directivity

Directional

Includes Lead

Yes

Connector Gender

Male

COO (Country of Origin):
MY
The TE Connectivity 2x2 RP20 pro High Gain Directional Antennas provide high performance connectivity for current and emerging 4G and 5G frequencies over the 617 to 960 MHz and 1427 to 6000 MHz frequency ranges, when used in conjunction with a cellular router or gateway. They can enhance connections in retail premises, small businesses, remote locations and more, with cellular networks resulting in higher data speed and bandwidth. The 2 and 3 port variants are available with the 3 port models including GNSS coverage. They are suitable for use globally on any cellular network and with any network operator. Available with a choice of integrated cables and connectors to suit cellular/5G routers and gateways from major manufacturers.

Enhances connections with cellular networks resulting in higher data speed and bandwidth
2x2 MIMO Global LTE and 5G coverage of 617 to 960 MHz and 1427 to 6000 MHz
Operates in both CBRS as well as unlicensed 5 to 6 GHz
Covers B11 and B32 bands 1427 to 1522 MHz
Optional GNSS coverage from 3 port option
Extensive mechanical and environmental testing compliant
Matches cellular 5G Gateways from key suppliers
Integrated pigtail cables with a choice of connectors
Wall and pole mounting hardware included
Provides Failover support

Target Markets


5G Fixed Wireless Access for:
Primary connectivity
Failover support
Requires suitable cellular router/gateway in conjunction with antenna

Applications


Enterprise networking
Smart utilities
Retail premises
Office buildings
Construction sites
Remote offices
